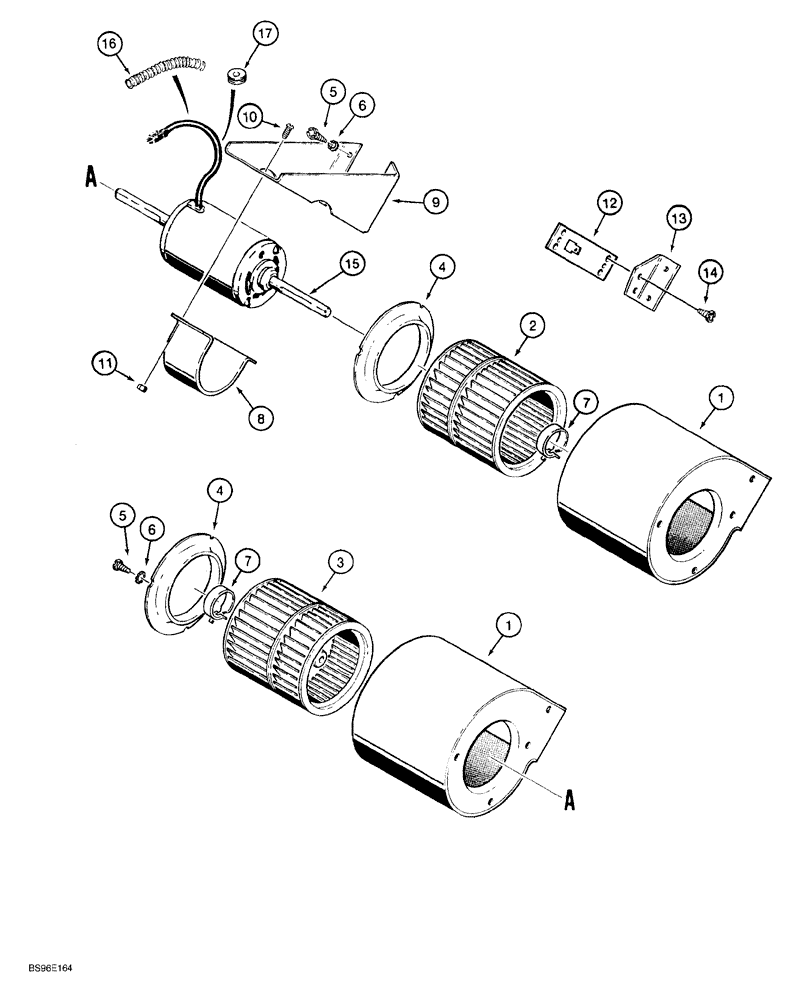

Запчасти Case 650G (4-34) - CAB BLOWER - INSIDE CAB ROOF (04) - ELECTRICAL SYSTEMS

1

F96724

HOUSING

blower fan

2шт.

2

F45020

BLOWER,Fan, RH

FAN blower, right hand

1шт.

3

F45021

BLOWER,Fan

FAN blower, left hand

1шт.

4

F63655

RETAINER

COVER ring, fan end

2шт.

5

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

self tapping, hex washer head, No. 10 - 16 x 1/2 inch

16шт.

6

493-41020

LOCK WASHER,Ext Tooth, #10

16шт.

7

F64936

CLAMP

steel spring, fan retaining

2шт.

8

F44728

CLAMP

, Serial Range: motor-bracket

1шт.

9

F44729

BRACKET

mounting, motor

1шт.

10

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

4шт.

11

231-14409

NUT,#10-24, GB

hex, self locking, NC

4шт.

12

F44900

RESISTOR

12 volt, blower

1шт.

13

R47848

SUPPORT

resistor mounting

1шт.

14

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

self tapping, hex washer head, No. 10 - 16 x 1/2 inch

4шт.

15

R54415

MOTOR, ELECTRIC

blower, with molded terminal, 12 volt

1шт.

16

1999845C1

CONDUIT

convoluted, used on blower motor wire

1шт.

17

96901C1

GROMMET

blower motor wire

1шт.
