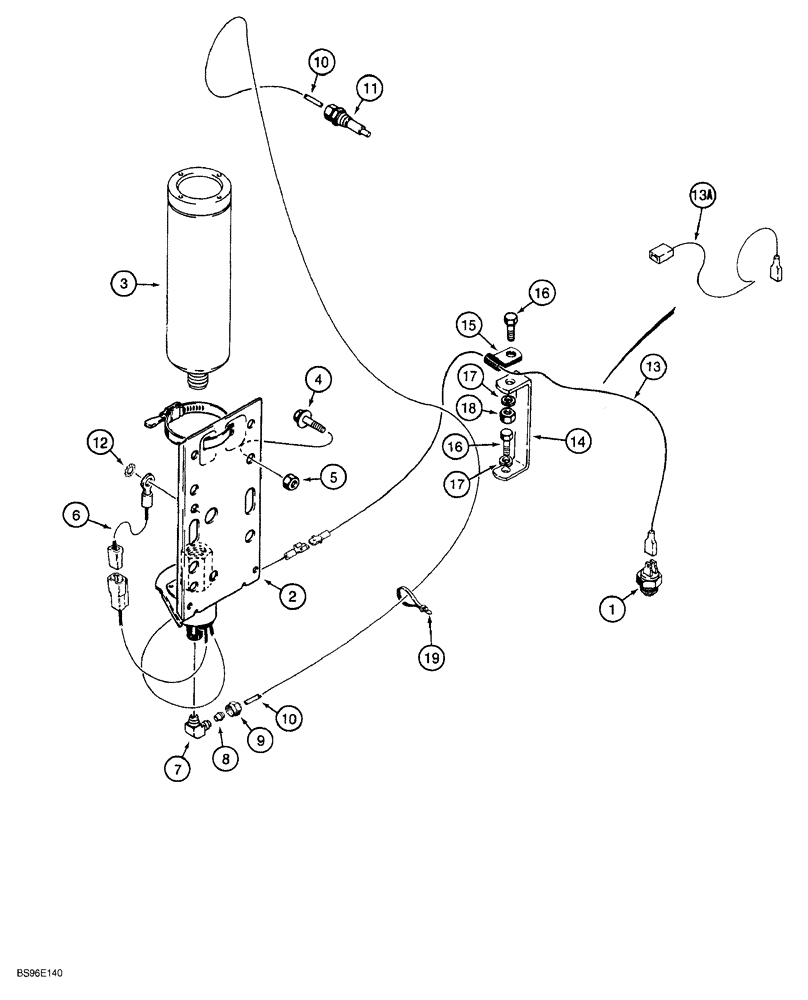

Запчасти Case 650G (4-32) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

A172117

SWITCH

THERMOCOUPLE, in engine cylinder head below intake manifold inlet tube, use sealant on threads

1шт.

2

A172116

VALVE

ASSEMBLY cold start, 3 cc, with bracket

1шт.

254729A1

SET OF PARTS

KIT cap and cord, 1 inch threaded cap, not shown

1шт.

3

A171940

CYLINDER

starting fluid, see note

1шт.

When replacing A171940 cylinder, order 3833593A fron Ship Direct or obtain locally

1шт.

4

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

5

231-1446

NUT,3/8" - 16, Gr 5

2шт.

6

R51632

ELECTRICAL WIRE

WIRE ground, to valve mounting bracket

1шт.

7

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

ELBOW, , 1/8 tube OD, Incl. Ref 8 & 9 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

8

222-650

SLEEVE,1/8" Tube, Comp

Tapered

1шт.

9

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

hex, 1/8" tube OD

1шт.

10

A149565

TUBE

nylon, 381 mm (15 inch) long, cut from A138483 bulk

1шт.

11

A172900

NOZZLE CAP

ASSEMBLY atomizer, cold start injection, component parts not serviced separately, use sealant on threads

1шт.

12

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

13

R57435

ELECTRICAL WIRE

WIRE cold start, valve to thermocouple, with male blade terminal at valve, if used

1шт.

13a

182448A1

ELECTRICAL WIRE

WIRE cold start, 380 mm (15 inch) long, valve to thermocouple, with Packard connector at valve, if used

1шт.

14

R50427

BRACKET

stand off, mounts to top of engine

1шт.

15

D43839

CLAMP

P-style, 1/8 inch diameter

1шт.

16

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

17

892-11010

LOCK WASHER,M10

2шт.

18

825-1410

NUT,M10, Cl 8

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

A138483

TUBE

nylon, 2515 mm (99 inch) long

1шт.
