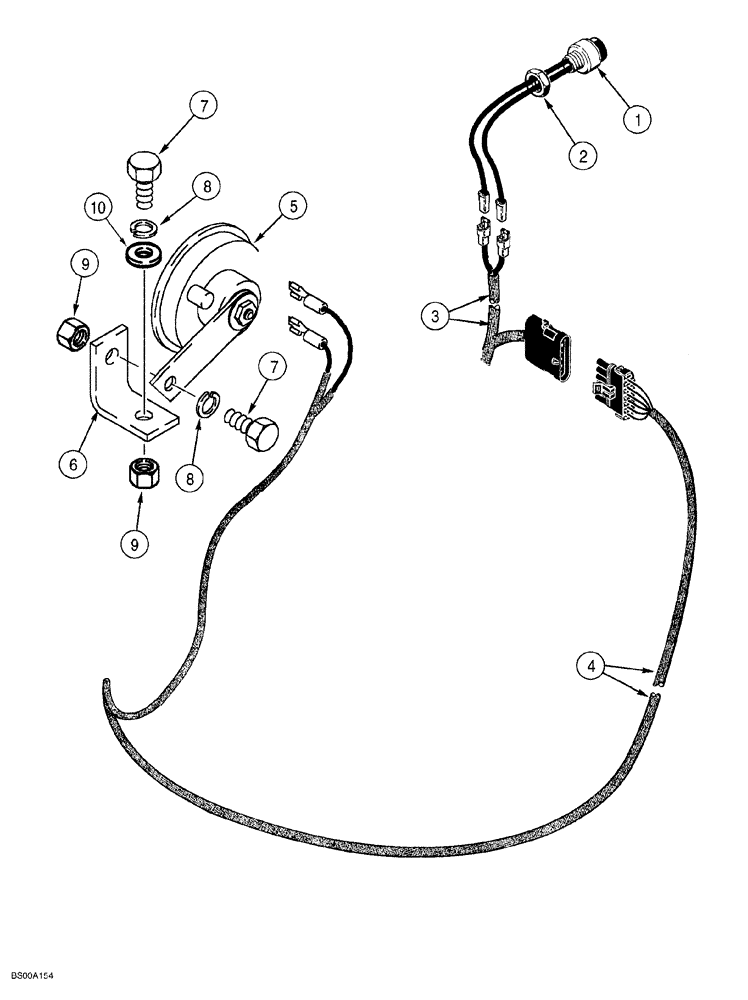

Запчасти Case 650G (4-31A) - HORN (MODELS WITH ONE HORN) (04) - ELECTRICAL SYSTEMS

1

R58727

SWITCH

push button, includes harness connecting wires

1шт.

2

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

3

107226A1

HARNESS

rear wiring, see Fig. 4-14 for continuation of harness

1шт.

4

255725A2

HARNESS

front wiring, see Fig. 4-12 for continuation of harness

1шт.

5

237582A1

HORN

12 volt

1шт.

6

341258A1

BRACKET

mounting, mounts to radiator brace, see Fig. 9-26 Ref. 38

1шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

2шт.

10

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.
