(4-30) - HORN (MODELS WITH TWO HORNS)

Запчасти Case 650G (4-30) - HORN (MODELS WITH TWO HORNS) (04) - ELECTRICAL SYSTEMS

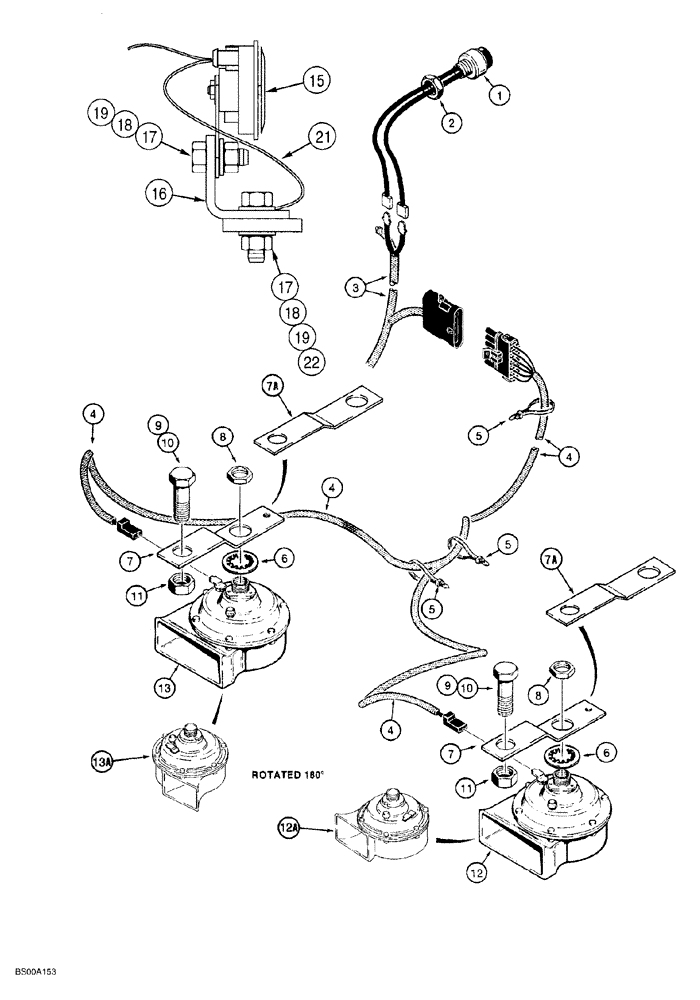

Схема запчастей Case 650G - (4-30) - HORN (MODELS WITH TWO HORNS) (04) - ELECTRICAL SYSTEMS
17
9
12a
2
13
19
7a
1
7
4
12
8
21
15
10
5
5
17
18
7
11
4
6
16
6
13a
3
18
5
22
10
8
7a
9
19
4
4
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R58727

SWITCH

push button

1шт.

2

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

3

107226A1

HARNESS

rear wiring, see Fig. 4-14 for continuation of harness

1шт.

4

126269A1

HARNESS

front wiring, see Fig. 4-12 for continuation of harness, no longer available, order 256124A1

1шт.

4

256124A1

HARNESS

front wiring, see Fig. 4-12 for continuation of harness, Prior to Crawler P.I.N. JJG02164

1шт.

4

255725A1

HARNESS

front wiring, see Fig. 4-12 for continuation of harness, Crawler P.I.N. JJG0216449 and after

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

3шт.

6

493-21078

LOCK WASHER,Int Tooth, 3/4"

internal tooth, 3/4 inch

2шт.

7

R39064

BRACKET, SUPPORTING

mounting, horn, used with Ref. 12 and 13

2шт.

7a

284861A1

BRACKET

mounting, horn, used with Ref. 12A and 13A

2шт.

8

L30866

LOCK NUT

hex, special

2шт.

9

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

hex, 3/4 NC x 1-1/2 inch, used without ROPS canopy brush guards

2шт.

10

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Used with ROPS canopy brush guards

2шт.

11

425-1012

NUT,3/4"-10, G5

2шт.

12

R45962

HORN

"F" note, 12 volt, left hand, Delco Remy, no longer available, order (horn kit) 345835A1

1шт.

12a

278557A1

HORN

"F" note, 12 volt, left hand, Spartan, if used

1шт.

When stock is exhausted order 345835A1 horn service kit which includes the 7-14310 Instruction Sheet

1шт.

13

D123205

HORN

"A" note, 12 volt, right hand, Delco Remy, no longer available, order (horn kit) 345835A1

1шт.

13a

278556A1

HORN

"A" note, 12 volt, right hand, Spartan, if used

1шт.

When stock is exhausted order 345835A1 horn service kit which includes the 7-14310 Instruction Sheet

1шт.

345835A1

KIT

horn, Includes: Ref. 15 - 22

1шт.

15

237582A1

HORN

12 volt

1шт.

16

341258A1

BRACKET

mounting, mounts to radiator brace, see Fig. 9-26 Ref. 38

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

425-105

NUT,5/16"-18, G5

2шт.

19

492-11031

LOCK WASHER,5/16"

2шт.

20

278828A1

HARNESS

WIRE ground, horn to harness, not used on this model, not shown

1шт.

21

341260A1

HARNESS

WIRE ground, horn ground

1шт.

22

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.
