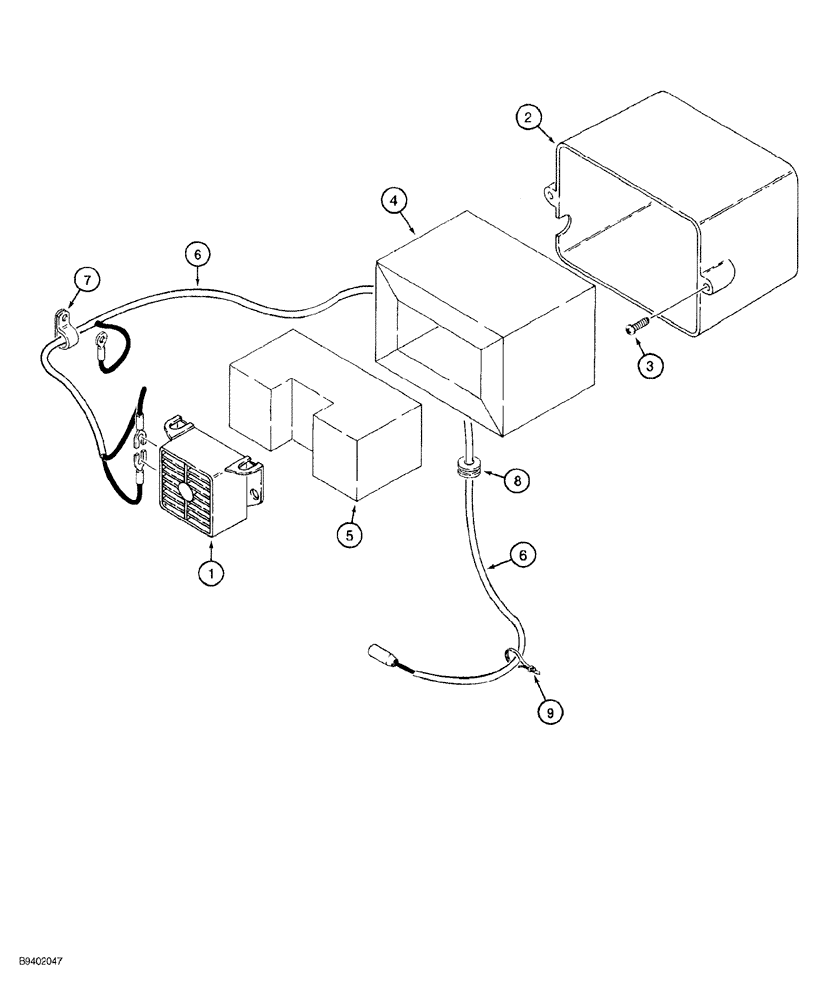

Запчасти Case 650G (4-28) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

L112318

ALARM

backup, mounted on rear access door

1шт.

2

R50647

BOX

COVER plastic, backup alarm

1шт.

3

261-55712

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

4

R50648

FOAM

SEAL

1шт.

5

R51815

PAD

foam, 51 (2) x 64 (2-1/2) x 254 mm (10 inch) long, cut a double thickness from R30870 bulk

1шт.

6

107227A1

ELECTRICAL WIRE

WIRE backup alarm, with ground, see figure 6-18, Ref. 46 for pressure switch

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Ground wire, uses rear door hinge mounting hardware

1шт.

8

A23870

GROMMET

backup alarm wire, at seat mounting angle

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

R30870

PAD

bulk, 1372 (54) x 1829 (72) x 25 mm (1 inch) thick

1шт.
