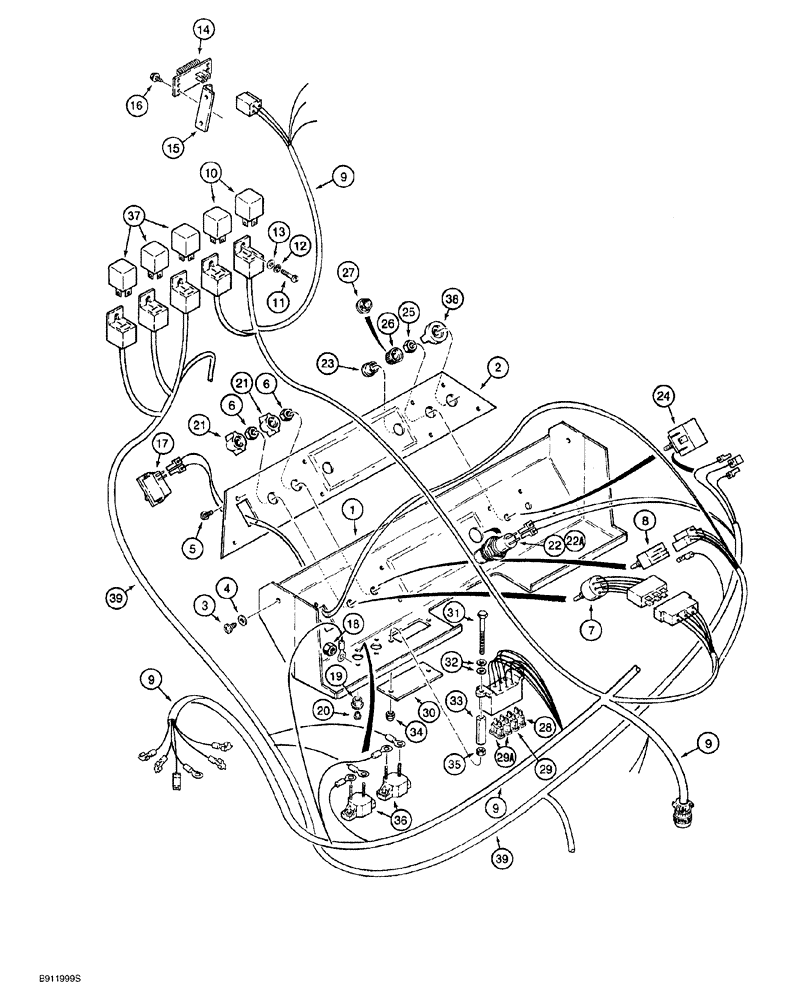

Запчасти Case 650G (4-22) - CAB CONTROL PANEL AND WIRING (04) - ELECTRICAL SYSTEMS

1

1999459C1

BRACKET

control panel

1шт.

2

1999652C1

BEZEL

PLATE decal mounting, control panel, for 1999646C1 decal, see Fig. 9-84, used on models with brown trim

1шт.

2

198996A1

BEZEL

PLATE decal mounting, control panel, for 1999646C1 decal, see Fig. 9-84, used on models with gray trim

1шт.

3

161-114

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 5/8"

hex socket button head, 1/4 NC x 5/8 inch

6шт.

4

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch

6шт.

5

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

8шт.

6

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining, 7/16 inch NC, switch

2шт.

7

92115C2

SWITCH

windshield wipers

1шт.

8

168822C2

SWITCH

blower

1шт.

9

1546444C1

HARNESS

cab lamps and accessories

1шт.

10

1983394C2

RELAY

mini, 12 volt, electrical accessories

2шт.

11

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

12

492-11010

LOCK WASHER,#10

2шт.

13

495-31022

WASHER,#10

2шт.

14

F44900

RESISTOR

12 volt, blower speeds

1шт.

15

R47848

SUPPORT

resistor mounting, mounts to blower housing

1шт.

16

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

self tapping, hex washer head, No. 10 - 16 x 1/2 inch

4шт.

17

F45393

SWITCH

rocker, dome lamp

1шт.

18

232-1446

NUT,3/8"-16, GC

Harness to ground stud

1шт.

19

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, if used

2шт.

20

353-421

PLUG,Dome, .187" hole, Nylon

If used

4шт.

21

111282C1

KNOB

control, blower and wiper

2шт.

22

121815C91

LAMP

ASSEMBLY indicator, air conditioning pressure warning, amber lens, Includes: Ref. 22A

1шт.

22a

200557H1

BULB,C2V, #1815, 14V

No. 1815

1шт.

23

353-407

PLUG,Dome, .687" hole, Nylon

button, 11/16 inch, if used

1шт.

24

A187954

SWITCH

SWITCH - air conditioning

1шт.

25

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining, 7/16 inch NC

1шт.

26

1999846C1

KNOB

switch, air conditioning

1шт.

27

1999574C1

PLUG

nylon, 1/2 inch diameter, if used

1шт.

28

A149803

FUSE,25 Amp

clear, 25 ampere

1шт.

29

A149801

FUSE,Lt Blue, 15 Amp

light blue, 15 ampere

1шт.

29a

A149800

FUSE,10 Amp

red, 10 ampere

2шт.

30

1999420C1

COVER

fuse block

1шт.

31

1999829C1

SCREW

hex, special, No. 10 NC x 2-3/4 inch

2шт.

32

495-31022

WASHER,#10

4шт.

33

1999515C1

SPACER

fuse block

2шт.

34

129-642

CROWN NUT,Crown, #10-24

dome, No. 10 NC

2шт.

35

230-42409

NUT,#10-24, GA

hex, self locking, No. 10 NC

2шт.

36

1546447C1

BREAKER

circuit, 20 amperes, air conditioning condenser blowers

2шт.

37

1983394C2

RELAY

mini, 12 volt, heat and air conditioning

3шт.

38

1994720C1

KNOB

push on, heater control

1шт.

39

1546446C1

HARNESS

air conditioning

1шт.
