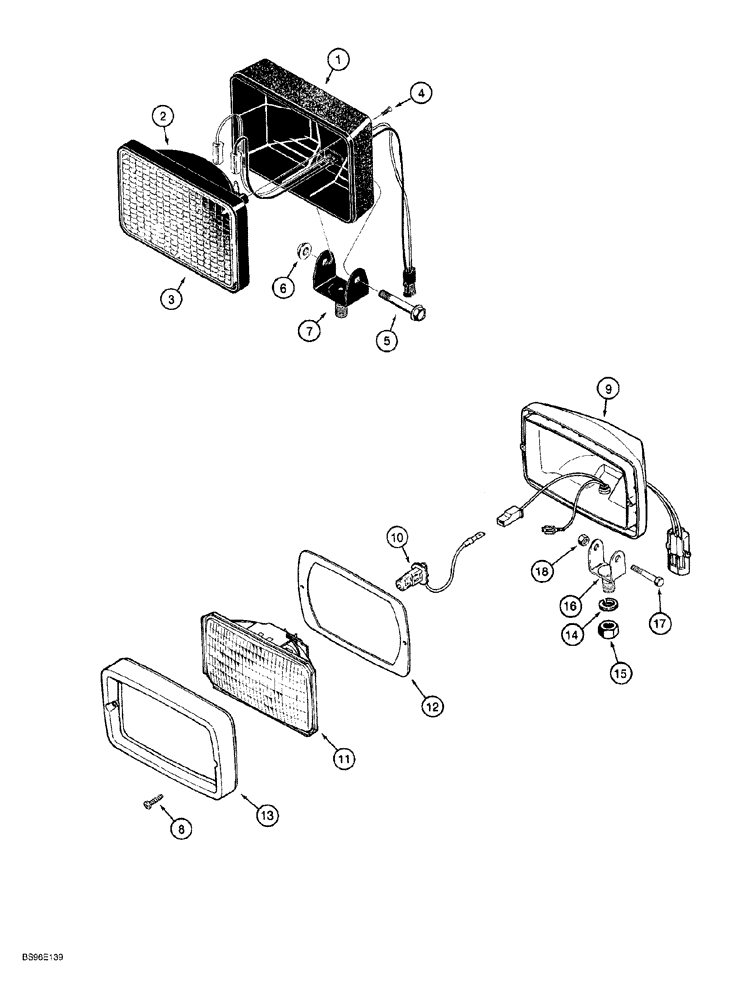

Запчасти Case 650G (4-20) - LAMP ASSEMBLY - FRONT AND REAR FLOOD (04) - ELECTRICAL SYSTEMS

D137294

LIGHT ASSY.

front driving and rear flood, canopy models, consists of Refs. 1 - 7, no longer available, order ZAA7189850, canopy models, Includes: Ref. 1 - 7

4шт.

ZAA7189850

HEADLIGHT

ASSEMBLY front driving and rear flood, canopy models, Includes: Ref. 1 - 7

4шт.

1

NSS

NOT SOLD SEPARAT

SHELL lamp, canopy models

1шт.

2

NSS

NOT SOLD SEPARAT

RETAINER shell, canopy models

1шт.

3

F45230

HEADLIGHT

halogen, canopy models

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

Canopy models

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

Canopy models

1шт.

6

230-4215

NUT,5/16"-18, GA

Hex, Canopy models

1шт.

7

N8347

SUPPORT

lamp, replaces N14626, canopy models

1шт.

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

ASSEMBLY flood, front driving and rear flood, cab models, Includes: Ref. 8 - 18

4шт.

8

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

Retainer, housing, cab models

2шт.

9

NSS

NOT SOLD SEPARAT

BASE lamp, cab models

1шт.

10

1312210C2

BULB,Halogen H3, 12V, 55W

Cab models

1шт.

11

276498A1

LENS

reflector, lamp, replaces 1964807C1, cab models, Includes: Ref. 12

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET lens, cab models

1шт.

13

1964806C1

BEZEL

HOUSING lamp, front, cab models

1шт.

14

892-11010

LOCK WASHER,M10

Cab models

1шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

Cab models

1шт.

16

A187915

BRACKET

mounting, cab models

1шт.

17

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

Cab models

1шт.

18

832-41308

NUT,M8 x 1.25, Cl 10

hex, self locking, 8 mm - 1.25, class 10.9, cab models

1шт.
