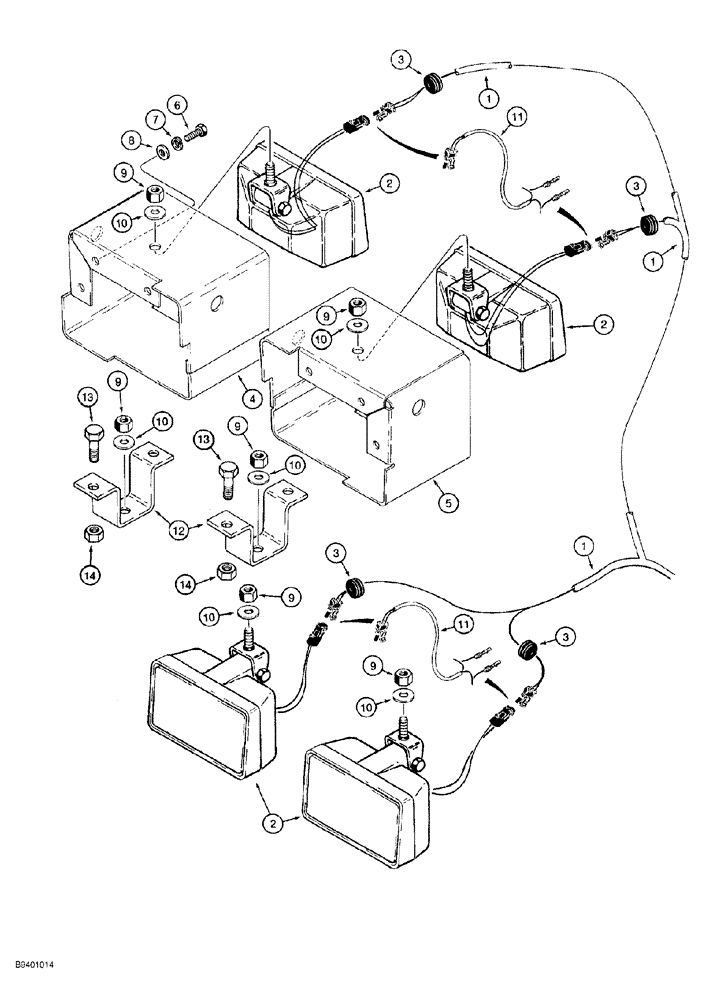

Запчасти Case 650G (4-18) - LAMPS AND WIRING - MODELS WITH ROPS CAB, WITH OR WITHOUT SCREEN (04) - ELECTRICAL SYSTEMS

1

1546444C1

HARNESS

cab lamps and accessories, see Fig. 4-22 for cab harness and connections

1шт.

2

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

ASSEMBLY, flood, front and rear, parts list Fig. 4-20

4шт.

3

1546464C1

GROMMET

harness

4шт.

4

1999472C1

GUARD

BRACKET lamp mounting, left hand front

1шт.

5

1999471C1

GUARD

BRACKET lamp mounting, right hand front

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

7

492-11038

LOCK WASHER,3/8"

6шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

6шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

11

1546449C1

HARNESS

WIREadapter, Serial Range: lamp-harness

4шт.

12

102181A1

LARGE PLATE

PLATE, LARGE BRACKET lamp mounting, models with a brush guard, used on models with brown trim

2шт.

12

182893A1

BRACKET

lamp mounting, models with a brush guard, used on models with gray trim

2шт.

13

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

14

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

4шт.
