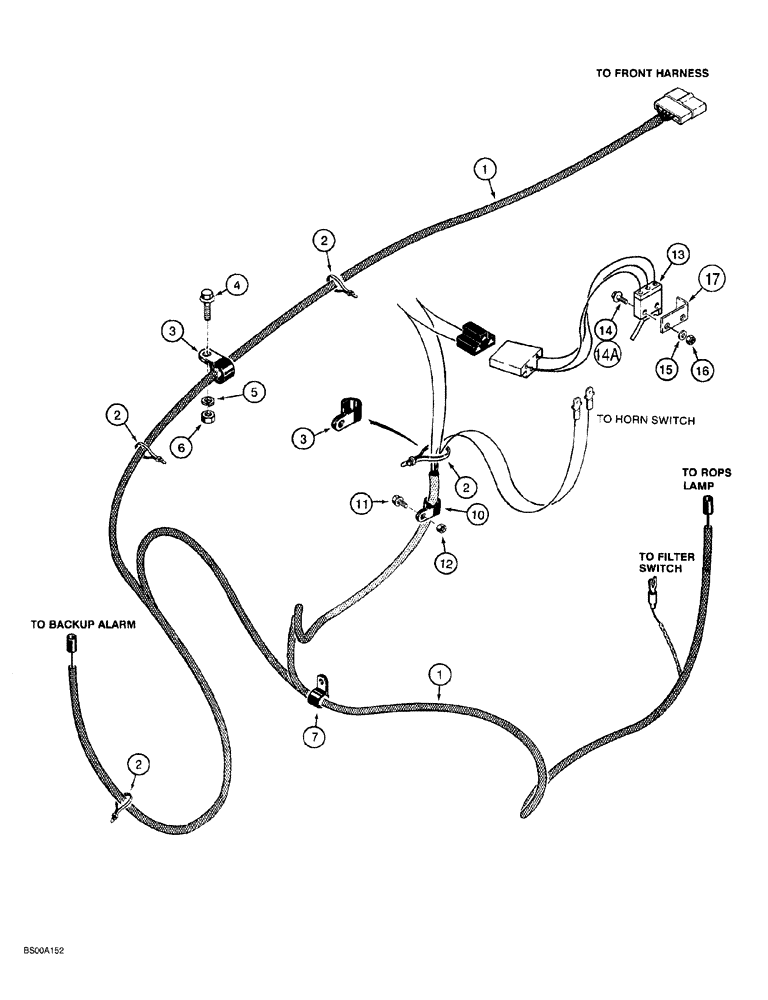

Запчасти Case 650G (4-14) - REAR WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

107226A1

HARNESS

rear wiring

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, rear harness

1шт.

3

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

2шт.

4

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

10

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type

1шт.

11

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

12

425-105

NUT,5/16"-18, G5

1шт.

13

1343288C2

LIMIT SWITCH

neutral start, replaces 1344288C1

1шт.

14

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

1-2шт.

14a

440-10620

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-1/4"

machine, pan Phillips, No. 6 NC x 1-1/4 inch, if used

1шт.

15

495-21019

WASHER,#8

1-3шт.

16

231-14106

NUT,#6-32, GB

hex, self locking, No. 6 NC

2шт.

17

310719A1

COVER

neutral switch

1шт.
