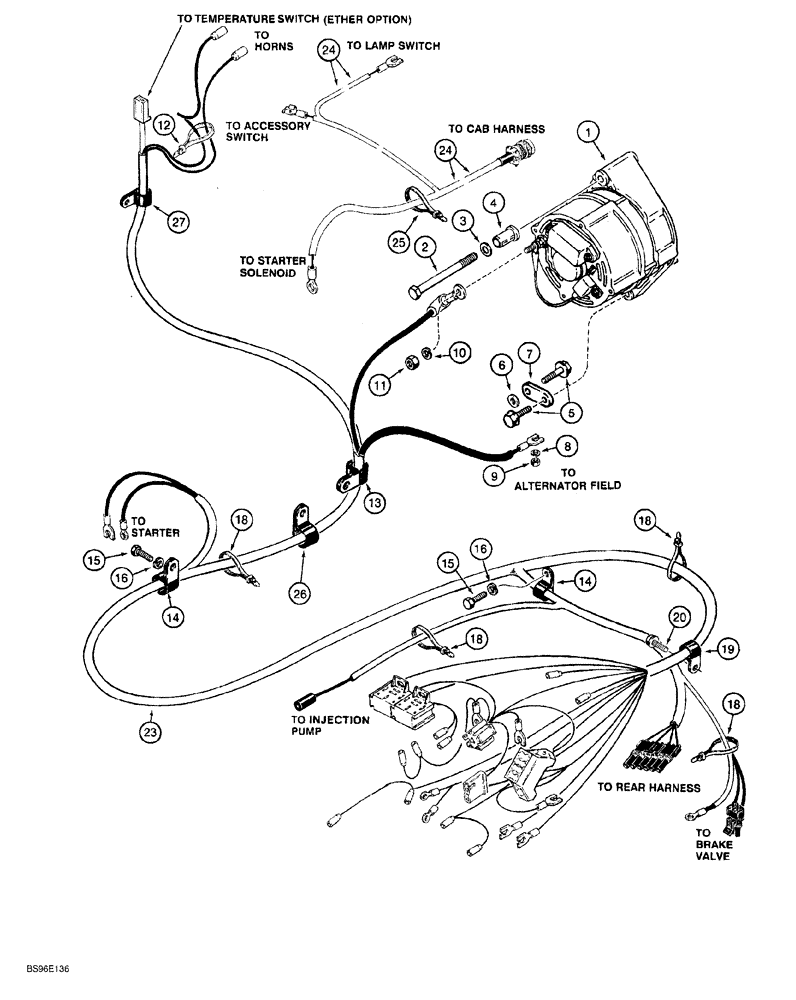

Запчасти Case 650G (4-12) - FRONT WIRING HARNESS AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY, for correct assembly and components, see Figs. 4-4 and 4-5A

1шт.

2

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

4

J902469

SPACER

alternator mounting, upper

1шт.

5

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

Heavy

2шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

flat, special, 3/8 inch

1шт.

7

J903089

SUPPORT

alternator mounting

1шт.

8

892-11008

LOCK WASHER,8mm ID

1шт.

9

824-1408

NUT,M8 x 1.25, Cl 10

hex, 8 mm - 1.25

1шт.

10

892-11005

LOCK WASHER,M5

1шт.

11

825-1405

NUT,M5, Cl 8

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

1шт.

14

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type

2шт.

15

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

2шт.

16

892-11012

LOCK WASHER,M12

2шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

4шт.

19

D34033

CLAMP

P-type, 1 - 3/16 inch ID

1шт.

20

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

1шт.

23

126269A1

HARNESS

front wiring, see Fig. 4-9A for continuation of harness, no longer available, order 256124A1

1шт.

23

256124A1

HARNESS

front wiring, see Fig. 4-9A for continuation of harness, Prior to Crawler P.I.N. JJG0216449

1шт.

23

255725A1

HARNESS

front wiring, see Fig. 4-9A for continuation of harness, Crawler P.I.N. JJG0216449 and after, used on models with two horns

1шт.

23a

255725A2

HARNESS

front wiring, see Fig. 4-9A for continuation of harness, used on models with one horn, not shown

1шт.

24

R58600

HARNESS

cab models, starter solenoid to main cab harness

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

4шт.

26

49836

CLAMP

P-type, 1/2 inch ID

1шт.

27

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type

1шт.
