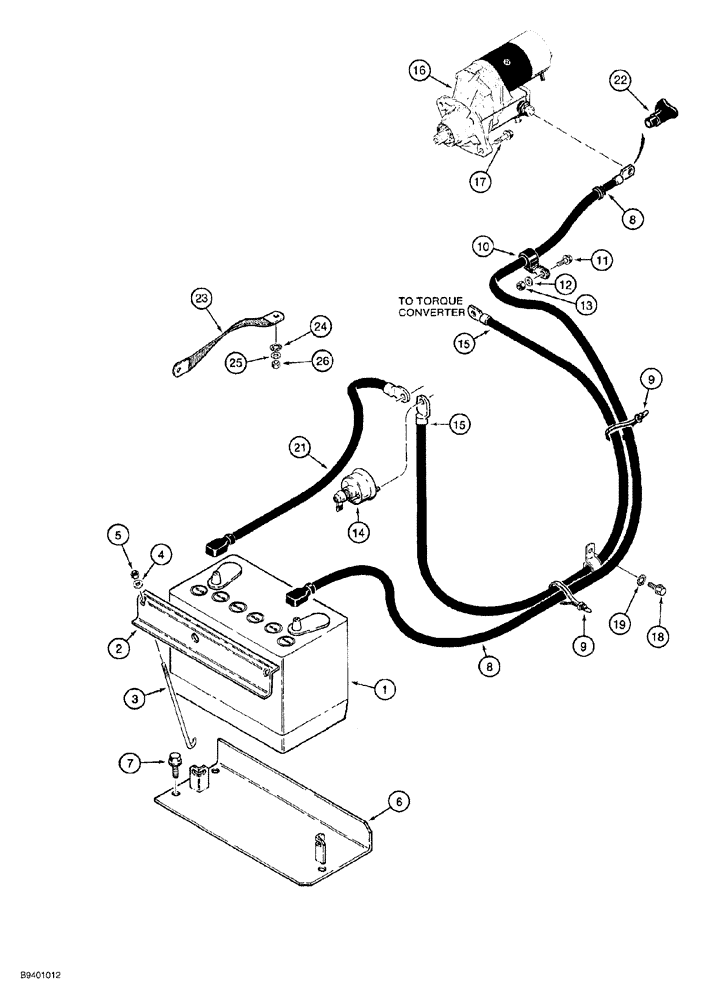

Запчасти Case 650G (4-10) - BATTERY MOUNTING, CABLES, AND STARTER (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

12V

1шт.

2

R51648

LARGE PLATE

PLATE, LARGE BRACKET battery retaining

1шт.

3

R27652

ROD

BOLT J-type

2шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

5

231-1445

NUT,5/16"-18, GB

2шт.

6

R57054

SUPPORT

PLATE battery mounting

1шт.

7

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

3шт.

8

R57555

CABLE

battery, Serial Range: positive,-starter

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

10

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

twist, positive battery cable

1шт.

11

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

12

495-81127

WASHER,0.39" ID x 0.75" OD x 0.07" Thk

flat, 25/64 x 3/4 x 1/16 inch

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

R52278

SWITCH

master disconnect

1шт.

15

R58075

CABLE

battery ground, includes clamp, use torque converter mounting, Serial Range: hardware-ground

1шт.

16

1987559C1

STARTING MOTOR

ASSEMBLY engine, new, parts list Fig. 4-2

1шт.

16

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 1987559C1

1шт.

16

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

16

104452A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

16

104452A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

17

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

heavy hex flange, special, starter mounting

2шт.

18

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

1шт.

19

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

21

R47204

NEG BATTERY CABLE

with loom

1шт.

22

L126713

BOOT

plastic, battery cable at starter

1шт.

23

D73383

STRAP

ground, cab models, uses existing master disconnect switch hardware

1шт.

24

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

25

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special, 11 x 25 x 2 mm, replaces L126317 copper

1шт.

26

L127555

NUT,Hex, 3/8" - 16

hex, brass, special, 3/8 inch NC, replaces L126318 copper

1шт.
