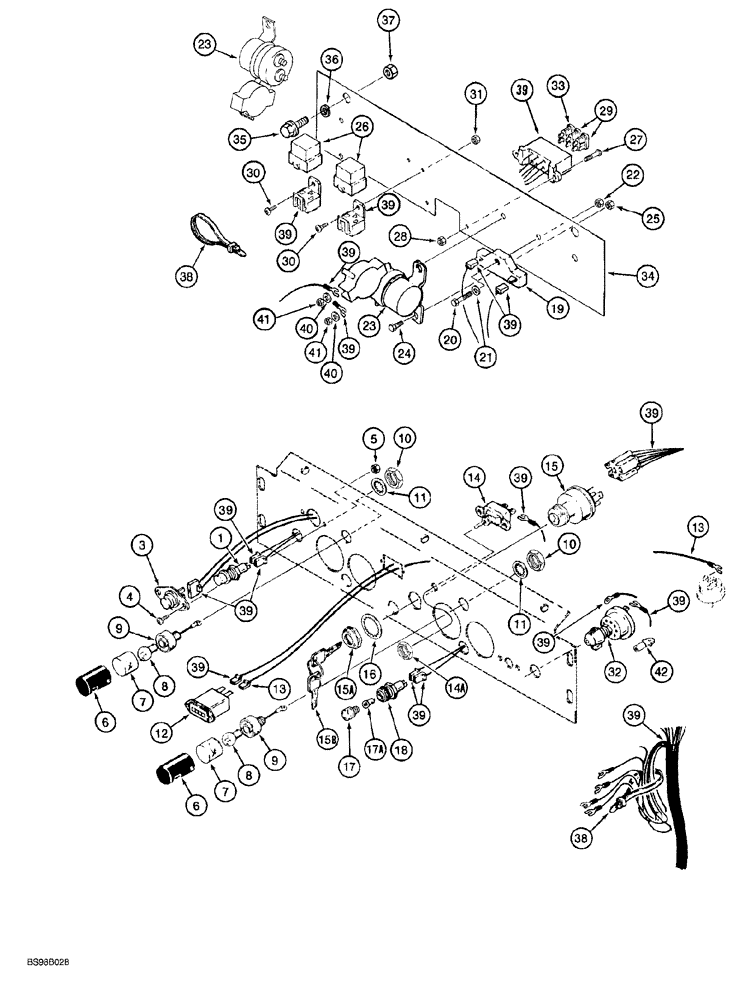

Запчасти Case 650G (4-08) - INSTRUMENT PANEL WIRING (04) - ELECTRICAL SYSTEMS

1

121815C91

LAMP

ASSEMBLY indicator, alternator

1шт.

2

200557H1

BULB,C2V, #1815, 14V

No. 1815, not shown

1шт.

3

D67872

SWITCH

push button, cold start

1шт.

4

140-105

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

5

86625057

NUT,#10-24, GB

2шт.

185383A1

ASSEMBLY

KIT instrument panel lamp, includes instructions, replaces D35815, Includes: Ref. 6 - 10A

2шт.

6

D37918

COVER

lamp

1шт.

7

D37919

LENS

lamp

1шт.

8

71421

BULB,R5W, 12V, 5W

lamp, No. 67, replaces No. 623 bulb which is not used

1шт.

9

NSS

NOT SOLD SEPARAT

BODY lamp, includes wire

1шт.

10

D39095

NUT

special

1шт.

10a

377630C1

CONNECTOR, ELEC

CONNECTOR lamp assembly, not shown

1шт.

11

493-21065

LOCK WASHER,Int Tooth, 5/8"

internal tooth lock, 5/8 inch

2шт.

12

L107631

METER

HOUR engine

1шт.

13

R27252

HARNESS

WIRE hourmeter to pressure switch

1шт.

14

R50405

SWITCH

toggle, fuel shutoff, Includes: Ref. 14A

1шт.

14a

N13588

SPECIAL NUT

special

1шт.

R57312

IGNITION SWITCH

ASSEMBLY, ignition, no longer available, order D134737 switch assembly, Includes: Ref.

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY ignition, includes keys, if used, Includes: Ref.

1шт.

282775A1

IGNITION SWITCH

ASSEMBLY, includes keys 1964831C2, if used, not shown, Includes: Ref. 15 - 15C

1шт.

15

NSS

NOT SOLD SEPARAT

SWITCH ignition

1шт.

15a

101760A1

SPECIAL NUT

hex, special, brass, R57312 switch

1шт.

15a

A77314

NUT

hex, special, chrome plated, D134737 or 282775A1 switch

1шт.

15b

A77313

SET OF 2 KEYS

metal without padding; R57312 or D134737 switch

1шт.

15c

1964831C2

IGNITION KEY

padded, 282775A1 switch, not shown

1шт.

16

493-21104

LOCK WASHER,Int Tooth, 1"

1шт.

109369C91

LIGHT ASSY.

indicator, filter, Includes: Ref. 17 - 18

1шт.

17

71652C1

LENS

lamp

1шт.

17a

200557H1

BULB,C2V, #1815, 14V

No. 1815

1шт.

18

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

19

F22316

RESISTOR,75 Ohms 0.2 Amps DC

75 ohm

1шт.

21

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

22

231-1444

NUT,1/4"-20, GB

1шт.

23

120399A1

RELAY

switch, 12 volt (2) used on models with emission engines

1-2шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2-4шт.

25

231-1444

NUT,1/4"-20, GB

2-4шт.

26

D128310

RELAY

30 ampere, brake

2шт.

27

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

28

86625057

NUT,#10-24, GB

2шт.

29

A149800

FUSE,10 Amp

red, 10 ampere

2шт.

30

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

31

86625057

NUT,#10-24, GB

2шт.

32

R54064

IGNITION SWITCH

lamp

1шт.

33

A149804

FUSE

light green, 30 ampere

1шт.

34

R58073

PANEL

instrument mounting, Prior to Crawler P.I.N. JJG0216449, not shown

1шт.

34

255688A1

PANEL

instrument mounting, Crawler P.I.N. JJG0216449 and after, shown

1шт.

35

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

36

492-11038

LOCK WASHER,3/8"

2шт.

37

425-106

NUT,3/8"-16, Cl 5

2шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

39

126269A1

HARNESS

front wiring, see Fig. 4-12 for continuation of harness, no longer available, order 256124A1

1шт.

39

256124A1

HARNESS

front wiring, see Fig. 4-12 for continuation of harness, Prior to Crawler P.I.N. JJG0216449

1шт.

39

255725A2

HARNESS

front wiring, see Fig. 4-12 for continuation of harness, Crawler P.I.N. JJG0216449 and after, replaces 255725A1

1шт.

40

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2-4шт.

41

825-1406

NUT,M6, Cl 8

2-4шт.

42

223-74

SPADE TERMINAL

straight spade, SAE No. H203, No. 8, instrument panel lamps to flood lamp switch, used on models with ROPS canopy

1шт.

20

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
