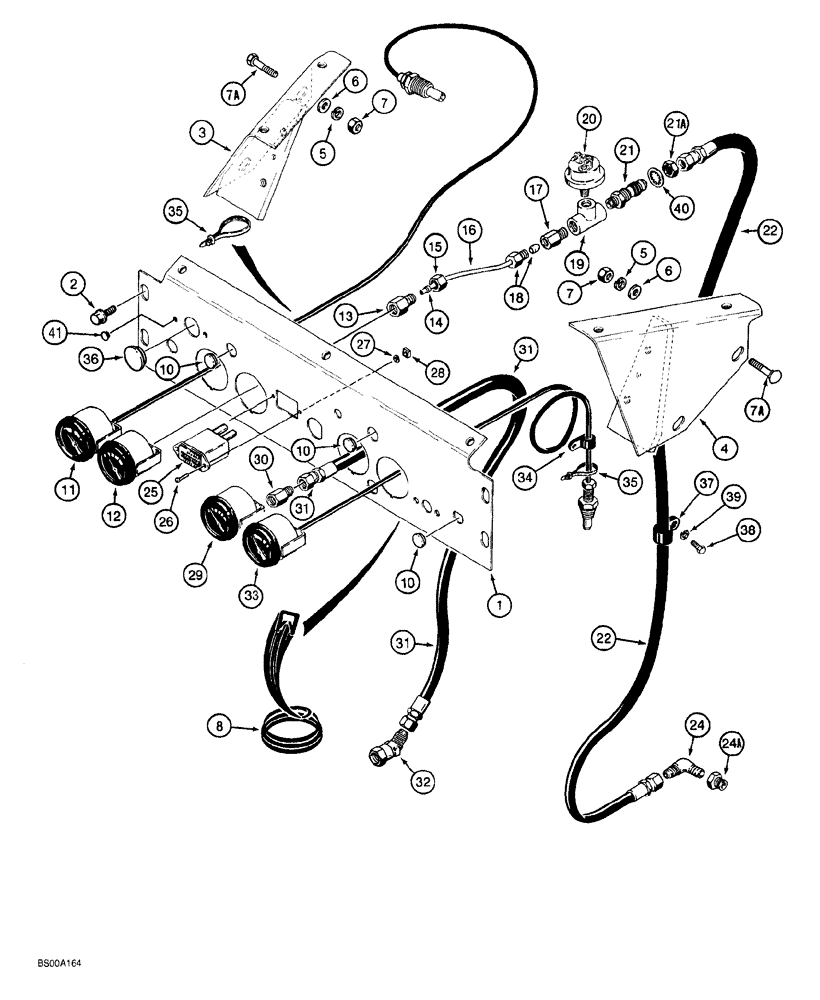

Запчасти Case 650G (4-06) - INSTRUMENT PANEL AND GAUGES (04) - ELECTRICAL SYSTEMS

1

R58269

PANEL, INSTRUMENTS

PANEL, INSTRUMENT includes decal, see Fig. 9-82 for decal, used on models with brown trim

1шт.

1

184739A1

PANEL ASSY.

instrument, includes decal, see page 9-83 for decal, used on models with gray trim

1шт.

2

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

3

R58274

BRACKET

instrument panel, left-hand

1шт.

4

R58273

BRACKET

instrument panel, right-hand

1шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

7a

33-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

carnage, 3/8 NC x 1-1/4 inch

4шт.

8

R58745

ADHESIVE STRIP

TRIM edge, 825 mm (32-1/2 inch) long

1шт.

10

353-407

PLUG,Dome, .687" hole, Nylon

button, 11/16 inch, used in lamp and lamp switch mounting holes on models without ROPS or cabs

3шт.

11

357042A1

GAUGE

engine temperature, replaces R52133

1шт.

12

357040A1

GAUGE

engine oil pressure, replaces R49132

1шт.

D35091

PIPE FITTING

ADAPTER ASSEMBLY straight, compression, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY adapter

1шт.

14

D37176

SLEEVE

compression

1шт.

15

D37362

TUBE NUT

compression

1шт.

16

R49591

PLASTIC-RUBBER TUBE,3.18 mm OD x 530 mm L

TUBE nylon, 530 mm (20-7/8 inch) long, cut from L60539X bulk tube, see below, engine oil pressure

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER compression, 1/8 tube O.D. x 1/8 inch PT, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

BODY adapter

1шт.

18

222-500

TUBE NUT,5/16" - 24 NPT

hex, 1/8 tube O.D. x 5/16-24 inch, includes sleeve

1шт.

19

217-1160

TEE,1/8"-27 Female

NUT rotor shaft

1шт.

20

D28796

SWITCH

engine oil pressure, see Ref. 13, Fig. 4-8 for electrical connections

1шт.

21

R58667

FITTING

ADAPTER bulkhead

1шт.

21a

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

22

D95117

HOSE

1448 mm (57 inch) long, engine oil pressure

1шт.

24

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

ELBOW, 90 degree, long, 7/16-20 flare x 1/8 inch PT, engine oil pressure, left hand side of engine

1шт.

24a

250838A2

HYD CONNECTOR

M10 x 1/8 inch PT, engine oil pressure, if used

1шт.

25

L107631

METER

HOUR engine

1шт.

L60539X

TUBE

bulk, nylon, 3 (1/8) ID x 4267 mm (168 inch) long, replaces A1 38483

1шт.

26

169-169

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

2шт.

27

492-11005

LOCK WASHER,#5

2шт.

28

224-10005

SQUARE NUT,Sq, #5-40

square, No. 5 NC

2шт.

29

357041A1

GAUGE

transmission oil pressure, replaces 138860A1

1шт.

30

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

straight, 7/16-20 flare x 1/8 inch female PT

1шт.

31

R58666

HOSE ASSY.

762 mm (30 inch) long

1шт.

32

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

1шт.

33

357043A1

GAUGE

torque converter temperature, replaces R54146

1шт.

34

51200330

CLAMP

P-type, uses torque converter mounting hardware

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

36

353-411

PLUG,Dome, 1.000" hole, Nylon

Used if cold start system is not required

1шт.

37

49836

CLAMP

P-type, 1/2 inch ID

1шт.

38

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

1шт.

39

892-11012

LOCK WASHER,M12

1шт.

40

493-21052

LOCK WASHER,Int Tooth, 1/2"

internal tooth lock, 1/2 inch

1шт.

41

353-400

PLUG,Dome, .250" hole, Nylon

If used

2шт.
