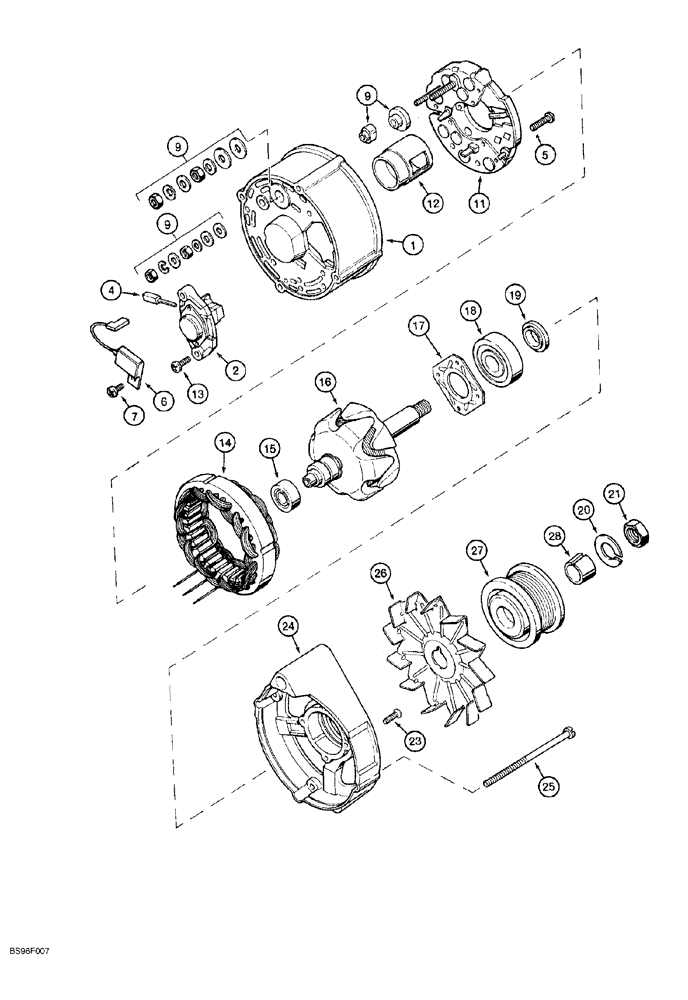

Запчасти Case 650G (4-04) - ALTERNATOR - A187873 - 65 AMPERE (MODELS WITHOUT CAB) (04) - ELECTRICAL SYSTEMS

A187873

ALTERNATOR,12V, 65A

ASSEMBLY, engine, 65 ampere, Includes: Ref. 1 - 25

1шт.

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 65A

1шт.

1

A187903

COVER

HOUSING collector ring end

1шт.

2

A187906

VOLTAGE REGULATOR

voltage, Includes: Ref. 4

1шт.

4

1964968C1

COMMUTATOR BRUSH

alternator

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

with washer, rectifier bridge retaining, replaces A187898

2шт.

6

3079134R1

CAPACITOR

alternator

1шт.

7

1964969C1

SCREW

Special, capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET hardware, terminal

1шт.

11

A187917

RECTIFIER

alternator

1шт.

12

A187899

INNER SHIELD

SHIELD alternator

1шт.

13

A187504

SCREW

hex flange, special, voltage regulator retaining, replaces A187907

2шт.

14

A187995

STATOR

alternator

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

ball, rotor, collector ring end, replaces A187908

1шт.

16

1987499C1

ROTOR

alternator

1шт.

17

A187901

FIXING PLATE

PLATE bearing retaining, drive end cover

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

ball, rotor, drive end

1шт.

3078897R1

SET OF PARTS

rotor retaining, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

RING spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUTrotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY pulley retainer, not used in A187873 alternator, not shown

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW bearing retaining plate

4шт.

24

A187994

HOUSING

HOUSING drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

slotted, special

4шт.

26

221425R1

FAN

alternator

1шт.

Not included with the alternator assembly, order separately

1шт.

27

J908560

PULLEY

drive

1шт.

Not included with the alternator assembly, order separately

1шт.

28

J908563

RETAINER

pulley

1шт.

Not included with the alternator assembly, order separately

1шт.
