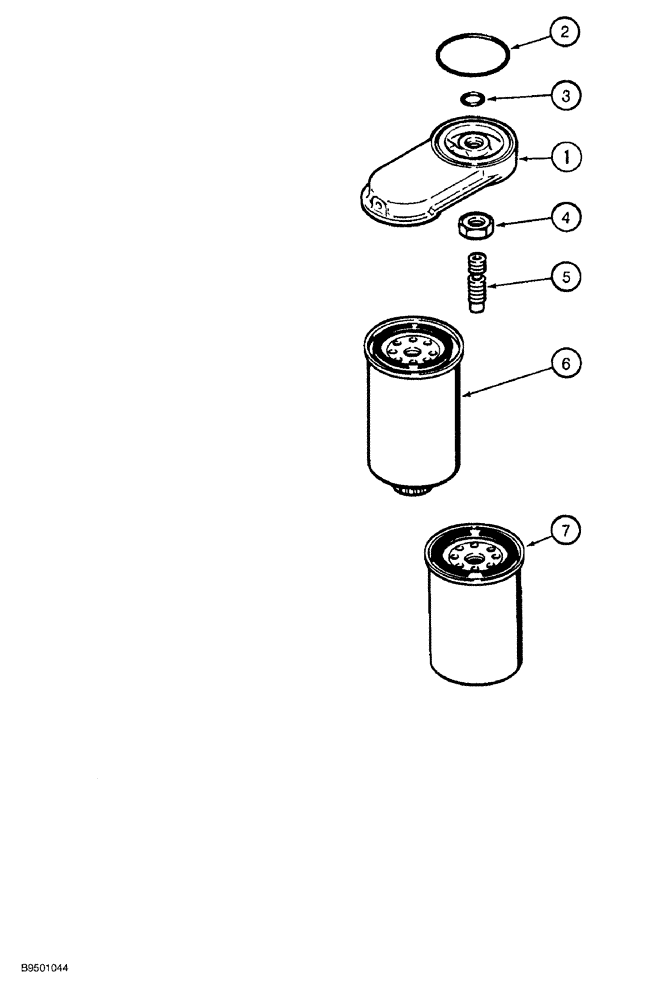

Запчасти Case 650G (3-09E) - FUEL FILTER 4T-390 ENGINE PRIOR TO CRAWLER P.I.N. JJG0216449 (03) - FUEL SYSTEM

1

J897331

SUPPORT

HEAD fuel filter, replaces J915240

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID, fuel filter head

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID, fuel filter adapter

1шт.

4

J903293

JAM NUT

hex, special, 16 mm - 2.0

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter, replaces J903845

1шт.

A77470

SEPARATOR

KIT fuel, Includes: Ref. 6 and 7

1шт.

6

J925274

FILTER, FUEL

primary

1шт.

7

J931063

FUEL FILTER

fuel, secondary, replaces J903640

1шт.
