Запчасти Case 650G (3-09C) - FUEL TRANSFER PUMP 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (03) - FUEL SYSTEM

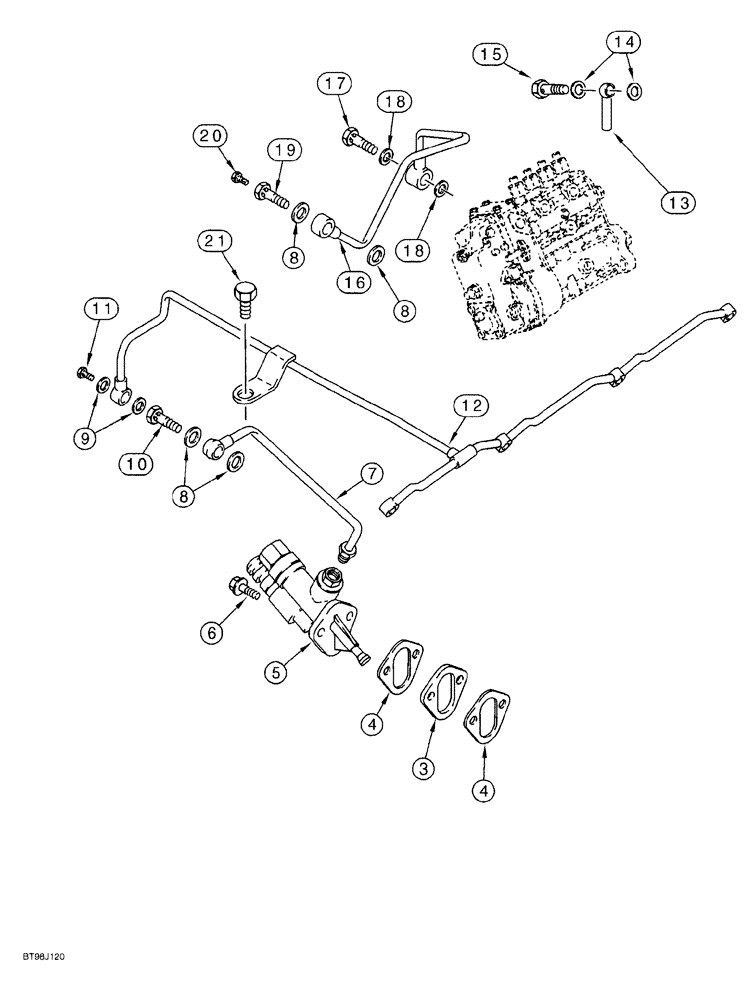

Схема запчастей Case 650G - (3-09C) - FUEL TRANSFER PUMP 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (03) - FUEL SYSTEM
18
4
20
8
7
3
8
18
15
13
11
9
6
17
19
14
5
10
16
12
21
4
8

Артикул

Название

Примечание

Количество

3

J914284

SPACER

fuel transfer pump mounting

1шт.

4

J931348

GASKET

mounting, fuel transfer pump

2шт.

5

J933254

FEED PUMP

fuel transfer

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J917280

FUEL TUBE,8 mm OD x 231 mm L

supply

1шт.

8

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

10

J916361

BANJO BOLT

banjo connector, 12-1.5 x 24 mm

1шт.

11

J924726

BANJO BOLT

check

1шт.

12

J927633

TUBE

manifold, fuel

1шт.

13

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, special, 14 x 20 x 1 mm

2шт.

15

J912886

VALVE

overflow

1шт.

16

J932035

FUEL TUBE,8 mm OD x 349 mm L

supply, fuel

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

connector

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, special, 14 x 20 x 1 mm

2шт.

J905860

BANJO BOLT

ASSEMBLY banjo hex, special, Includes: Ref. 19 and 20

1шт.

19

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

20

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

hex, special, vent

1шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

Выбрано товаров: 20
