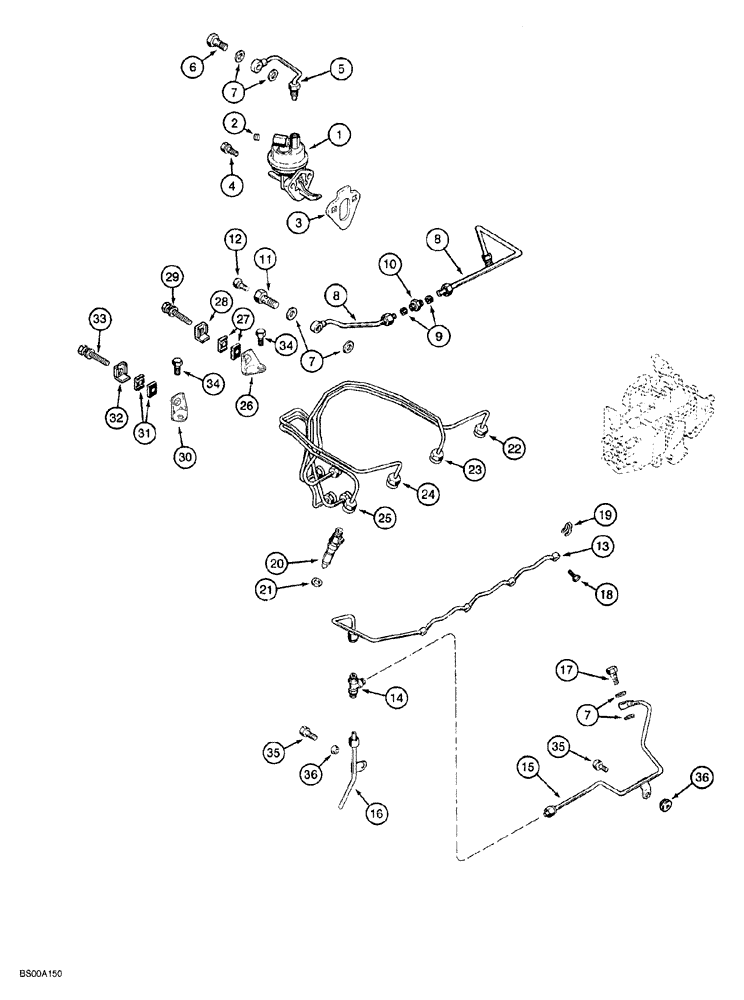

Запчасти Case 650G (3-08) - FULE INJECTION SYSTEM 4T-390 ENGINE PRIOR TO CRAWLER P.I.N. JJG0216449 (03) - FUEL SYSTEM

1

J928143

PUMP

lift, fuel, replaces J904374

1шт.

2

221-841

PLUG

hex socket, 1/4 inch PT, fuel inlet

1шт.

3

J931059

GASKET

mounting, fuel transfer pump, replaces J914304 and J923054

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

ASSEMBLY fuel supply, lift pum to fuel filter

1шт.

6

J903035

BANJO BOLT

hex, 12 - 1.5 x 24 mm

1шт.

7

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

6шт.

8

J918640

FUEL TUBE

TUBE ASSEMBLY, fuel supply, two-piece, Includes: Ref. 9 and 10

1шт.

9

222-103

SLEEVE,5/16" Tube

2шт.

10

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER compression, 5/16 inch tube O.D.

1шт.

J905860

BANJO BOLT

ASSEMBLY, banjo hex, special, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex special

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

13

J909695

FUEL TUBE

TUBE manifold, fuel drain

1шт.

14

222-121

TEE,3/16", Flex Tubing

(Remove and discard hex nuts before assembly)

1шт.

15

J905699

FUEL TUBE,4.76 mm OD

fuel return, tee to pump

1шт.

16

J905692

FUEL TUBE

fuel return, tee to fuel tank

1шт.

17

J905465

BANJO BOLT

banjo, overflow

1шт.

18

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

4шт.

19

J903380

SEAL

connector

4шт.

20

REF

INSTRUCTION

INJECTOR ASSEMBLY fuel, parts list Fig. 3-14

4шт.

21

REF

INSTRUCTION

SEAL injector, see Fig. 3-14

4шт.

22

J903480

FUEL TUBE,21 mm ID x 64 mm OD

fuel injector, No. 1 cylinder

1шт.

23

J903481

FUEL TUBE,21 mm ID x 64 mm OD

fuel injector, No. 2 cylinder

1шт.

24

J903482

FUEL TUBE,21 mm ID x 64 mm OD

fuel injector, No. 3 cylinder

1шт.

25

J903483

FUEL TUBE,21 mm ID x 64 mm OD

fuel injector, No. 4 cylinder

1шт.

26

J930689

SUPPORT

fuel tube, clamp, replaces J919294

1шт.

27

J917746

CLAMP

fuel tube

2шт.

28

CURJ904711

CLAMP

fuel tube

1шт.

29

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

Replaces J917712 bolt and J903723 washer

1шт.

30

J930688

SUPPORT

fuel tube, replaces J919292

1шт.

31

J917746

CLAMP

fuel tube

2шт.

32

CURJ904711

CLAMP

fuel tube, clamp

1шт.

33

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

Replaces J917712 bolt and J903723 washer

1шт.

34

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special

2шт.

35

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

36

J928759

SEALING WASHER

cover bolt, replaces J900267

2шт.
