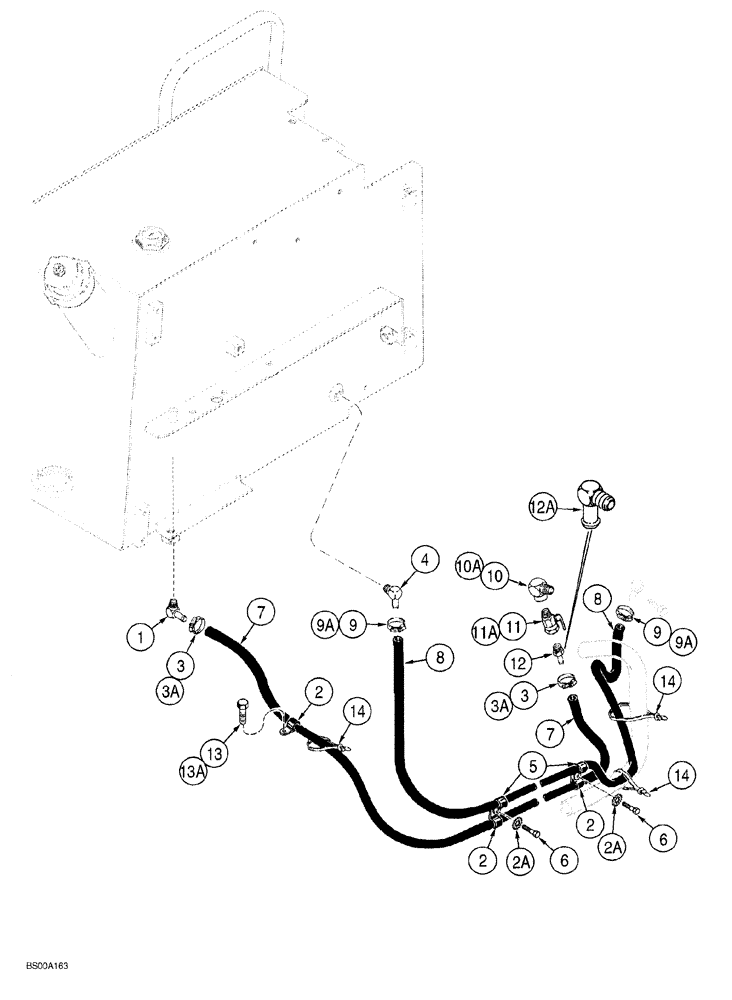

Запчасти Case 650G (3-07A) - FUEL LINES (P.I.N. JJG0216449 AND AFTER) (03) - FUEL SYSTEM

1

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

3шт.

2a

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

2шт.

3

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

If Used

2шт.

3a

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

adj., 1/2 - 29/32 inch dia., if used

2шт.

4

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

5

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

2шт.

6

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

7

256728A1

FUEL HOSE

2000 mm (78-3/4 inch), cut from S118466X bulk hose, supply, fuel tank to lift pump, see below

1шт.

8

256729A1

FUEL HOSE

2400 mm (94-1/2 inch), long, cut from S118400X bulk hose, return, filter to fuel tank, see below

1шт.

9

214-1408

HOSE CLAMP,11.2mm - 19.8mm

Adj, if used

2шт.

9a

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

adj, 1/2 - 29/32 inch dia., if used

2шт.

10

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

street, 90 degree, 3/8 inch PT x female PT, if used

1шт.

10a

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

If Used

1шт.

11

284721A1

VALVE

shutoff, fuel tank, if used

1шт.

11a

113092A1

VALVE

shutoff, fuel tank, if used

1шт.

12

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

Adapter, straight, if used

1шт.

12a

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

ELBOW, 90 degree, 1/2 stem end x 1/4 inch PT, if used

1шт.

13

121-231

SERRATED BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used

1шт.

13a

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8, if used

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, harness

3шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE,LARGE bulk, 10 (3/8) x 15 (5/8) x 7620 mm (300 inch) long

1шт.

S118466X

LARGE HOSE

HOSE,LARGE bulk, 13 (1/2) ID x 7620 mm (300 inch) long

1шт.
