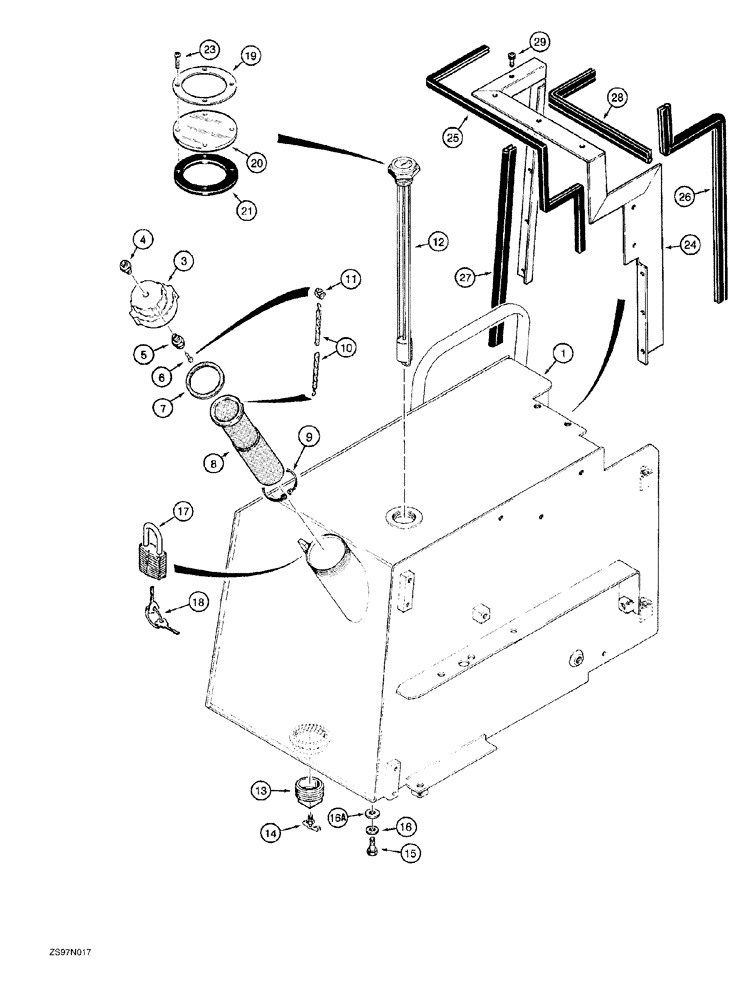

Запчасти Case 650G (3-04) - FUEL TANK (03) - FUEL SYSTEM

255302A1

TANK

ASSEMBLY, fuel, replaces R57900, See Fig. 3-7A, Ref. 12, adapter for models with emission engines, Includes: Ref. 1 and 3

1шт.

1

NSS

NOT SOLD SEPARAT

TANK fuel

1шт.

3

R57981

FILLER CAP

fuel tank

1шт.

4

R57888

FILTER

air inlet, fuel tank

1шт.

5

A50096

VALVE

relief, fuel tank

1шт.

6

301-14712

SCREW,Drive, #12 x 3/4"

Round head, fuel tank

1шт.

7

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

rubber, fuel cap, fuel tank

1шт.

8

R51771

STRAINER ASSY.

fuel tank

1шт.

9

103-21300

SNAP RING,3.00", Int, #300

Chain, fuel tank

1шт.

10

R47786

CHAIN (CE)

filler cap, fuel tank

1шт.

11

R48634

FASTENER

HOOK chain, fuel tank

1шт.

12

R49775

FUEL GAUGE

tank

1шт.

13

R27578

PLUG

drain, fuel tank

1шт.

14

217-81

VALVE

drain, 1/8 inch PT, fuel tank

1шт.

15

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

hex, 5/8 NC x 1 inch, fuel tank

8шт.

16

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened, Fuel tank

8шт.

16a

D44330

SHIM,.031" Thk

(21/32" ID x 1-1/4" OD), Fuel tank

6шт.

17

D93753

PADLOCK

includes keys, if used, fuel tank, Includes: Ref. 18

1шт.

18

R29555

KEY

for Master padlock only, fuel tank

2шт.

18

D93751

SET OF 2 KEYS

for Yale padlock only, fuel tank

2шт.

19

R53852

RING

retainer, fuel gauge cover, parts used only on models with a cab

1шт.

20

R51354

COVER

fuel gauge, clear plastic, parts used only on models with a cab

1шт.

21

R53234

GASKET

fuel gauge cover, parts used only on models with a cab

1шт.

23

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

Parts used only on models with a cab

4шт.

24

1999346C1

FRAME ASSY

seal, fuel tank, parts used only on models with a cab, Includes: Ref. 25 - 28

1шт.

25

1999832C1

SEAL

410 mm (16-1/8 inch) long, molding, fuel tank, parts used only on models with a cab

1шт.

26

1999833C1

SEAL

740 mm (29-1/8 inch) long, front, vertical, parts used only on models with a cab

1шт.

27

1999834C1

SEAL

552 mm (21-3/4 inch) long, rear, vertical, order Ref. 26, 1999833C1 and cut to length, parts used only on models with a cab

1шт.

28

1999835C1

SEAL

410 mm (16-1/8 inch) long, front, horizontal, order Ref. 26, 1999833C1 and cut to length, parts used only on models with a cab

1шт.

29

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

hex socket button head, 5/16 NC x 3/4 inch, parts used only on models with a cab

16шт.
