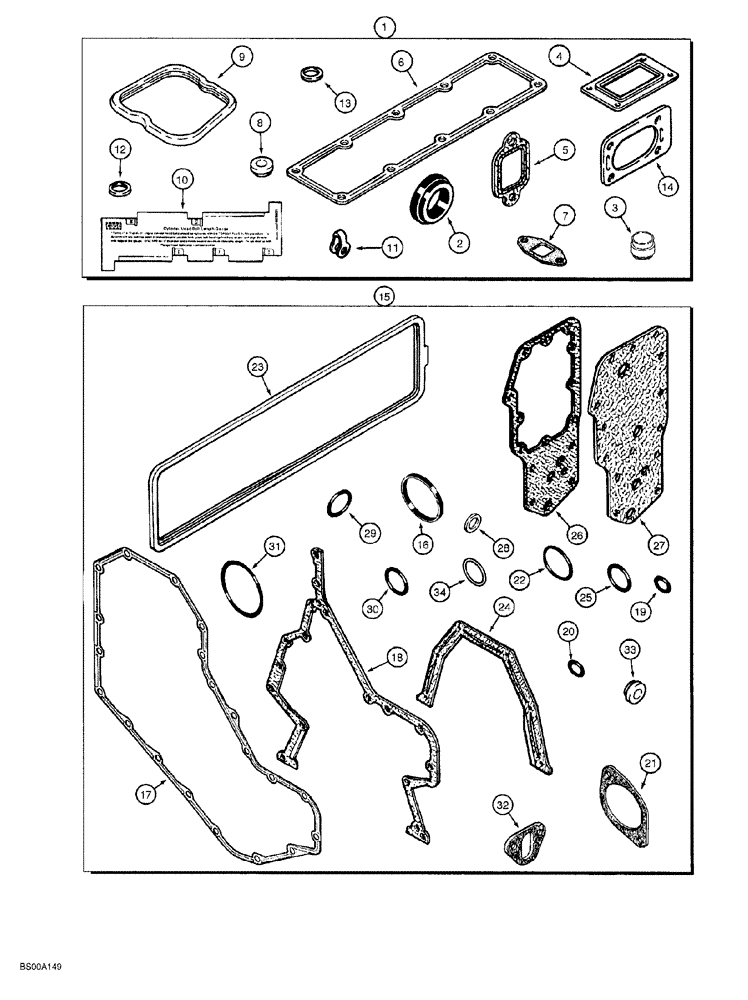

Запчасти Case 650G (2-49A) - ENGINE GASKET KITS (P.I.N. JJG0216449 AND AFTER) (02) - ENGINE

1

A77870

SEAL PACKAGE

KIT gasket, valve grind, engine, Includes: Ref. 2 - 14

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, Fig. 2-33A

1шт.

2

J923331

GASKET

thermostat housing, valve grind

1шт.

3

J901097

SEAL

intake and exhaust valve guides, valve grind

4шт.

3

J921640

SEAL

valve, intake and exhaust valve guides, valve grind

4шт.

4

J919369

GASKET,0.5mm Thk

turbocharger to manifold, valve grind

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold, valve grind

4шт.

6

J938153

MANIFOLD GASKET,0.8mm Thk

intake manifold, replaces J914028, valve grind

1шт.

7

J931350

GASKET

turbo oil drain tube, valve grind

1шт.

8

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, cover bolt, replaces J928406, valve grind

4шт.

9

J930906

GASKET

SEAL rocker arm cover, replaces J902666, valve grind

4шт.

10

J823921

GAUGE

cylinder head, bolt length, valve grind

1шт.

11

J903380

SEAL

connector, fuel return manifold tube, valve grind

4шт.

12

J906659

SEAL

injector nozzle, 7 mm injector tip, valve grind

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING, body to nut, injector body, 7 mm, valve grind

4шт.

14

J914856

GASKET,1.02mm Thk

air crossover connection, valve grind

1шт.

15

A77864

SEAL PACKAGE

KIT gasket, cylinder block, replaces A77671, cylinder block, Includes: Ref. 16 - 34

1шт.

For complete engine overhaul, order 1 cylinder block kit, 1 valve gring kit, 1 oil pan kit, Fig. 2-31A, front and rear crankshaft seal kit, Fig. 2-42, and required cylinder head gasket, Fig. 2-33A

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, cylinder block

1шт.

17

J918673

GASKET,1.02mm Thk

front cover, cylinder block

1шт.

18

J931351

GASKET

gear housing, cylinder block

1шт.

19

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing, cylinder block

1шт.

20

J913994

O-RING

sealing, timing pin, cylinder block

1шт.

21

J929751

GASKET

access cover plate, accessory drive, replaces J919601, cylinder block

1шт.

22

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to block, cylinder block

1шт.

23

J283767

GASKET,7.4mm Thk

tappet cover, cylinder block

1шт.

24

J928493

GASKET

rear cover retainer, crankshaft, replaces J914386, cylinder block

1шт.

25

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID, water inlet connection, cylinder block

1шт.

26

J942914

GASKET

oil cooler core, replaces J926760, cylinder block

1шт.

27

J929792

GASKET,1.2mm Thk

filter head, oil, cylinder block

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, oil pan, cylinder block

1шт.

29

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm (1-1/2 inch) ID, cylinder block

1шт.

30

J929457

O-RING

oil filter plug, cylinder block

1шт.

31

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel housing to block, cylinder block

1шт.

32

J931348

GASKET

mounting, fuel transfer pump, cylinder block

1шт.

33

J928759

SEALING WASHER

cover bolt, replaces J900267, cylinder block

4шт.

34

J935032

SEAL

GASKET, replaces J930993, cylinder block

1шт.
