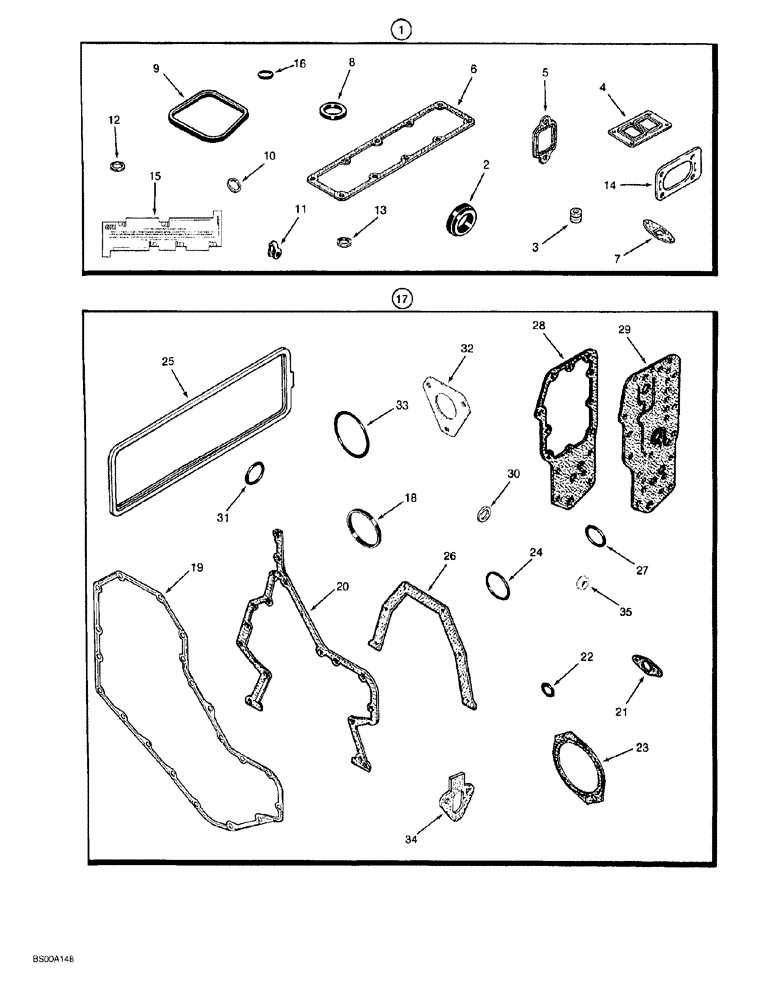

Запчасти Case 650G (2-48) - ENGINE GASKET KITS (PRIOR TO P.I.N. JJG0216449) (02) - ENGINE

1

A77858

GASKET KIT

valve grind, engine, replaces A77792, Includes: Ref. 2 - 16A, Includes: Ref. 2 - 16A

1шт.

When just the valve grind gasket kit is used, also order the required head gasket, Ref. 2 Fig. 2-32

1шт.

2

J923331

GASKET

thermostat housing, valve grind

1шт.

3

J901097

SEAL

intake and exhaust valve guides, grind

8шт.

4

J901356

GASKET,0.5mm Thk

turbocharger to manifold, valve grind

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold, valve grind

4шт.

6

J938153

MANIFOLD GASKET,0.8mm Thk

intake manifold, replaces J914028, valve grind

1шт.

7

J928919

GASKET

turbo oil drain tube, replaces J914388, valve grind

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap, valve grind

1шт.

9

J929795

GASKET

SEAL rocker arm cover, replaces J902666, valve grind

4шт.

10

J900808

SEAL

injector nozzle, 9 mm injector tip, not used in this application, valve grind

4шт.

11

J903380

SEAL

connector, return manifold tube, valve grind

4шт.

12

J906659

SEAL

injector nozzle, 7 mm injector tip, valve grind

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING, body to nut, injector body, 7 mm, valve grind

4шт.

14

J914856

GASKET,1.02mm Thk

air crossover connection, valve grind

1шт.

15

J823921

GAUGE

cylinder head, bolt length, valve grind

1шт.

16

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, valve grind

4шт.

16a

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, not shown, replaces J928406, valve grind

4шт.

17

A77860

GASKET KIT

cylinder block, replaces A77671, Includes: Ref. 18 - 35, valve grind, Includes: Ref. 18 - 35

1шт.

For complete engine overhaul, order 1 cylinder block kit, 1 valve gring kit, 1 oil pan kit, Fig. 2-30, front & rear crankshaft seal kit, Fig. 2-42, & required cylinder head gasket, Fig. 2-32

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, cylinder block

1шт.

19

J914385

GASKET,1.02mm Thk

front cover, to housing, cylinder block

1шт.

20

J931351

GASKET

gear housing, timing, replaces J916131, cylinder block

1шт.

21

J905595

GASKET

timing pin housing, cylinder block

1шт.

22

J913994

O-RING

sealing, timing pin, cylinder block

1шт.

23

J931608

GASKET

access cover plate, accessory drive, replaces J919601, cylinder block

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to block, cylinder

1шт.

25

J928831

GASKET

tappet cover, replaces J922078, cylinder block

1шт.

26

J928493

GASKET

rear cover retainer, crankshaft, replaces J914386, cylinder block

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID, water inlet connection, cylinder block

1шт.

28

J942914

GASKET

oil cooler core, replaces J918256 and J926760, cylinder block

1шт.

29

J929792

GASKET,1.2mm Thk

filter head, oil, replaces J918257, cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, oil pan, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm (1-1/2 inch) ID, engine oil fill tube, cylinder block

1шт.

32

J914389

GASKET

pump mounting, fuel, cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel housing to block, cylinder

1шт.

34

J931059

GASKET

mounting, fuel transfer pump, replaces J914304, and J923054, cylinder block

1шт.

35

J928759

SEALING WASHER

cover bolt, replaces J900267, cylinder block

4шт.
