Запчасти Case 650G (2-45A) - FLYWHEEL AND HOUSING 4T-390 ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (02) - ENGINE

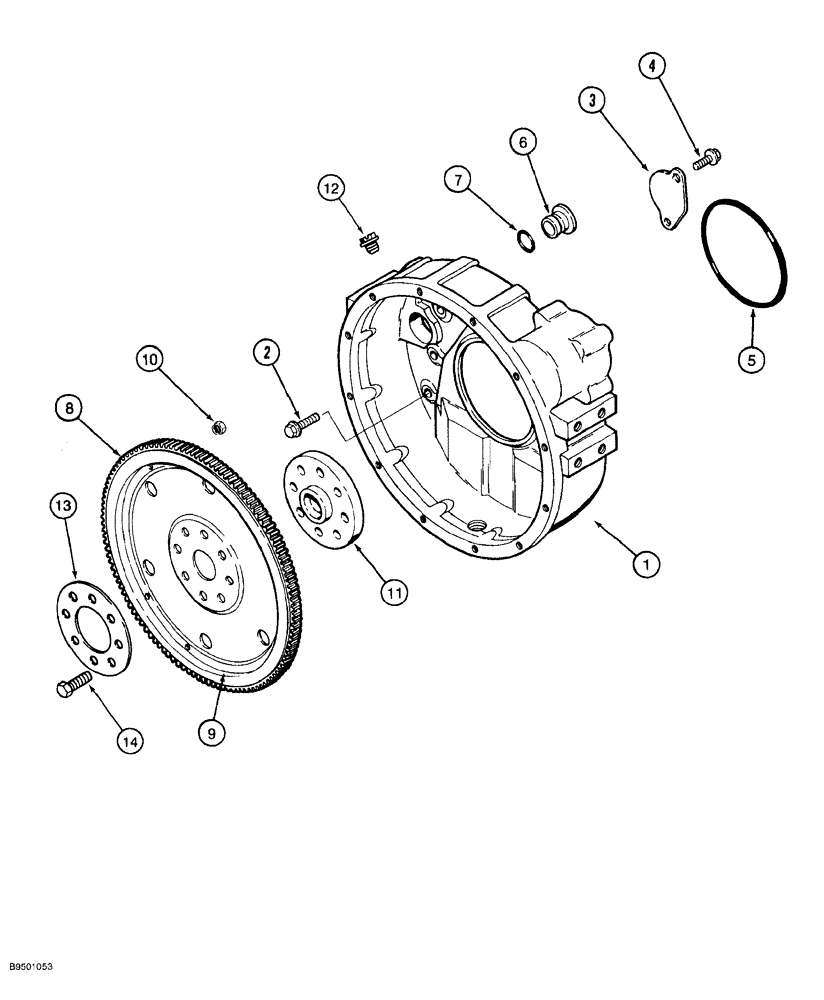

Схема запчастей Case 650G - (2-45A) - FLYWHEEL AND HOUSING 4T-390 ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (02) - ENGINE
5
6
14
13
4
12
2
7
9
8
11
1
10
3

Артикул

Название

Примечание

Количество

1

J931714

HOUSING

flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

3

J925234

PLATE

cover

1шт.

4

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm, plate retaining

2шт.

5

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

6

J910248

PLUG

flywheel housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

J920982

PLATE ASSY.

flex, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR ring, flywheel

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE flex

1шт.

10

NSS

NOT SOLD SEPARAT

NUTsealing

6шт.

11

J913689

FLANGE

ADAPTER crankshaft

1шт.

12

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

13

J904361

WASHER

RING clamping

1шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

Выбрано товаров: 15
