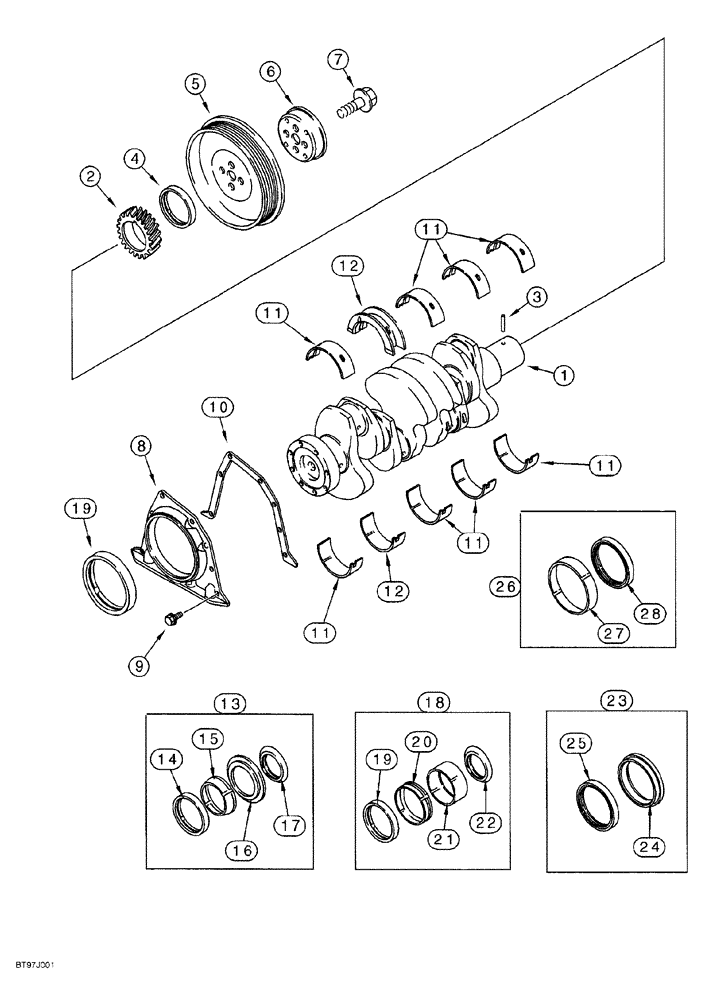

Запчасти Case 650G (2-42) - CRANKSHAFT 4T-390 ENGINE PRIOR TO CRAWLER P.I.N. JJG0216449 (02) - ENGINE

JR908031

CRANKCASE

engine, remanufactured, North America only, component parts shown on this Fig. do not apply to the remanufactured assembly, for service order J908031, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

650G PRIOR TO CRAWLER P.I.N. JJG0216449 (4/94-), Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

RETURN NUMBER, use this part number to return crankshaft for credit when using a remanufactured assembly, Includes: Ref. 2 and 3

1шт.

1

J908031

CRANKSHAFT

ASSEMBLY engine, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

650G PRIOR TO CRAWLER P.I.N. JJG0216449 (4/94-), Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

GEAR crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order item 13, A77889 kit

1шт.

5

J914494

PULLEY,181.25mm OD

crankshaft vibration damper

1шт.

6

J905820

ADAPTER

FLANGE adapter, pulley

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange, special, 12 - 1.25 x 36 mm

4шт.

8

J921043

REAR COVER

RETAINER seal

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Heavy

6шт.

10

J928493

GASKET

rear cover retainer

1шт.

11

A77405

CRANKSHAFT BEARING

main, upper and lower set, standard

4шт.

11

A77472

BEARING SET

main, upper and lower set, 0.25 mm undersize

4шт.

11

A77474

BEARING SET

main, upper and lower set, 0.50 mm undersize

4шт.

11

A77476

BEARING SET

main, upper and lower set, 0.75 mm undersize

4шт.

11

A77478

BEARING SET

main, upper and lower set, 1.00 mm undersize

4шт.

12

A77896

BEARING SET

main, upper and lower set, standard, replaces A77406

1шт.

12

A77473

THRUST BEARING

main, upper and lower set, 0.25 mm undersize

1шт.

12

A77475

THRUST BEARING

main, upper and lower set, 0.50 mm undersize

1шт.

12

A77477

THRUST BEARING

main, upper and lower set, 0.75 mm undersize

1шт.

12

A77479

THRUST BEARING

main, upper and lower set, 1.00 mm undersize

1шт.

12

A77841

THRUST BEARING

main, upper and lower set, 0.50 mm undersize, 0.50 mm oversize

1шт.

12

A77840

THRUST BEARING

main, upper and lower set, 1.00 mm undersize, 1.00 mm oversize

1шт.

13

A77889

SEAL PACKAGE

KIT oil, crankshaft front, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

17

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

18

A77890

SEAL PACKAGE

KIT oil, crankshaft front, includes wear sleeve, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE wear, not shown

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

23

A77809

GASKET KIT

oil seal, crankshaft rear, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

26

A77810

SERVICE KIT

KIT oil, crankshaft rear, includes wear sleeve, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.
