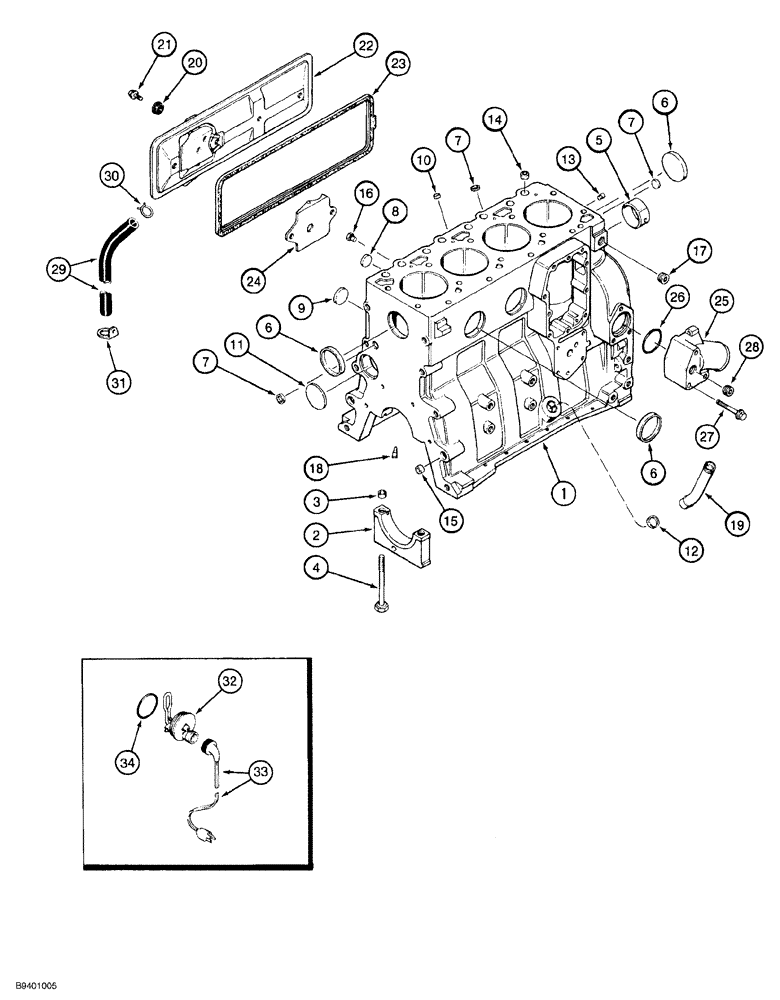

Запчасти Case 650G (2-38) - CYLINDER BLOCK 4T-390 ENGINE PRIOR TO CRAWLER P.I.N. JJG0216449 (02) - ENGINE

1989048C3

ENGINE ASSEMBLY

ENGINE ASSY 4T-390 complete, new, includes all parts except starter, alternator, fan, fan belt, fan belt pulley, air cleaner, muffler & exhaust pipe, for service order basic engine below, replaces 1989048C2, Includes: Ref. 1 - 8

1шт.

1989071C2R

REMAN-REPLACEMENT EN

1шт.

4T-390C

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

1989092C3

BASIC ENGINE

incl. all parts except starter,alternator,fan,fan belt,air cleaner, muffler,exhaust manifold,flywheel & housing,oil fill & dipstick,fuel injection pump,injectors & lines,front pulley,belt tensioner,turbocharger &aftercooler,replaces 1989092C2; See Note

1шт.

1989092C3R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

1989092C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

JR933236

REMAN-SHORT ENGINE

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

JR920387

SKELETON ENGINE

Block Assembly, short, remanufactured, component parts on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 8

1шт.

JC920387

SKELETON ENGINE

Return Part Number

1шт.

AR77758

BLOCK ASSY.

1шт.

AC77758

CORE-ENGINE

Return Part Number, use this part number to return short block core for credit when using a remanufactured assembly, Includes: Ref. 1 - 8

1шт.

J920387

SKELETON ENGINE

BLOCK ASSEMBLY, short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 8

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block

1шт.

1

J916254

BLOCK ASSY.

stripped, engine, no longer available, order J920387 short block assembly or 1989092C3 basic engine, Includes: Ref. 2 - 8

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block

1шт.

2

J900967

BEARING CAP

CAP main

5шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm O.D., main bearing, Serial Range: cap-block

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

main bearing cap, special

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see Fig. 2-36, Ref. 2

1шт.

6

A77782

PLUG

expansion, 58 mm O.D.

1шт.

7

J900956

PLUG

expansion, 18 mm O.D.

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

Expansion

2шт.

PJ920399

SHIN

KIT block hardware, Includes: Ref. 9 - 18

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block

1шт.

9

J900958

PLUG

expansion, 32 mm O.D.

2шт.

10

J900955

PLUG

expansion, 10 mm O.D.

1шт.

11

172599

PLUG,Exp, 2 3/8"

expansion, Welch, 60 mm O.D.

1шт.

12

J920706

PLUG

expansion, 22 mm O.D., not used in this application, Ref. 19, J903744 turbocharger oil drain tube is installed in this port, replaces A77439

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

14

J902343

DOWEL

RING, 16 mm O.D.

2шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm O.D.

2шт.

16

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

17

A77429

PLUG

hex socket, 1/2 inch PT

1шт.

18

J930139

NOZZLE CAP

piston cooling, replaces J919002

4шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

turbocharger oil drain

1шт.

20

J900267

SEAL

cover bolt

4шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

22

J925680

COVER

tappet

1шт.

23

J928831

GASKET

tappet cover, replaces J922078

1шт.

24

J907586

BAFFLE

tappet cover, use with J823494 sealant

1шт.

25

J934877

HYD CONNECTOR

water inlet, replaces J903102

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

27

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

3шт.

28

A77429

PLUG

hex socket, 1/2 inch PT

2шт.

29

J918612

TUBE,360.00 mm

Breather, Replaces J906593

1шт.

30

J904230

CLAMP,25.4mm

spring, hose

1шт.

31

J909670

CLIP

retaining

1шт.

196803A1

KIT

engine block heater, replaces A77634, Includes: Ref. 32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

ELEMENT engine heater, 120 volt

1шт.

33

196466A1

ELECTRIC CABLE

engine block heater, replaces J905113

1шт.

34

J910517

O-RING

heater sealing, engine block heater

1шт.

J823494

SEALANT

Three Bond Silver RTV Adhesive/Sealer, 3 ounce tube, engine block heater, Includes Ref. 24

1шт.
