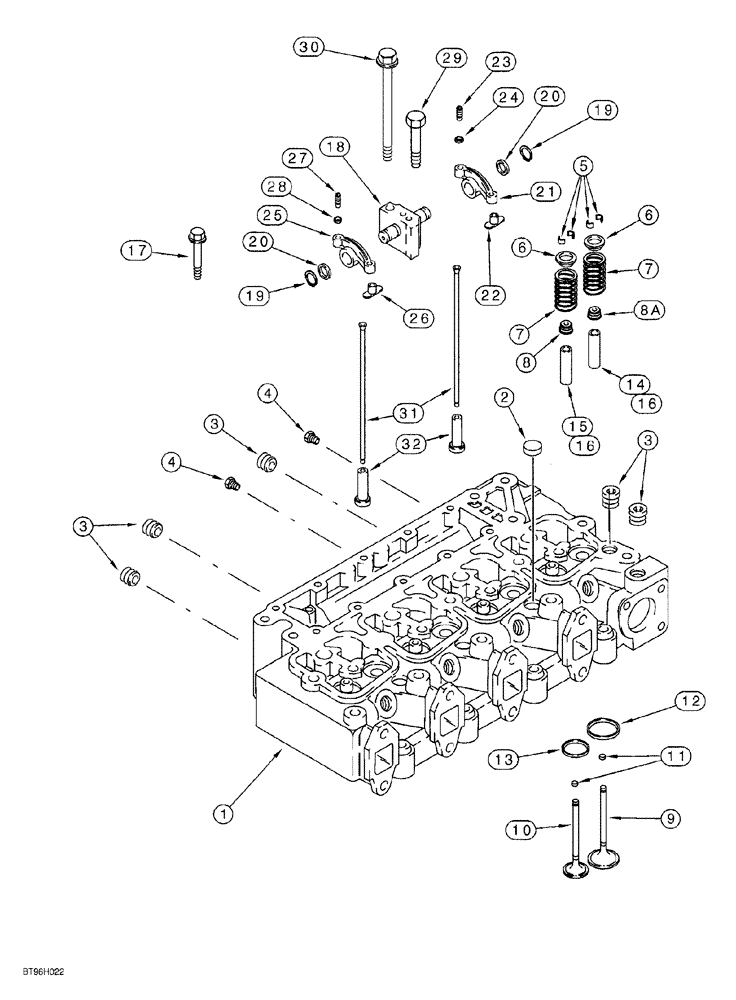

Запчасти Case 650G (2-35A) - CYL. HEAD AND VALVE MECHANISM 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (02) - ENGINE

JR927330

REMAN-CYLINDER HEAD

ASSEMBLY, North America only, component parts shown on this Fig. do not apply to the remanufactured assembly, Includes: Ref. 1 - 10

1шт.

JC927330

CORE-CYLINDER HEAD

RETURN NUMBER, use this part number to return head for credit when using a remanufactured assembly, Includes: Ref. 1 - 10

1шт.

1

J927330

HEAD (CYLINDER)

ASSEMBLY, new, with valves, Includes: Ref. 1 - 10

1шт.

1

J917433

HEAD (CYLINDER)

ASSEMBLY, new, without valves, Includes: Ref. 2

1шт.

2

A77783

PLUG

expansion, 21 mm O.D.

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

One removed to install temperature sending unit

5шт.

4

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

5

J900250

SCREW

KEEPER valve

16шт.

6

J900299

RETAINER

valve spring

8шт.

7

J926700

VALVE SPRING

replaces J900276

8шт.

8

J901097

SEAL

valve

4шт.

8a

J921640

SEAL

valve

4шт.

9

J920867

VALVE

intake

4шт.

10

J920868

VALVE

exhaust

4шт.

11

J280911

WEAR PAD

service repair only for valve stem tip, for use on intake and exhaust valves

1шт.

12

J906854

SEAT, VALVE

insert, intake, service repair only

4шт.

13

J904105

SEAT, VALVE

insert, exhaust, service repair only

4шт.

14

J904408

GUIDE

valve, intake, service repair only, 14 mm O.D.

4шт.

These parts are semi-finished valve guides

1шт.

15

J904409

GUIDE

valve, exhaust, service repair only, 14 mm O.D.

4шт.

These parts are semi-finished valve guides

1шт.

16

J906206

GUIDE

valve, intake and exhaust, service repair only, 11 mm O.D.

8шт.

These parts are semi-finished valve guides

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm

10шт.

18

J922488

SUPPORT

AND SHAFT ASSEMBLY rocker arm

4шт.

19

J900242

SNAP RING

retaining, rocker arm

8шт.

20

J900245

WASHER

thrust, rocker arm

8шт.

21

J910811

ROCKER

ARM ASSEMBLY, intake, Includes: Ref. 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

24

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

25

J910810

ROCKER

ARM ASSEMBLY, exhaust, Includes: Ref. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

29

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long

4шт.

31

J923262

PUSH ROD

rocker arm

8шт.

32

J931623

TAPPET

valve, push rod

8шт.
