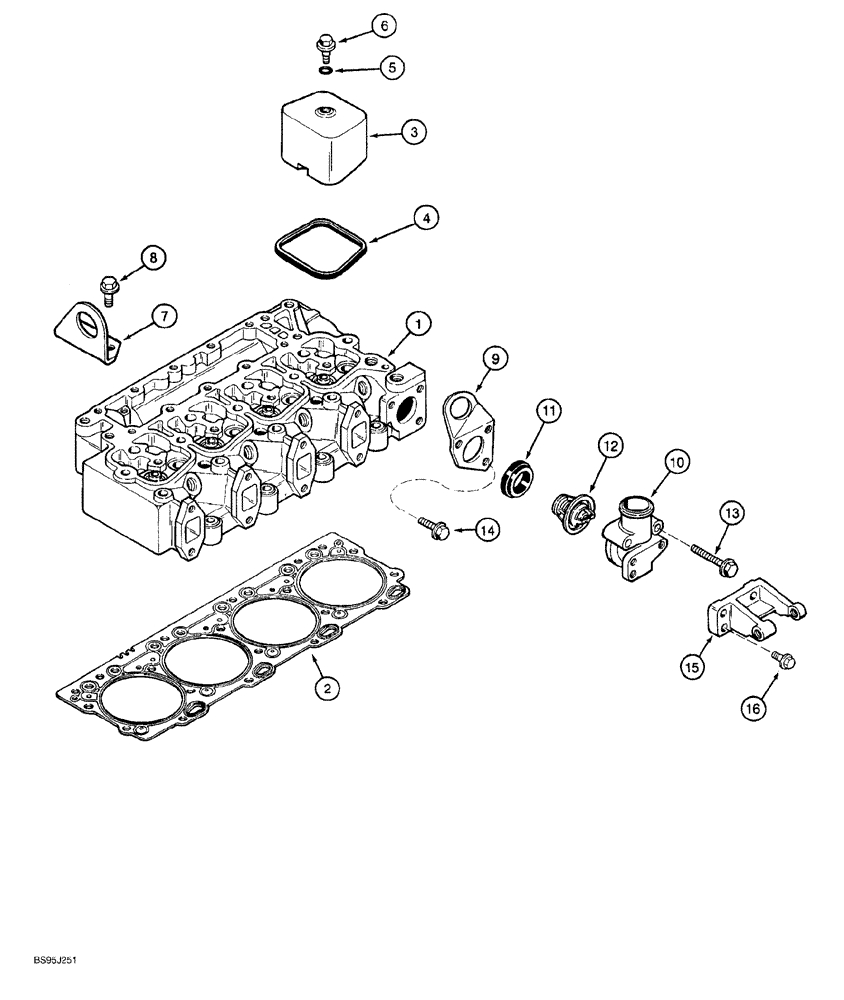

Запчасти Case 650G (2-32) - CYLINDER HEAD COVERS 4T-390 ENGINE PRIOR TO CRAWLER P.I.N. JJG0216449 (02) - ENGINE

1

REF

INSTRUCTION

HEAD ASSEMBLY cylinder, engine, parts list Fig. 2-34

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

head, standard, replaces J921393 and J9282999

1шт.

2

J283336

GASKET

head, 2 notches, 0.25 mm thicker, replaces J921395

1шт.

2

J921397

GASKET

head, 3 notches, 0.50 mm thicker

1шт.

3

J902604

COVER

rocker arm

4шт.

4

J929795

GASKET

SEAL rocker arm cover, replaces J902666

4шт.

5

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, replaces J282133

4шт.

6

J907049

BOLT,Hex

hex flange, special, 8 - 1.25 x 21.25 mm

4шт.

7

J908118

BRACKET

lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

9

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

10

J914409

HOUSING

thermostat and housing

1шт.

A77736

THERMOSTAT

KIT coolant thermostat and housing, Includes: Ref. 11 and 12

1шт.

11

J923331

GASKET

thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT water, and housing

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

heavy hex flange, 8 - 1.25 x 70 mm, thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

15

J923387

SUPPORT

alternator mounting, replaces J910713, thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Thermostat and housing

3шт.
