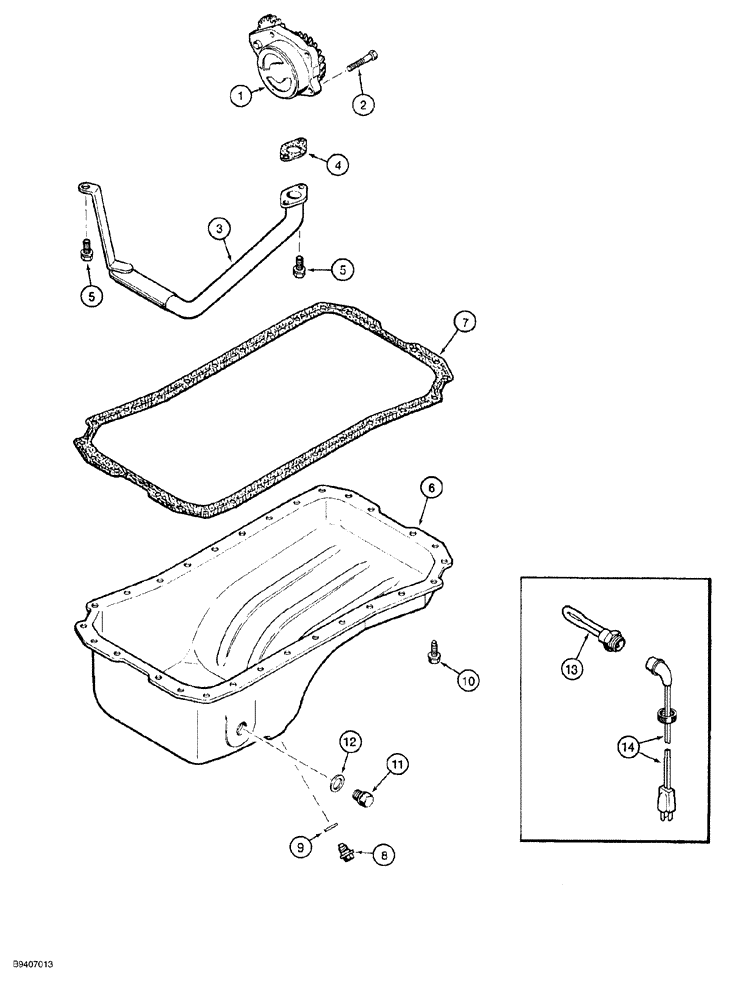

Запчасти Case 650G (2-30) - OIL PUMP AND OIL PAN 4T-390 ENGINE PRIOR TO CRAWLER P.I.N. JJG0216449 (02) - ENGINE

JR926202

PUMP

oil, remanufactured, North America only, replaces JR924719 pump, no longer available, order JR930336, See Fig. 2-31A

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER, use this part number to return pump core for credit when using a remanufactured ass

1шт.

1

J926202

PUMP, ENGINE OIL

new, replaces J924719 pump, no longer available, order J930336, see Fig. 2-31A

1шт.

2

J900677

BOLT,Hex

hex, full threads, 8 - 1.25 x 30 mm

4шт.

3

J905205

TUBE,1" OD

suction, oil

1шт.

4

J914383

GASKET

mounting, oil suction tube

1шт.

Part of Oil Pan Gasket Kit, P/N A77673

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL engine

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET oil pan, order A77673 gasket kit for service

1шт.

Part of Oil Pan Gasket Kit, P/N A77673

1шт.

8

J924147

PLUG,M18 x 1.5

hex magnetic, special, 18 mm - 1.5

1шт.

9

J920773

SEALING WASHER

WASHER sealing

1шт.

Part of Oil Pan Gasket Kit, P/N A77673

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

8 - 1.25 x 25 mm

28шт.

11

J924148

PLUG,M22 x 1.5

hex magnetic, special, 22 mm - 1.5

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

Order for Engine Oil Heater Kit, P/N A77490

1шт.

A77673

GASKET KIT

oil pan, Includes: Ref. No. 4, 7, and 9

1шт.

12

A77490

KIT

heater, engine oil, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENTheater, 120 volt, engine oil heater

1шт.

14

196466A1

ELECTRIC CABLE

engine block heater, replaces J905113, engine oil heater

1шт.
