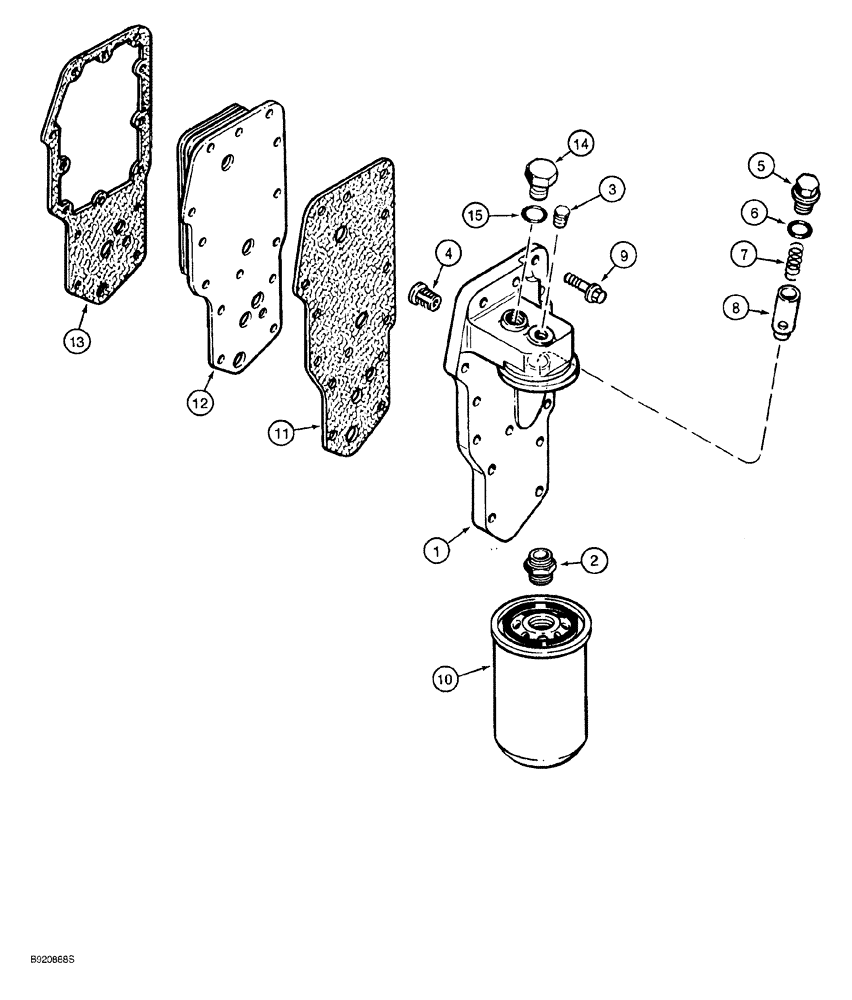

Запчасти Case 650G (2-28) - OIL FILTER AND COLER 4T-390 ENGINE PRIOR TO CRAWLER P.I.N. JJG0216449 (02) - ENGINE

J918954

HEAD

ASSEMBLY, oil filter and cooler, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD lube oil filter

1шт.

2

J909355

ADAPTER

filter head

1шт.

3

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

1шт.

4

J933615

VALVE

relief, pressure, replaces J927622 and J902338

1шт.

5

J915787

PLUG

threaded, pipe

1шт.

6

J929457

O-RING

plug, replaces J909397

1шт.

7

J918427

SPRING

compression, 54 mm free length

1шт.

8

J918428

PLUNGER

regulator, pressure

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

engine oil, cartridge, if used

1шт.

10

J934429

ENGINE OIL FILTER

engine oil, cartridge, premium oil filter, if used

1шт.

11

J929792

GASKET,1.2mm Thk

filter head, replaces J918257

1шт.

12

J921557

COOLER

CORE, oil

1шт.

13

J942914

GASKET

oil cooler core, replaces J926760

1шт.

14

J919686

PLUG

ASSEMBLY hex, 12 mm threaded, used on engines without a turbocharger oil supply, Includes: Ref. 15

1шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.
