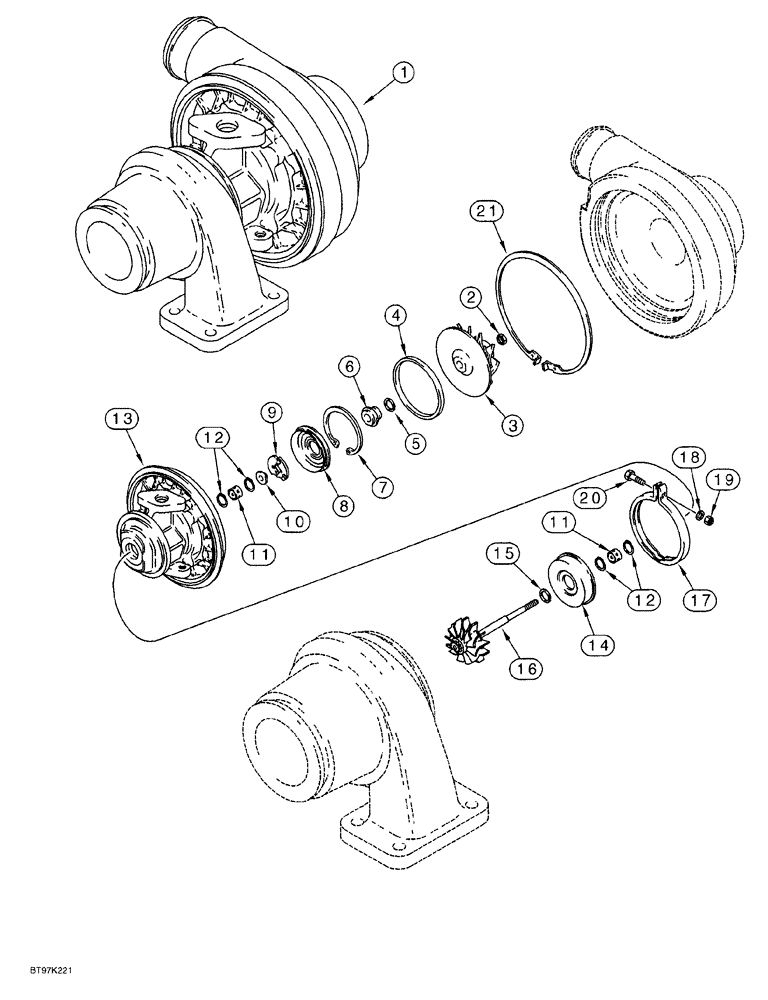

Запчасти Case 650G (2-27A) - TURBOCHARGER ASSEMBLY 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (02) - ENGINE

J802908

TURBOCHARGER

KIT turbocharger, large frame, includes new turbocharger assembly, (1) J519807 turbo oil drain tube gasket and (1) J709861 turbocharger mounting gasket, not shown, Includes: Ref. 1 - 21

1шт.

JR802908

REMAN-TURBOCHARGER

Kit, engine, component parts shown on this Fig. do not apply to the remanufactured assembly, Includes: Ref. 1 - 21

1шт.

JC537886

CORE-TURBOCHARGER

Return Part Number, use this part number to return turbocharger core for credit when using a remanufactured assembly, Includes: Ref. 1 - 21

1шт.

1

J580234

HOUSING ASSY.

CENTER HOUSING ASSEMBLY turbocharger, Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

NUT hex, lock, Part of overhaul kit J575205

1шт.

Part of Overhaul Kit, J575205

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL plate

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL slit ring, Part of overhaul kit J575205

1шт.

Part of Overhaul Kit, J575205

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING snap, Part of overhaul kit J575205

1шт.

Part of Overhaul Kit, J575205

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE oil, Part of overhaul kit J575205

1шт.

Part of Overhaul Kit, J575205

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING turbocharger thrust, Part of overhaul kit J575205

1шт.

Part of Overhaul Kit, J575205

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING turbocharger, Part of overhaul kit J575205

2шт.

Part of Overhaul Kit, J575205

1шт.

12

NSS

NOT SOLD SEPARAT

RING retaining, Part of overhaul kit J575205

4шт.

Part of Overhaul Kit, J575205

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING turbo bearing

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD turbo heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL split ring, Part of overhaul kit J575205

1шт.

Part of Overhaul Kit, J575205

1шт.

15a

NSS

NOT SOLD SEPARAT

SEAL oil, not shown, Part of overhaul kit J575205

1шт.

Part of Overhaul Kit, J575205

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY with shaft

1шт.

17

J531670

CLIP

CLAMP adjustable

1шт.

18

J535971

WASHER

flat, special

1шт.

19

J531582

NUT

hex, Part of overhaul kit J575205

1шт.

Part of Overhaul Kit, J575205

1шт.

20

J531598

BOLT,Hex, M6 x 1 x 35, Stainless

hex, Part of overhaul kit J575205

1шт.

Part of Overhaul Kit, J575205

1шт.

21

J535800

RING, SNAP

RING SNAP

1шт.

J575205

PACKAGE, REPAIR

KIT overhaul, turbocharger, includes Refs. 2, 5, 7, 8, 9, 11, 12, 15, 15A, 19 and 20

1шт.
