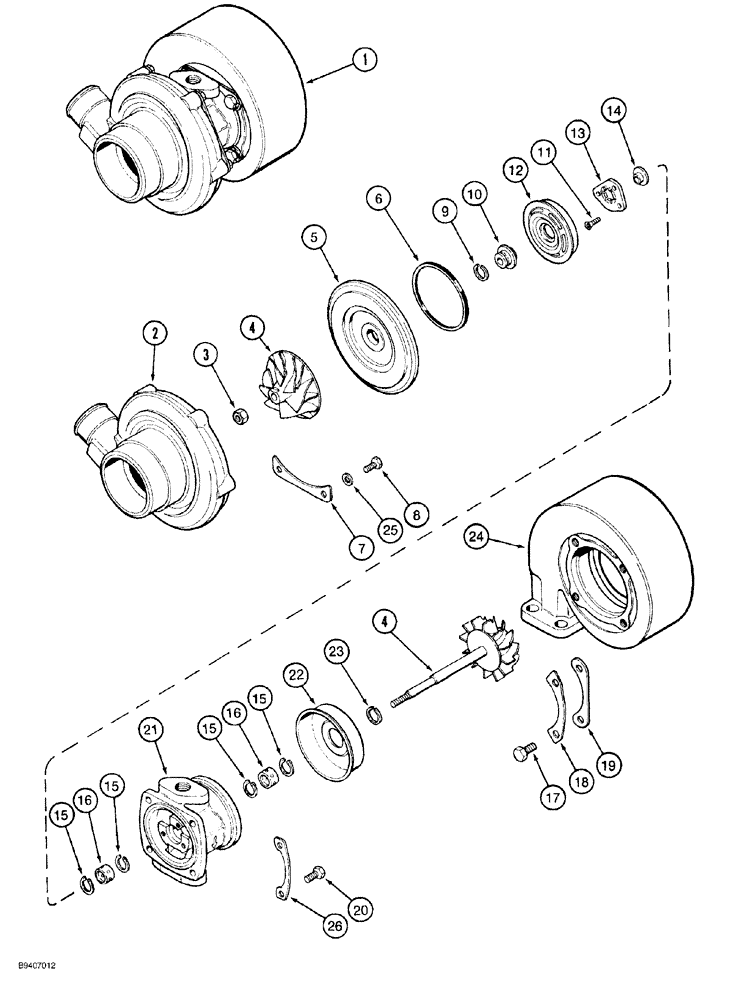

Запчасти Case 650G (2-26) - TURBOCHARGER ASSEMBLY 4T-390 ENGINE PRIOR TO CRAWLER P.I.N. JJG0216449 (02) - ENGINE

1

J919129

TURBOCHARGER

ASSEMBLY engine, new, production only, order J802290 turbocharger kit shown below, Includes: Ref. 2 - 26

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex, lock

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR turbocharger, includes both halves

1шт.

5

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL diffuser, includes overhaul kit J545652

1шт.

Part of Overhaul Kit, P/N J545652

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

SCREW cap, includes overhaul kit J545652

6шт.

Part of Overhaul Kit, P/N J545652

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL split ring, compressor, includes overhaul kit J545652

1шт.

Part of Overhaul Kit, P/N J545652

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW flat head Torx, includes overhaul kit J545652

3шт.

Part of Overhaul Kit, P/N J545652

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING thrust, includes overhaul kit J545652

1шт.

Part of Overhaul Kit, P/N J545652

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING snap, retaining, includes overhaul kit J545652

4шт.

Part of Overhaul Kit, P/N J545652

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING impeller shaft, includes overhaul kit J545652

2шт.

Part of Overhaul Kit, P/N J545652

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT plate retaining, includes overhaul kit J545652

4шт.

Part of Overhaul Kit, P/N J545652

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing, includes overhaul kit J545652

2шт.

Part of Overhaul Kit, P/N J545652

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT hex, includes overhaul kit J545652

4шт.

Part of Overhaul Kit, P/N J545652

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL piston ring, turbine, includes overhaul kit J545652

1шт.

Part of Overhaul Kit, P/N J545652

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING turbine

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER lock, includes overhaul kit J545652

8шт.

Part of Overhaul Kit, P/N J545652

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE lock, turbine

2шт.

J802290

TURBOCHARGER

KIT

1шт.

JR802290

REMAN-TURBOCHARGER

650G Prior To P.I.N. JJG0216449

1шт.

JC535381

CORE-TURBOCHARGER

Return Part Number

1шт.

J545652

PACKAGE, REPAIR

KIT overhaul, turbocharger, includes Refs. 6, 8, 9, 11, 13, 15, 16, 17, 18, 20, 23, and 25

1шт.
