Запчасти Case 650G (2-25A) - TURBOCHARGER SYSTEM 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (02) - ENGINE

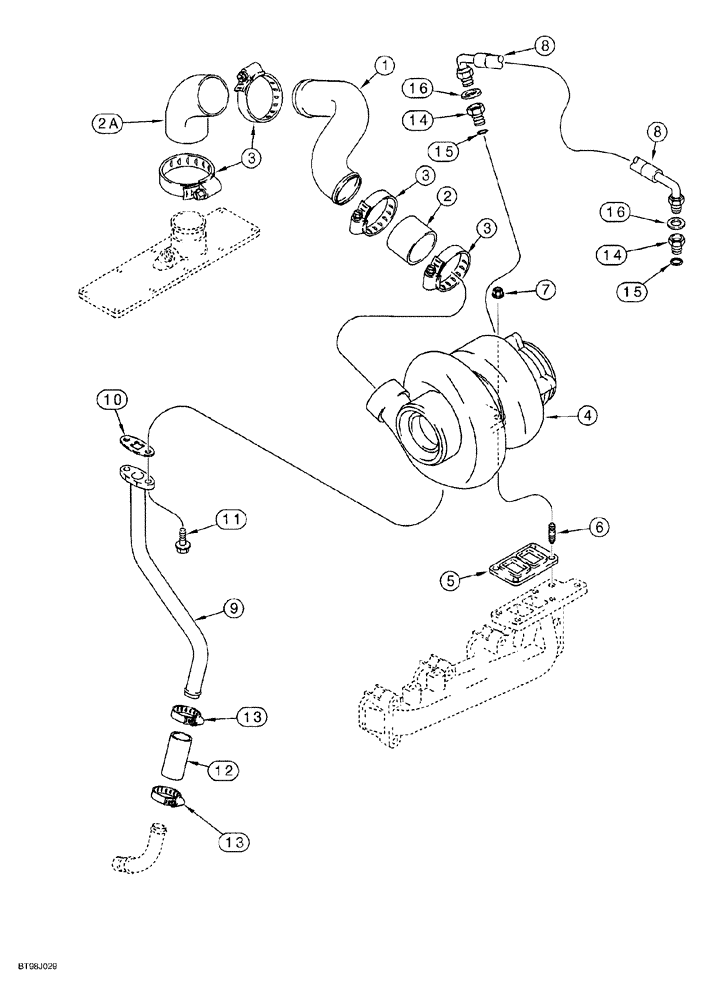

Схема запчастей Case 650G - (2-25A) - TURBOCHARGER SYSTEM 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (02) - ENGINE
14
3
3
1
15
2a
13
16
15
14
12
13
11
6
2
8
4
16
9
3
10
7
5
8

Артикул

Название

Примечание

Количество

1

J931784

TUBE,50.8 mm OD x 255.98 mm L

crossover

1шт.

2

J916438

INTAKE AIR HOSE

80 mm (3-1/8 inch) long, air intake

1шт.

2a

J933026

LARGE HOSE

HOSE, 76 mm (3 inch) long, air intake

1шт.

3

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

Adj.

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY, engine, new, see Fig. 2-25A for correct assembly and component parts

1шт.

5

J919369

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

6

J818823

STUD

turbocharger mounting

1шт.

7

J818824

FLANGE NUT

hex flange, special, 10 mm - 1.5, stud

4шт.

8

J913759

HOSE

Turbocharger Oil Supply

1шт.

9

J934064

TUBE,22.22 mm OD x 393, 131 mm L

turbocharger oil drain

1шт.

10

J931350

GASKET

turbo oil drain tube

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

12

J931970

HOSE,22.22 mm ID x 76.20 mm

turbocharger Oil Drain

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

2шт.

14

J919687

HYD CONNECTOR

ADAPTER female hex, special (1) used to connect turbocharger oil supply hose to turbocharger, (1) used to connect turbocharger oil supply hose to J918954 oil filter head, Includes: Ref. 15

2шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

Выбрано товаров: 17
