Запчасти Case 650G (2-23A) - MANIFOLDS 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (02) - ENGINE

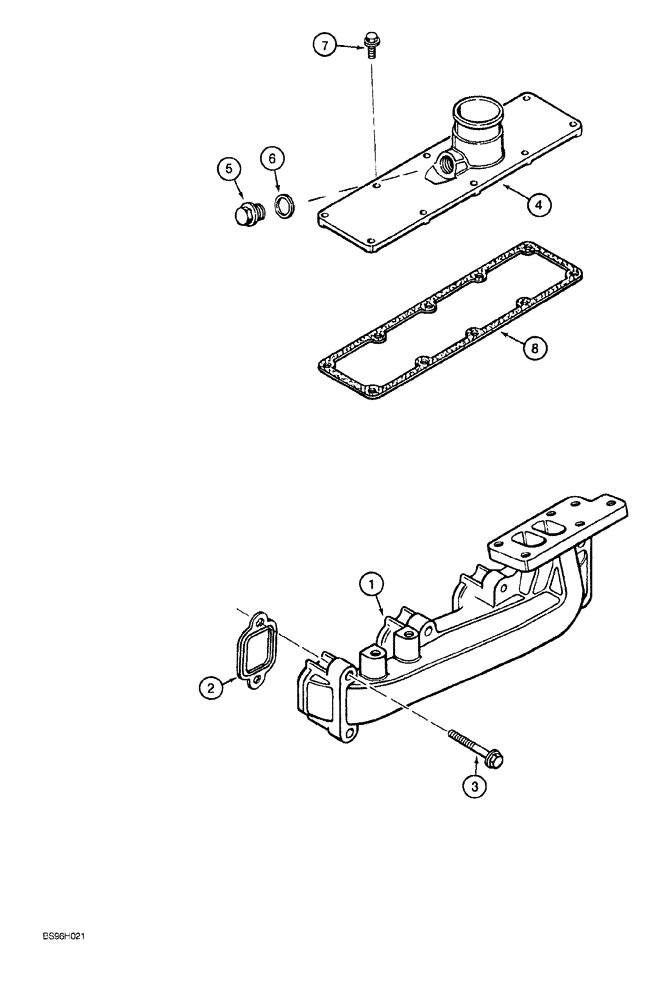

Схема запчастей Case 650G - (2-23A) - MANIFOLDS 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (02) - ENGINE
2
8
4
5
6
7
3
1

Артикул

Название

Примечание

Количество

1

J901919

MANIFOLD

exhaust

1шт.

2

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

3

J930249

FLANGE BOLT,Hex, M10 x 1.5 x 65mm

heavy hex flange, 10 - 1.50 x 65 mm, class 10.9

8шт.

A77416

COVER

KIT intake manifold, no longer available, order components separately, Ref. 4 - 6

1шт.

4

J904339

COVER

intake

1шт.

5

J907185

PLUG

manifold

1шт.

6

J906773

WASHER

plug sealing

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special, Intake manifold

10шт.

8

J931605

BOLT

intake manifold

1шт.

Выбрано товаров: 9
