(2-21A) - FRONT GEAR COVER 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER

Запчасти Case 650G (2-21A) - FRONT GEAR COVER 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (02) - ENGINE

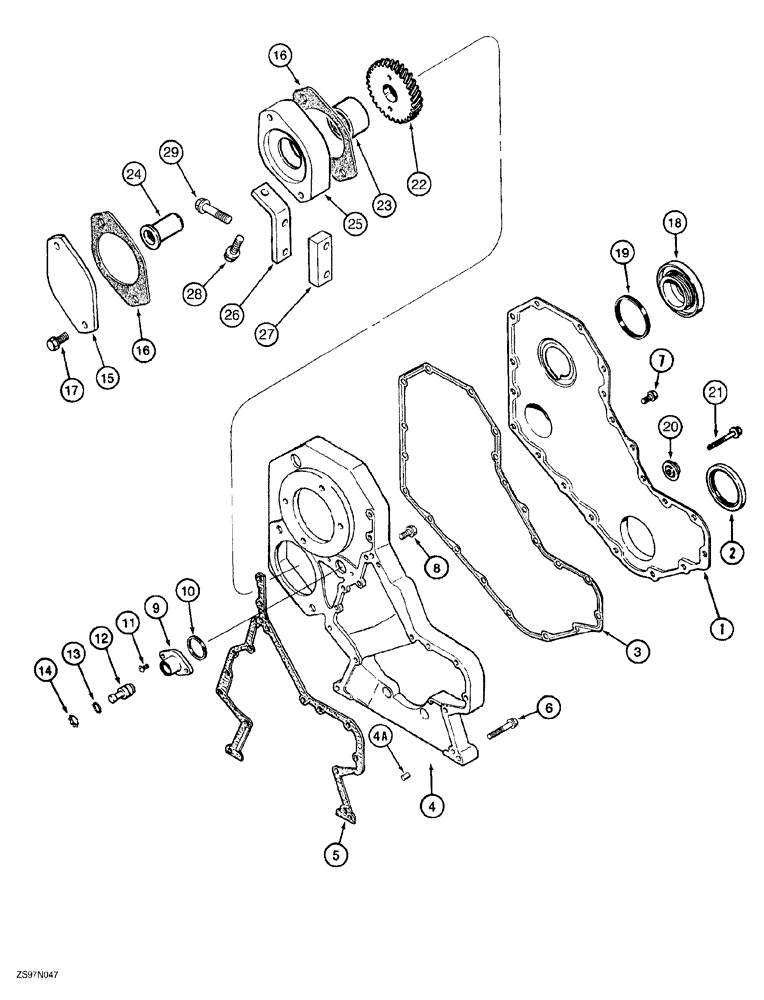

Схема запчастей Case 650G - (2-21A) - FRONT GEAR COVER 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (02) - ENGINE
26
29
23
14
28
8
2
16
4a
15
1
19
3
24
5
18
6
22
4
17
20
21
10
9
16
27
11
25
7
13
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J918675

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankcase front, order A77889 kit, Fig. 2-42

1шт.

3

J918673

GASKET,1.02mm Thk

front cover

1шт.

4

J932120

HOUSING

timing gear

1шт.

4a

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

5

J931351

GASKET

gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

External, timing gear cover to housing

10шт.

7

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, internal, timing gear housing to engine block

8шт.

8

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, internal

5шт.

9

J919683

HOUSING

timing pin

1шт.

10

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

11

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

12

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

13

J913994

O-RING

sealing

1шт.

14

J904849

SNAP RING,0.875", Int, #87

Timing pin

1шт.

15

J914868

COVER

PLATE access, flat

1шт.

Ref. 17 is removed to install the equipment hydraulic pump. See Fig. 8-6 for equipment hydraulic pump mounting.

1шт.

16

J929751

GASKET

access cover plate, one located between pump and pump adapter and one between pump adapter and timing gear cover at final installation

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

Ref. 15 is removed to install the equipment hydraulic pump. See Fig. 8-6 for equipment hydraulic pump mounting.

1шт.

18

J903463

PLUG,M63 x 5

front access, fuel pump drive gear

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, fuel pump drive gear

1шт.

20

J912772

RETAINER

bolt

1шт.

21

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

Heavy

1шт.

22

J902595

GEAR

drive

1шт.

23

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

pump

1шт.

24

J923242

SHAFT

accessory drive

1шт.

25

J923237

ADAPTER

hydraulic pump

1шт.

26

J931825

BRACE

pump

1шт.

27

J931996

SPACER

mounting

1шт.

28

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

1шт.

29

854-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

2шт.
