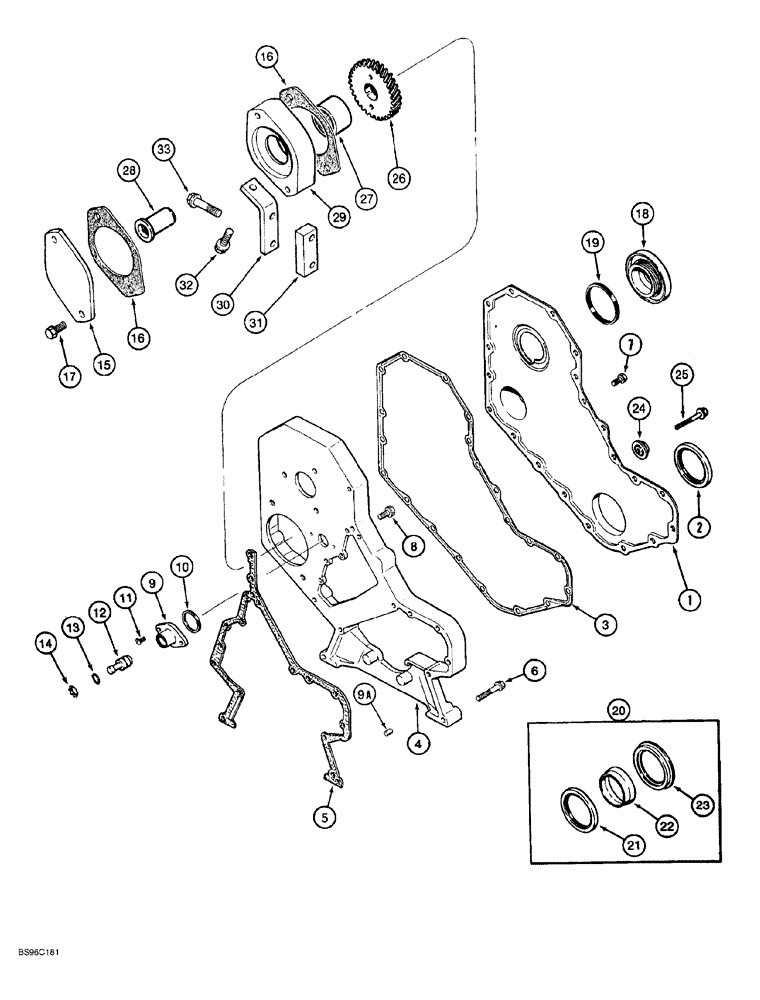

Запчасти Case 650G (2-20) - FRONT GEAR COVER 4T-390 ENGINE PRIOR TO CRAWLER P.I.N. JJG0216449 (02) - ENGINE

1

J903794

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankcase front, order Ref. 20, J904353 kit

1шт.

3

J914385

GASKET,1.02mm Thk

front cover

1шт.

4

J920758

HOUSING

timing gear

1шт.

5

J931351

GASKET

gear housing, replaces J916131

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, external, timing gear, Serial Range: cover-housing

11шт.

8

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm, internal, timing gear housing to engine block

5шт.

9

J919683

HOUSING

timing pin

1шт.

9a

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

10

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

11

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

12

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

13

J913994

O-RING

sealing

1шт.

14

J904849

SNAP RING,0.875", Int, #87

Timing pin

1шт.

15

J914868

COVER

PLATE access cover, flat

1шт.

Ref. 15 and 17 are removed to install the equipment hydraulic pump. See Fig. 8-6 for equipment hydraulic pump mounting.

1шт.

16

J931608

GASKET

access cover plate, one located between pump and pump adapter and one between pump adapter

2шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

Ref. 15 and 17 are removed to install the equipment hydraulic pump. See Fig. 8-6 for equipment hydraulic pump mounting.

1шт.

18

J903463

PLUG,M63 x 5

front access, fuel pump drive gear

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, fuel pump drive gear

1шт.

20

J904353

GASKET KIT

oil seal, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

24

J912772

RETAINER

bolt

1шт.

25

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

Heavy

1шт.

26

J931338

GEAR

drive, replaces J902595

1шт.

27

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

pump

1шт.

28

J923242

SHAFT

accessory drive

1шт.

29

J923237

ADAPTER

hydraulic pump

1шт.

30

J905945

BRACKET

BRACE pump

1шт.

31

J905944

SPACER

SPACER - mounting

1шт.

32

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

1шт.

33

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

2шт.
