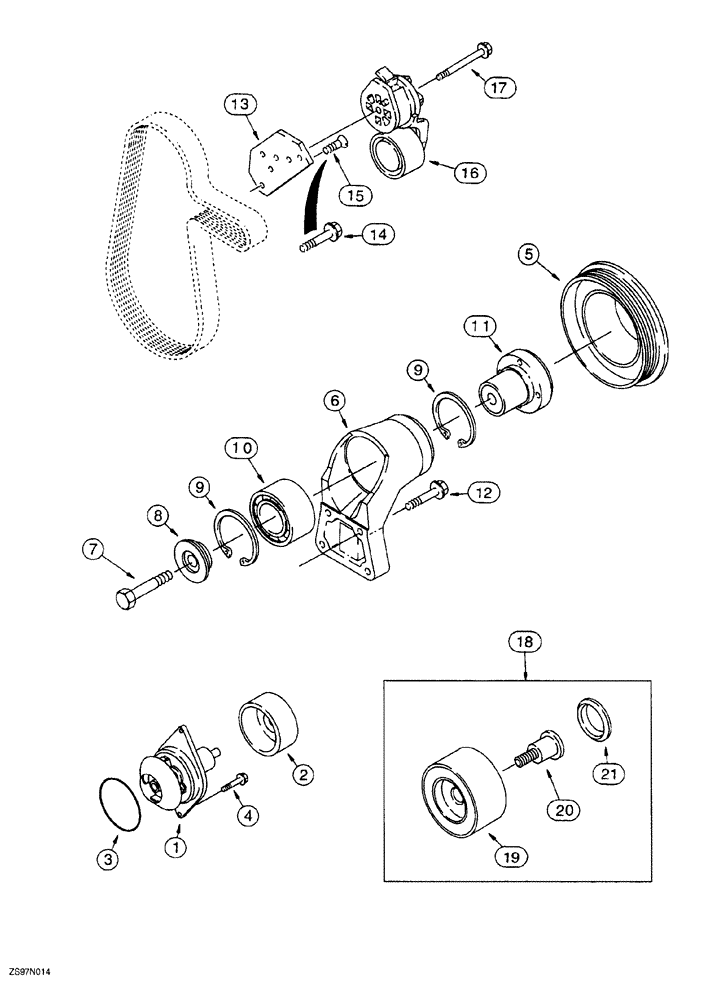

Запчасти Case 650G (2-19A) - WATER PUMP SYSTEM 4T-390 EMISSIONS CERTIFIED ENGINE CRAWLER P.I.N. JJG0216449 AND AFTER (02) - ENGINE

J802970

PUMP, WATER

KIT, Includes: Ref. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

650G, P.I.N. JJG0216449 & Aft.

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

fan, 11 to 1 ratio

1шт.

6

J911922

SUPPORT ASSY.

fan pulley, Includes: Ref. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

8

J923044

RETAINER

fan hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

fan

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

13

J925207

SUPPORT

belt tensioner

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap, Special

2шт.

16

J934817

BELT TENSIONER

belt

1шт.

17

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

Heavy

1шт.

18

A77817

KIT

KIT belt tensioner pulley, used to replace pulley of J934817 belt tensioner, Ref.16, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

PULLEY belt tensioner

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL dust

1шт.
