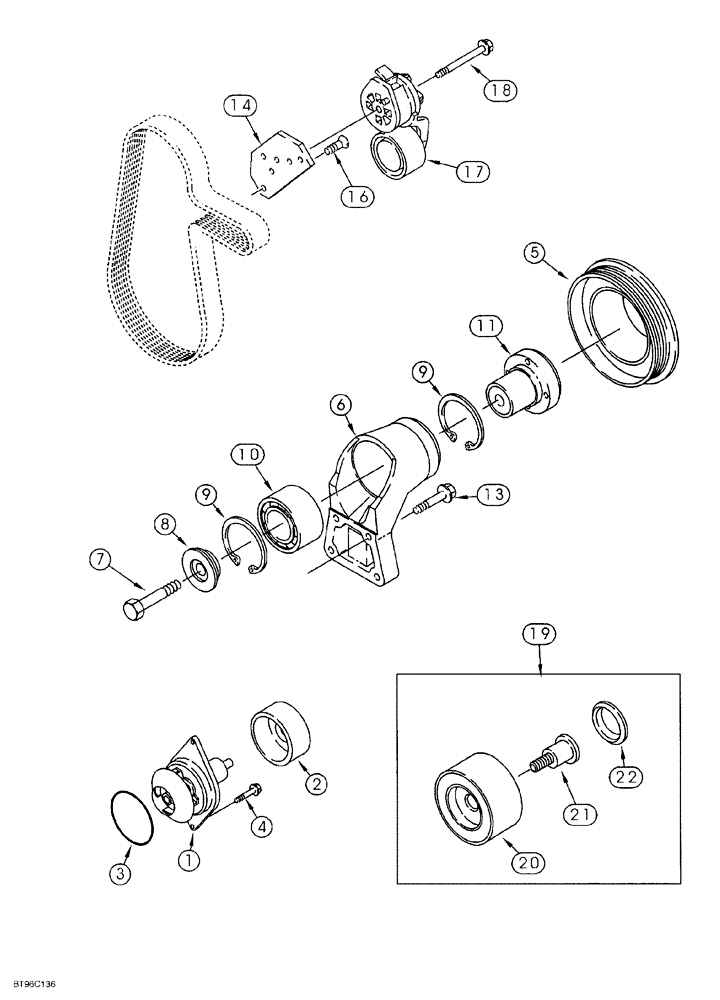

Запчасти Case 650G (2-18) - WATER PUMPS SYSTEM 4T-390 ENGINE PRIOR TO CRAWLER P.I.N JJG0216449 (02) - ENGINE

J802970

PUMP, WATER

KIT, replaces A77703 and J802358, Includes: Ref. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

650G, PRIOR TO P.I.N JJG0216449

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY, water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

fan, 11 to 1 ratio

1шт.

6

J911922

SUPPORT ASSY.

fan pulley, Includes: Ref. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

8

J923044

RETAINER

fan hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

fan

1шт.

13

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

14

J919736

SUPPORT

belt tension

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap, Special

2шт.

17

J934817

BELT TENSIONER

belt, replaces J918944 tensioner

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

Heavy

1шт.

19

A77817

KIT

KIT belt tensioner pulley, used to replace pulley of J934817 belt tensioner, Ref. 17, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

PULLEY belt tensioner

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL dust

1шт.
