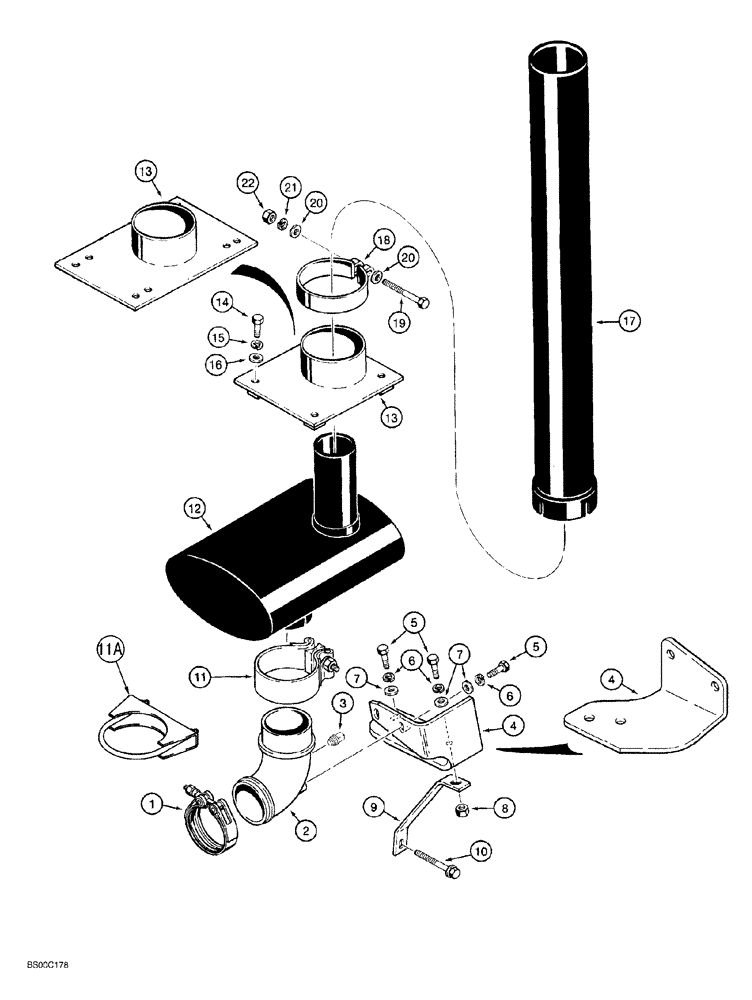

Запчасти Case 650G (2-16) - MUFFLER MOUNTING AND EXHAUST PARTS (02) - ENGINE

1

A170467

CLAMP,72mm ID

includes hardware, tube, at turbocharger

1шт.

2

A173623

ELBOW

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Prior to Crawler P.I.N. JJG0216449, Replaces 221-841

1шт.

3

217-505

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

square, 1/4 inch PT, Crawler P I N JJG0216449 and after

4шт.

4

L126939

SUPPORT

elbow, Prior to Crawler P I N JJG0216449

1шт.

4

291029A1

BRACKET

support, elbow, Crawler P.I.N. JJG0216449 and after

1шт.

5

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

hex, full threads, 10 - 1.5 x 30 mm, Prior to Crawler P.I.N. JJG0216449

5шт.

5

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Crawler P.I.N. JJG0216449 and after

4шт.

6

892-11010

LOCK WASHER,M10

4-5шт.

7

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

Prior to Crawler P.I.N. JJG0216449

5шт.

7

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened, Crawler P.I.N. JJG0216449 and after

4шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

Prior to Crawler P.I.N. JJG0216449

1шт.

9

L115129

SUPPORT

BRACE exhaust bracket, Prior to Crawler P.I.N. JJG0216449

1шт.

10

844-10080

BOLT,Hvy Hex, M10 x 80mm, Cl 8.8

heavy hex flange, 10-1.5 x 80 mm, Prior to Crawler P.I.N. JJG0216449

1шт.

11

L14222

CLAMP,79.25mm ID

includes hardware, muffler to turbocharger, Prior to Crawler P.I.N. JJG0216449

1шт.

11

190981A1

CLAMP,76.2mm ID

band, includes hardware, muffler to turbocharger, Crawler P.I.N. JJG0216449 and after, no longer used, order S65056

1шт.

11a

S65056

CLAMP

includes hardware, muffler to turbocharger, Crawler P.I.N. JJG0216449 and after, replaces 190981A1

1шт.

12

A189478

MUFFLER

exhaust, Prior to Crawler P.I.N. JJG0216449

1шт.

12

302395A1

MUFFLER

exhaust, Crawler P.I.N. JJG0216449 and after, not shown

1шт.

13

R57493

SUPPORT

MOUNT exhaust pipe, Prior to Crawler P.I.N. JJG0216449

1шт.

13

317011A1

PLATE ASSY.

MOUNT exhaust pipe, Crawler P.I.N. JJG0216449 and after, replaces 277051A1

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

Prior to Crawler P.I.N. JJG0216449

4шт.

16

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened, Crawler P.I.N. JJG0216449 and after

4шт.

17

R50444

PIPE

exhaust, Prior to Crawler P.I.N. JJG0216449

1шт.

17

189279A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST Crawler P.I.N. JJG0216449 and after

1шт.

18

R42854

CLAMP

exhaust pipe, Prior to Crawler P.I.N. JJG0216449

1шт.

18

R27699

CLAMP,114.3mm

exhaust pipe, Crawler P.I.N. JJG0216449 and after

1шт.

19

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

20

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

flat, 13/32 x 13/16 x 1/16 inch

2шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

129-770

NUT,3/8"-16, G5

1шт.
