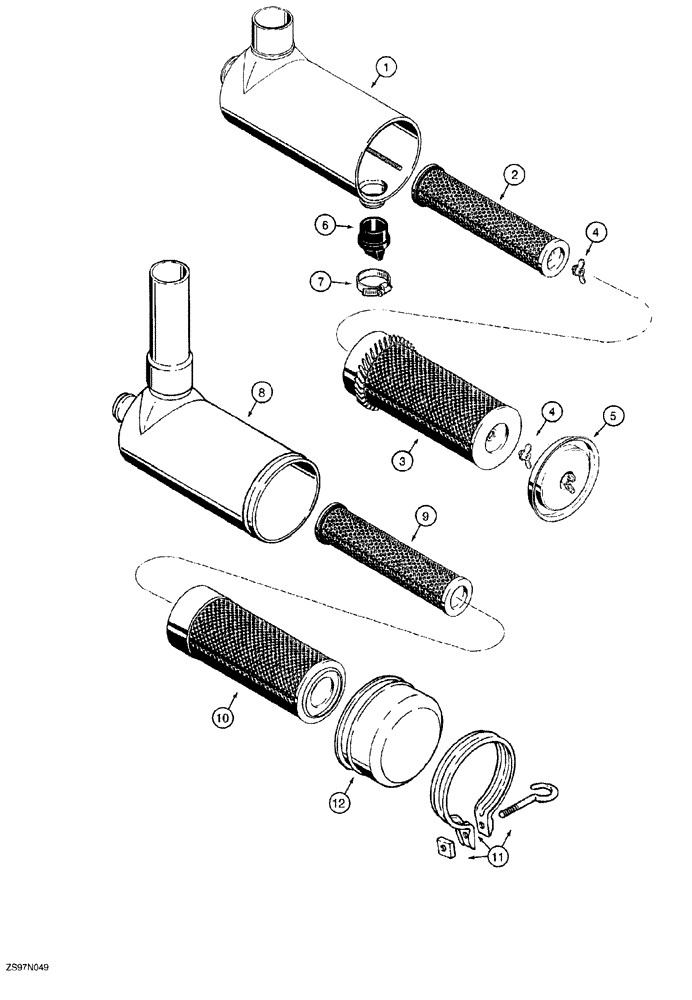

Запчасти Case 650G (2-12) - AIR CLEANER ASSEMBLY (02) - ENGINE

A173852

FILTER ASSY

air cleaner, engine, Prior to Crawler P.I.N. JJG0216449, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY air cleaner, Prior to Crawler P.I.N. JJG0216449

1шт.

2

A47033

AIR FILTER

ELEMENTsecondary, inner, Prior to Crawler P.I.N. JJG0216449

1шт.

3

A47032

AIR FILTER

ELEMENT primary, outer, Prior to Crawler P.I.N. JJG0216449

1шт.

4

D78354

WING NUT

ASSEMBLY, element, Prior to Crawler P.I.N. JJG0216449

2шт.

5

A52419

COVER

end, with wing nut, Prior to Crawler P.I.N. JJG0216449

1шт.

6

S113982

CAP

VALVE dust, rubber, Prior to Crawler P.I.N. JJG0216449

1шт.

7

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

adj., 2-9/16 - 3-1/2 inch dia., not part of air cleaner assembly, order separately, Prior to Crawler P.I.N. JJG0216449

1шт.

226378A1

AIR CLEANER

ASSEMBLY air, engine, Crawler P.I.N. JJG021449 and After, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

BODY air cleaner, Crawler P.I.N. JJG021449 and After

1шт.

9

222422A1

AIR FILTER

ELEMENT, FILTER secondary, inner, Crawler P.I.N. JJG021449 and After

1шт.

10

222421A1

AIR FILTER

primary, outer, Crawler P.I.N. JJG021449 and After

1шт.

11

R21391

CLAMP

band, includes hardware, Crawler P.I.N. JJG021449 and After

1шт.

12

247743A1

FILTER COVER

end cap, air cleaner, Crawler P.I.N. JJG021449 and After

1шт.
