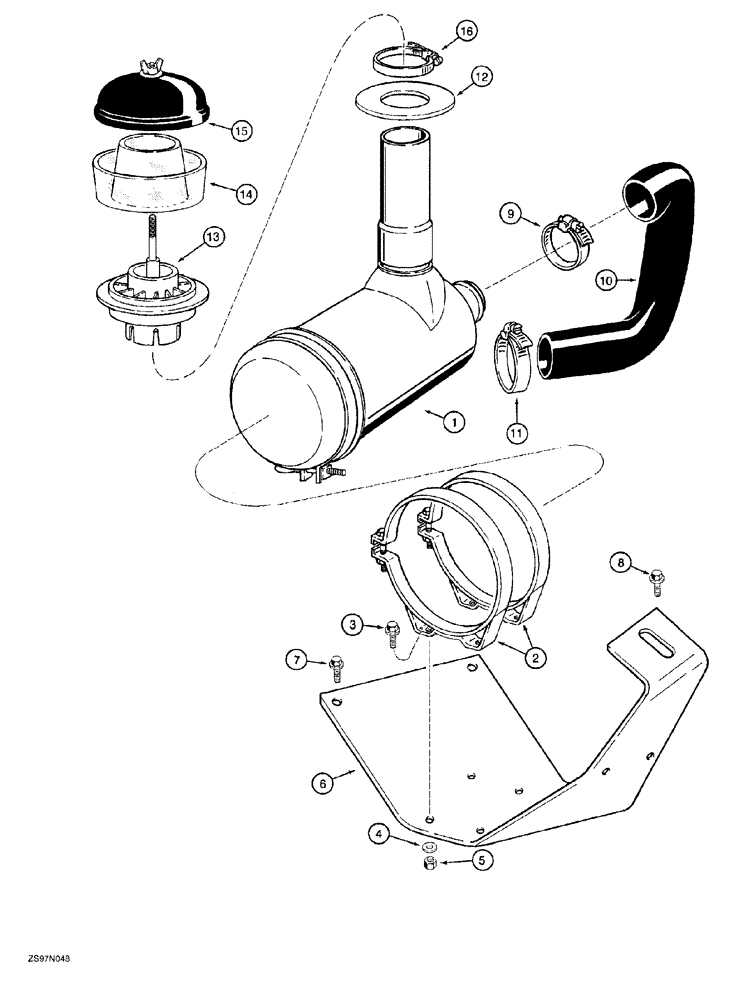

Запчасти Case 650G (2-11A) - AIR CLEANER MOUNTING AND INTAKE PARTS CRAWLER P.I.N. JJG0216449 AND AFTER (02) - ENGINE

1

226378A1

AIR CLEANER

ASSEMBLY, engine, parts list Fig. 2-12

1шт.

2

70973

BRACKET

BAND air cleaner mounting, includes hardware

2шт.

3

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8, if used

4шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used

4шт.

4

492-11038

LOCK WASHER,3/8"

If Used

4шт.

4

492-11031

LOCK WASHER,5/16"

If used

4шт.

5

425-106

NUT,3/8"-16, Cl 5

If used

4шт.

5

425-105

NUT,5/16"-18, G5

If Used

4шт.

6

282219A1

BRACKET

air cleaner mounting

1шт.

7

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

8

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Use with blue Loctite No. 242, see below

1шт.

9

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

adj., 3-1/4 - 4-1/8 inch dia.

1шт.

10

281488A1

INTAKE AIR HOSE,76.00 mm ID, 88.90 mm ID x 225.50 mm, SAE J200

Air cleaner

1шт.

11

214-3256

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm, W/ Liner

adj., 2-3/4 - 3-5/8 inch dia.

1шт.

12

293973A1

SKID/SHOE

PAD air cleaner seal

1шт.

228120A1

PRECLEANER

ASSEMBLY air cleaner, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

BASE precleaner

1шт.

14

277377R1

FILTER BOWL

BOWL precleaner

1шт.

15

A42465

COVER

precleaner

1шт.

16

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Adj.

1шт.

B17577

LOCTITE

No. 242, blue, 6 ml tube

1шт.
