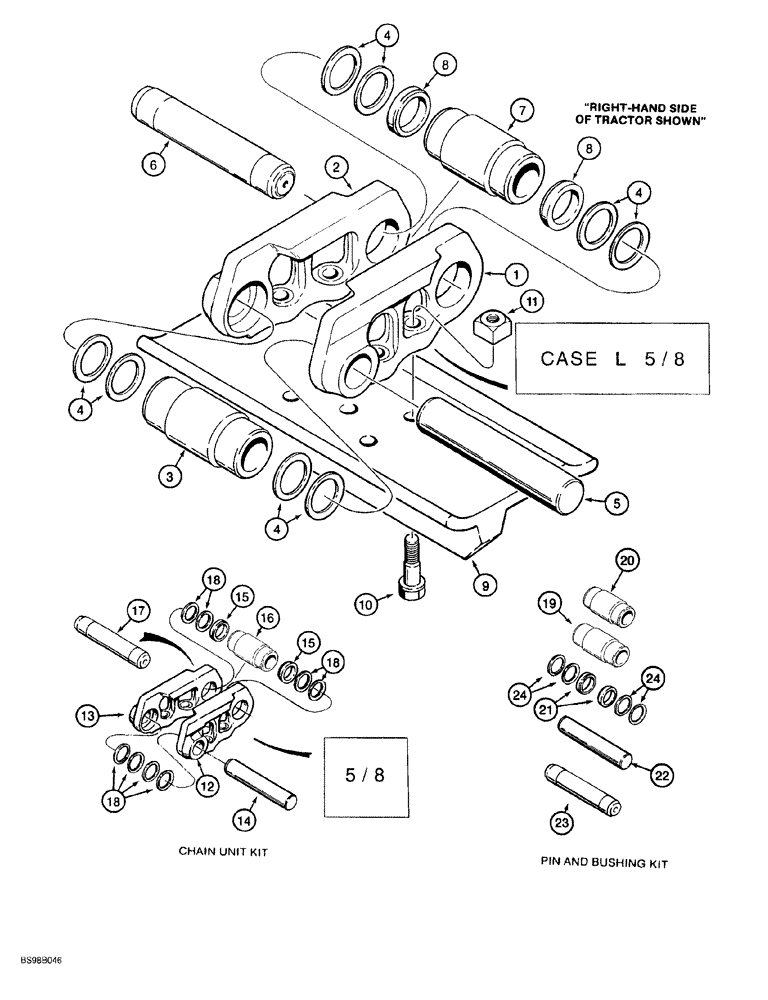

Запчасти Case 650G (5-13A) - SEALED TRACK CHAIN (OPTIONAL) WITH 5/8 INCH MOUNTING HARDWARE (11) - TRACKS/STEERING

300216A1

ASSEMBLY

track, open shoes, 36 unit, 457 mm (18 inch), Includes: Ref. 1 - 11

2шт.

298859A1

ASSEMBLY

CHAIN track, closed shoes, 36 unit, 457 mm (18 inch), Includes: Ref. 1 - 11

2шт.

295211A1

CHAIN (CE)

track, 36 unit, Includes: Ref. 1 - 8

2шт.

1

295178A1

LINK

track, right hand, stamped CASE L 5/8

36шт.

2

295177A1

LINK

track, left hand, stamped CASE L 5/8

36шт.

3

R56517

BUSHING

standard pin

35шт.

4

R50211

WASHER

SPRING Belleville, bushing

144шт.

5

R49792

PIN,33.48mm OD x 183.5mm L

standard

35шт.

6

R54281

PIN,33.41mm OD x 183.5mm L

master

1шт.

7

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

master pin

1шт.

8

R50210

SPACER

master bushing

2шт.

9

295181A1

TRACK SHOE

457 mm (18 inch), with five holes, closed, used with chain assembly 298859A1

72шт.

9a

303471A1

TRACK SHOE

457 mm (1 8 inch), with five holes, 1 bar open, not shown, used with chain assembly 300216A1

72шт.

10

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

hex, special, 5/8 NF x 2-1/8 inch

288шт.

11

R25688

SQUARE NUT

square, special, 5/8 inch NF

288шт.

300214A1

KIT

chain unit, includes instruction sheet, includes standard and master track pins, Includes: Ref. 12 - 18

1шт.

12

295178A1

LINK

track, right hand, stamped CASE L 5/8, chain unit kit, includes standard and master track pins

1шт.

13

295177A1

LINK

track, left hand, stamped CASE L 5/8, chain unit kit, includes standard and master track pins

1шт.

14

R49792

PIN,33.48mm OD x 183.5mm L

standard, chain unit kit, includes standard and master track pins

2шт.

15

R50210

SPACER

master bushing, chain unit kit, includes standard and master track pins

2шт.

16

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

master pin, chain unit kit, includes standard and master track pins

1шт.

17

R54281

PIN,33.41mm OD x 183.5mm L

master, chain unit kit, includes standard and master track pins

1шт.

18

R50211

WASHER

SPRING Belleville, bushing, chain unit kit, includes standard and master track pins

8шт.

R56023

KIT

pin and bushing, includes instruction sheet, kit, services complete track chain, both sides of tractor, Includes: Ref. 19 - 24

1шт.

19

R56517

BUSHING

standard pin, kit, services complete track chain, both sides of tractor

74шт.

20

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

master pin kit, services complete track chain, both sides of tractor

2шт.

21

R50210

SPACER

master bushing and pin kit, services complete track chain, both sides of tractor

4шт.

22

R49792

PIN,33.48mm OD x 183.5mm L

standard and bushing kit, services complete track chain, both sides of tractor

74шт.

23

R54281

PIN,33.41mm OD x 183.5mm L

master, and bushing kit, services complete track chain, both sides of tractor

2шт.

24

R50211

WASHER

SPRING Belleville, bushing and pin kit, services complete track chain, both sides of tractor

304шт.
