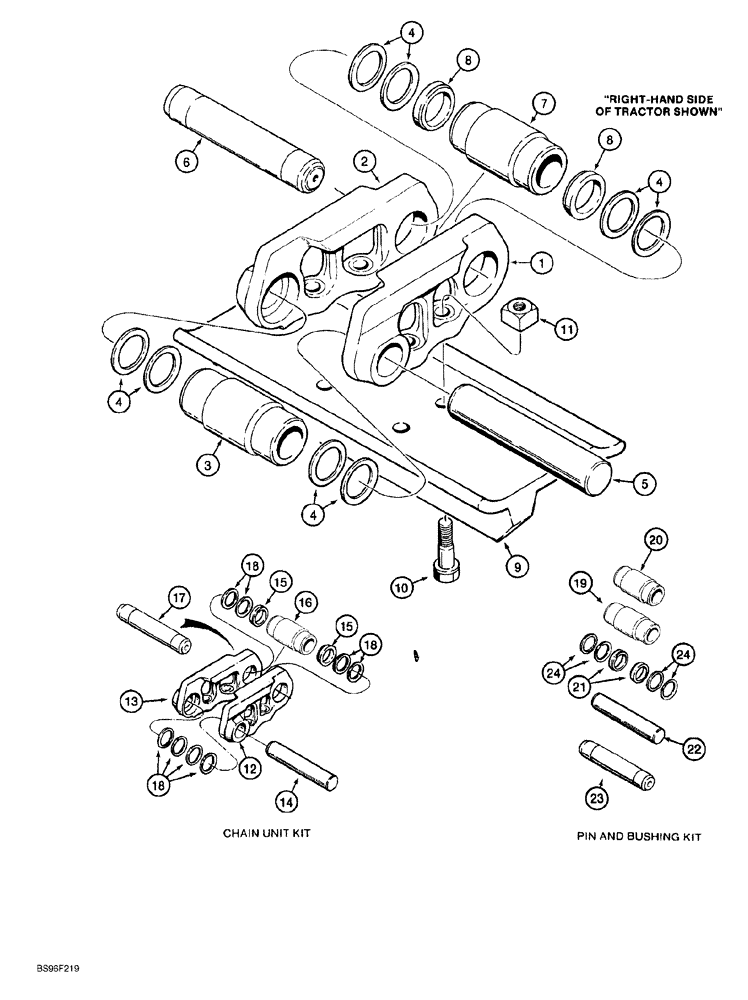

Запчасти Case 650G (5-12) - SEALED TRACK CHAIN (OPTIONAL) WITH 9/16 INCH MOUNTING HARDWARE (11) - TRACKS/STEERING

284795A1

ASSEMBLY

CHAIN track, open shoes, 36 unit, 457, (18 inch), no longer available, order 300216A1, see Fig. 5-13A, Includes: Ref. 1 - 11

2шт.

255152A1

ASSEMBLY

CHAIN track, closed shoes, 36 unit, 457 mm (18 inch), no longer available, order 298859A1, see Fig. 5-13A, Includes: Ref. 1 - 11

2шт.

R57104

CHAIN (CE)

track, 36 unit, Includes: Ref. 1 - 8

2шт.

1

R56490

LINK

track, right hand

36шт.

2

R56489

LINK

track, left hand

36шт.

3

R56517

BUSHING

standard pin

35шт.

4

R50211

WASHER

SPRING Belleville, bushing

144шт.

5

R49792

PIN,33.48mm OD x 183.5mm L

standard

35шт.

6

R54281

PIN,33.41mm OD x 183.5mm L

master

1шт.

7

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

master pin

1шт.

8

R50210

SPACER

master bushing

2шт.

9

R56736

SHOE

track, 406 mm (16 inch)

72шт.

9

R56751

SHOE

track, 457 mm (18 inch), track 1 bar open, used on 284795A1 chain assembly

72шт.

9

R56739

TRACK SHOE

457 mm (18 inch), no longer available, order 178445A1

72шт.

9

178445A1

TRACK SHOE

457 mm (18 inch), used on 255152A1 chain assembly

72шт.

10

D48004

FLANGE BOLT

hex, special, 9/16 NF x 2-1/32 inch

288шт.

11

R57375

SQUARE NUT

square, special, 9/16 NF

288шт.

R56022

CHAIN (CE)

KIT, unit, includes instruction sheet, chain unit kit, includes standard and master track pins, Includes: Ref. 12 - 18

1шт.

12

R56490

LINK

track, right hand, chain unit kit, includes standard and master track pins

1шт.

13

R56489

LINK

track, left hand, chain unit kit, includes standard and master track pins

1шт.

14

R49792

PIN,33.48mm OD x 183.5mm L

standard, chain unit kit, includes standard and master track pins

2шт.

15

R50210

SPACER

master bushing, chain unit kit, includes standard and master track pins

2шт.

16

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

master pin, chain unit kit, includes standard and master track pins

1шт.

17

R54281

PIN,33.41mm OD x 183.5mm L

master, chain unit kit, includes standard and master track pins

1шт.

18

R50211

WASHER

SPRING Belleville, bushing, chain unit kit, includes standard and master track pins

8шт.

R56023

KIT

pin and bushing, includes instruction sheet, kit, services complete track chain, both sides of tractor, Includes: Ref. 19 - 24

1шт.

19

R56517

BUSHING

standard pin and bushing kit, services complete track chain, both sides of tractor

74шт.

20

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

master pin and bushing kit, services complete track chain, both sides of tractor

2шт.

21

R50210

SPACER

master bushing and pin kit, services complete track chain, both sides of tractor

4шт.

22

R49792

PIN,33.48mm OD x 183.5mm L

standard, and bushing kit, services complete track chain, both sides of tractor

74шт.

23

R54281

PIN,33.41mm OD x 183.5mm L

master, and bushing kit, services complete track chain, both sides of tractor

2шт.

24

R50211

WASHER

SPRING Belleville, bushing and pin kit, services complete track chain, both sides of tractor

304шт.
