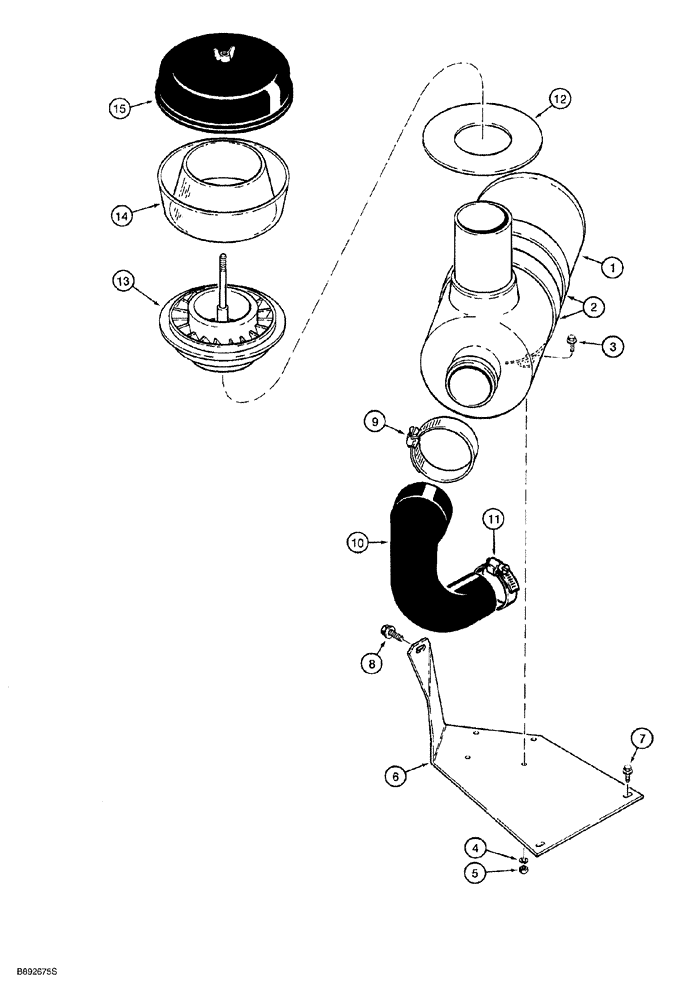

Запчасти Case 650G (2-10) - AIR CLEANER MOUNTING AND INTAKE PARTS PRIOR TO CRAWLER P.I.N JJG0216449 (02) - ENGINE

1

A173852

FILTER ASSY

CLEANER air, engine, parts list Fig. 2-12

1шт.

2

A149780

BAND

CLAMP air cleaner mounting, includes hardware

2шт.

3

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

R56933

SUPPORT

air cleaner mounting

1шт.

7

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

8

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Use with blue Loctite No. 242, see below

1шт.

9

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

adj., 4-1/4 - 5-1/8 inch dia.

1шт.

10

R56932

INTAKE AIR HOSE,76.00 mm ID, 102 mm ID x 243.00 mm, SAE J200

Air cleaner

1шт.

11

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

adj., 3-1/4 - 4-1/8 inch dia.

1шт.

12

S241675

PROTECTOR

PAD air cleaner seal

1шт.

12

A171342

PRECLEANER

ASSEMBLY air cleaner, no longer available, order 258538A1 below

1шт.

12

258538A1

AIR INTAKE

ASSEMBLY air cleaner, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

BASE precleaner

1шт.

14

277377R1

FILTER BOWL

BOWL precleaner

1шт.

15

A42465

COVER

precleaner

1шт.

16

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Adj., Used only 258538A1

1шт.

B17577

LOCTITE

No. 242, blue, 6 ml tube

1шт.
