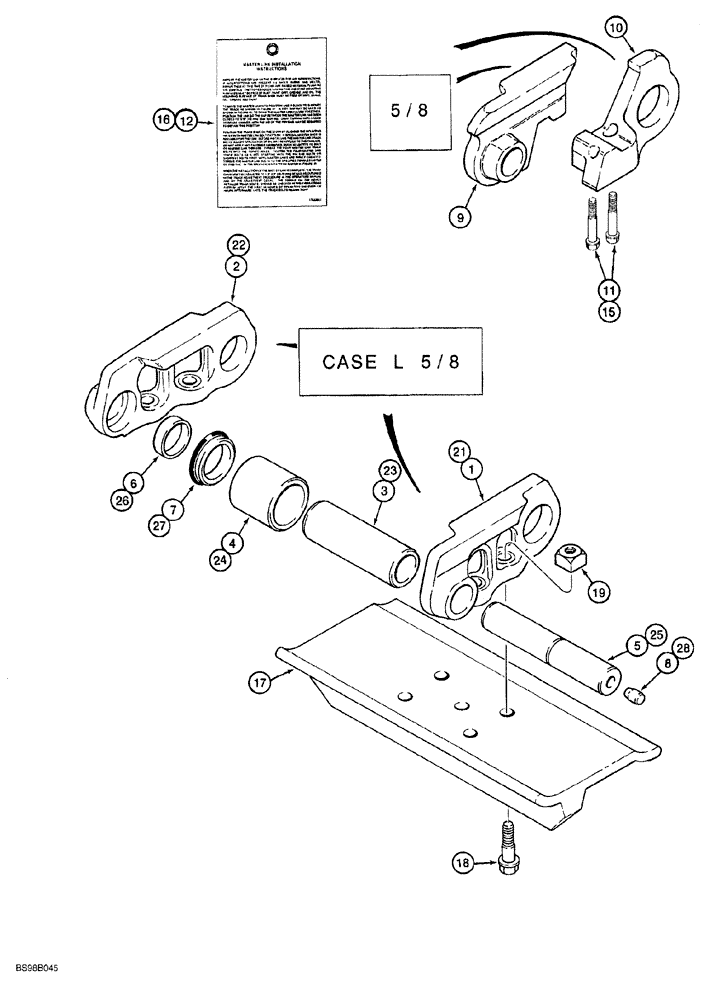

Запчасти Case 650G (5-11K) - EXTENDED LIFE TRACK CHAIN (WITH 5/8 INCH MOUNTING HARDWARE) (11) - TRACKS/STEERING

295195A1

CHAIN (CE)

track, 36 unit, extended life, master link requires 5/8 inch bolts, also order 178328A3 instruction tag, Includes: Ref. 1 - 16

2шт.

304483A1

LINK ASSEMBLY track, Includes: Ref. 1 - 4

1шт.

1

295178A1

LINK

track, right hand, stamped CASE L 5/8

35шт.

2

295177A1

LINK

track, left hand, stamped CASE L 5/8

35шт.

3

114402A1

BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L

track pin

36шт.

4

114400A1

BUSHING

rotating

36шт.

5

R51131

PIN,33.48mm OD x 183.5mm L

track

36шт.

6

R51132

SPACER

seal

72шт.

7

R50830

OIL SEAL

track pin

72шт.

8

R50441

PLUG

track pin

72шт.

299237A1

KIT

master link, right hand, with 5/8 inch bolts, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, right hand, stamped CASE L 5/8

1шт.

10

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, right hand, stamped CASE L 5/8

1шт.

11

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

special, 5/8 NF x 3-1/4 inch

2шт.

12

178328A3

TAG

installation instructions, replaces 178328A2

1шт.

299234A1

KIT

master link, left-hand, with 5/8 inch bolts, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, left hand, not shown, stamped CASE L 5/8

1шт.

14

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, left hand, not shown, stamped CASE L 5/8

1шт.

15

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

special, 5/8 NF x 3-1/4 inch

2шт.

16

178328A3

TAG

installation instructions, replaces 178328A2

1шт.

17

295181A1

TRACK SHOE

457 mm (18 inch), with five holes, closed

72шт.

18

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

hex, special, 5/8 NF x 2-1/8 inch

280шт.

19

R25688

SQUARE NUT

square, special, 5/8 inch NF

280шт.

20

345-140

SEALANT

ADHESIVE rubber, Scotch Grip No. 847, 1 pint can, not shown

1шт.

304484A1

KIT

link, CELT, includes instruction sheet, for extended life track chain, Includes: Ref. 21 - 28

1шт.

304483A1

LINK ASSEMBLY, kit, for extended life track chain, Includes: Ref. 21 - 24

1шт.

21

295178A1

LINK

track, right hand, stamped CASE L 5/8, kit, for extended life track chain

1шт.

22

295177A1

LINK

track, left hand, stamped CASE L 5/8, kit, for extended life track chain

1шт.

23

114402A1

BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L

track pin, link kit for extended life track chain

1шт.

24

114400A1

BUSHING

rotating, link kit for extended life track chain

1шт.

25

R51131

PIN,33.48mm OD x 183.5mm L

track, link kit for extended life track chain

2шт.

26

R51132

SPACER

seal, link kit for extended life track chain

4шт.

27

R50830

OIL SEAL

track pin, link kit for extended life track chain

4шт.

28

R50441

PLUG

track pin, link kit for extended life track chain

2шт.
