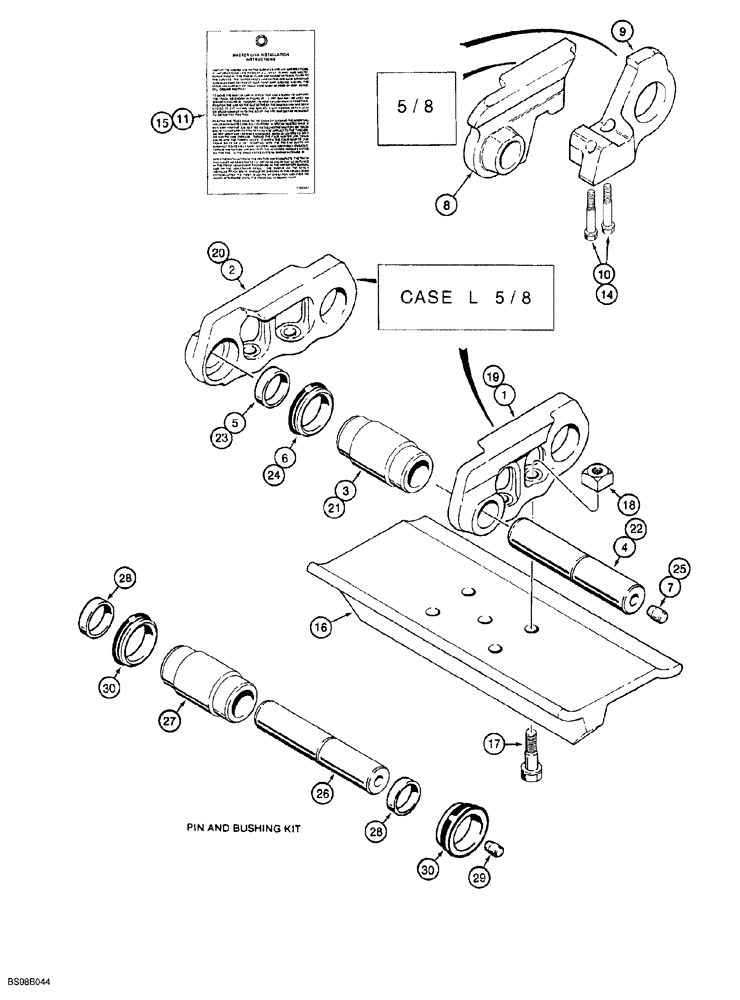

Запчасти Case 650G (5-11G) - CASE LUBRICATED TRACK CHAIN (WITH 5/8 INCH MOUNTING HARDWARE) (11) - TRACKS/STEERING

295203A1

CHAIN (CE)

track, 36 unit, master link requires 5/8 inch bolts, also order 178328A3 instruction tag, Includes: Ref. 1 - 15

2шт.

1

295178A1

LINK

track, right hand, stamped CASE L 5/8

35шт.

Part of CLT Link Kit, P/N 300215A1

1шт.

2

295177A1

LINK

track, left hand, stamped CASE L 5/8

35шт.

Part of CLT Link Kit, P/N 300215A1

1шт.

3

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

track pin

36шт.

Part of CLT Link Kit, P/N 300215A1

1шт.

4

R51131

PIN,33.48mm OD x 183.5mm L

track

36шт.

Part of CLT Link Kit, P/N 300215A1

1шт.

5

R51132

SPACER

seal

72шт.

Part of CLT Link Kit, P/N 300215A1

1шт.

6

R50830

OIL SEAL

track pin

72шт.

Part of CLT Link Kit, P/N 300215A1

1шт.

7

R50441

PLUG

track pin

36шт.

Part of CLT Link Kit, P/N 300215A1

1шт.

299237A1

KIT

master link, right hand, with 5/8 inch bolts, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, right hand, stamped CASE L 5/8

1шт.

9

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, right hand, stamped CASE L 5/8

1шт.

10

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

special, 5/8 NF x 3-1/4 inch

2шт.

11

178328A3

TAG

installation instructions, replaces 178328A2

1шт.

299234A1

KIT

master link, left hand, with 5/8 inch bolts, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, left hand, not shown, stamped CASE L 5/8

1шт.

13

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, left hand, not shown, stamped CASE L 5/8

1шт.

14

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

special, 5/8 NF x 3-1/4 inch

2шт.

15

178328A3

TAG

installation instructions, replaces 178328A2

1шт.

16

295180A1

SHOE

track, 406 mm (16 inch), with five holes, single grouser, closed, if used

72шт.

16

295181A1

TRACK SHOE

457 mm (18 inch), with five holes, single grouser, closed, if used

72шт.

17

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

hex, special, 5/8 NF x 2-1/8 inch

280шт.

18

R25688

SQUARE NUT

square, special, 5/8 inch NF

280шт.

300215A1

KIT

link, CLT, includes instruction sheet, for lubricated track chain, Includes: Ref. 19 - 25

1шт.

302847A1

LINK ASSY.

track, link kit for lubricated track chain, Includes: Ref. 19 - 21

1шт.

19

295178A1

LINK

track, right hand, stamped CASE L 5/8, link kit for lubricated track chain

1шт.

20

295177A1

LINK

track, left hand, stamped CASE L 5/8, link kit for lubricated track chain

1шт.

21

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

track pin, link kit for lubricated track chain

1шт.

22

R51131

PIN,33.48mm OD x 183.5mm L

track, link kit for lubricated track chain

2шт.

23

R51132

SPACER

seal, link kit for lubricated track chain

4шт.

24

R50830

OIL SEAL

track pin, link kit for lubricated track chain

4шт.

25

R50441

PLUG

track pin, link kit for lubricated track chain

2шт.

R56024

SET

KIT pin and bushing, includes instruction sheet, services complete track chain for both sides of tractor, Includes: Ref. 26 - 31

1шт.

26

R51131

PIN,33.48mm OD x 183.5mm L

track, pin and bushing kit

76шт.

27

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

track pin and bushing kit

76шт.

28

R51132

SPACER

seal, pin and bushing kit

152шт.

29

R50441

PLUG

track pin and bushing kit

76шт.

30

R50830

OIL SEAL

track pin and bushing kit

152шт.

31

345-140

SEALANT

ADHESIVE rubber, Scotch Grip No. 847, 1 pint can, not shown, pin and bushing kit

1шт.
