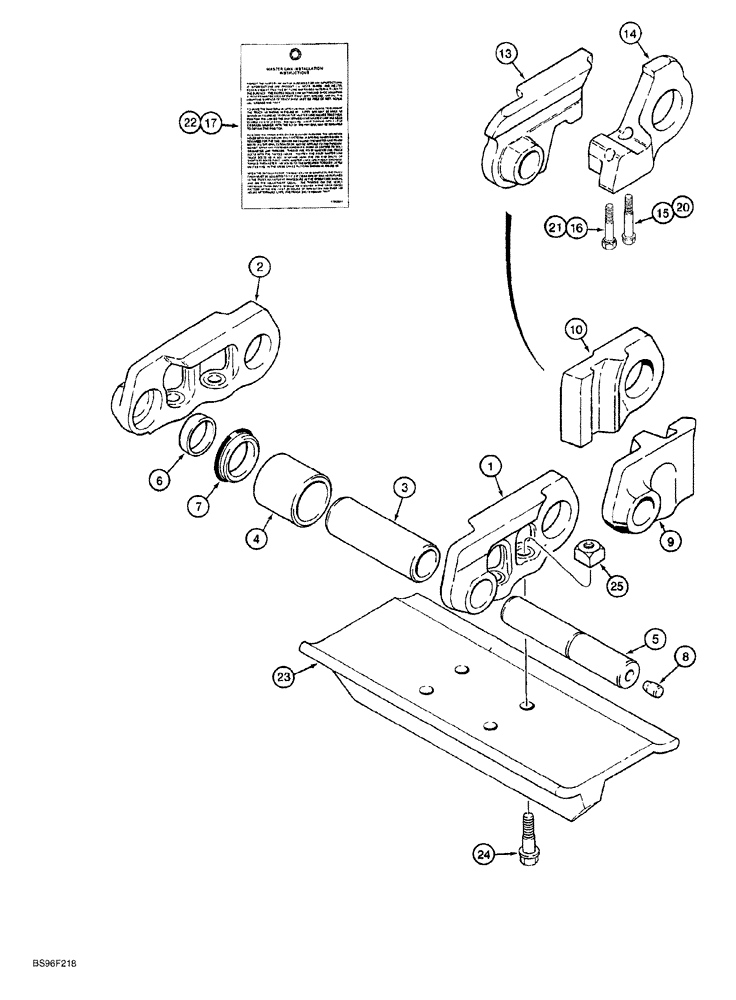

Запчасти Case 650G (5-11C) - EXTENDED LIFE TRACK CHAIN (WITH 9/16 INCH MOUNTING HARDWARE) (11) - TRACKS/STEERING

221809A1

CHAIN (CE)

track, 36 unit, extended life, master link with one bolt hole, no longer available, order 197419A1, Includes: Ref. 1 -22

2шт.

197419A1

TRACK CHAIN

ASSEMBLY, 36 unit, extended life, master link with two bolt holes, Includes: Ref. 1 - 22

2шт.

1

R56490

LINK

track, right hand

35шт.

Part of CELT link kit 248116A1

1шт.

2

R56489

LINK

track, left hand

35шт.

Part of CELT link kit 248116A1

1шт.

3

114402A1

BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L

track pin

36шт.

Part of CELT link kit 248116A1

1шт.

4

114400A1

BUSHING

rotating

36шт.

Part of CELT link kit 248116A1

1шт.

5

R51131

PIN,33.48mm OD x 183.5mm L

track

36шт.

Part of CELT link kit 248116A1

1шт.

6

R51132

SPACER

seal

72шт.

Part of CELT link kit 248116A1

1шт.

7

R50830

OIL SEAL

track pin

72шт.

Part of CELT link kit 248116A1

1шт.

8

R50441

PLUG

track pin

72шт.

Part of CELT link kit 248116A1

1шт.

R57798

LINK

ASSEMBLY master, righthand, 221809A1 chain assembly, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

LINK track, master, with one bolt hole, fits over track pin on outside of regular track link, right hand

1шт.

10

NSS

NOT SOLD SEPARAT

LINK track, master, with one bolt hole, fits over bushing on inside of regular track link, right hand

1шт.

R57797

LINK ASSY.

master, left hand, 221809A1 chain assembly, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

LINK track, master, with one bolt hole, fits over track pin on outside of regular track link, left hand

1шт.

12

NSS

NOT SOLD SEPARAT

LINK track, master, with one bolt hole, fits over bushing on inside of regular track link, left hand

1шт.

199941A1

LINK

KIT master, right hand, 197419A1 chain assembly, Includes: Ref. 13 - 17

1шт.

129019A1

LINK

ASSEMBLY master, right hand, with two bolt holes13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, right hand

1шт.

14

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, right hand

1шт.

15

R44189

BOLT

special, 83 mm (3-1/4 inch) long

2шт.

16

284195A1

BOLT,9/16" - 18 x 2 7/8"

special, 3-1/16 inch (78 mm) long, replaces 133796A1

2шт.

17

178328A3

TAG

installation instructions, replaces 178328A2

1шт.

199940A1

LINK

KIT master, left hand, 197419A1 chain assembly, Includes: Ref. 18 - 22

1шт.

129018A1

LINK ASSY.

master, left hand, with two bolt holes, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, left hand, not shown

1шт.

19

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, left hand, not shown

1шт.

20

R44189

BOLT

special, 83 mm (3-1/4 inch) long

2шт.

21

284195A1

BOLT,9/16" - 18 x 2 7/8"

special, 3-1/16 inch (78 mm) long, replaces 133796A1

2шт.

22

178328A3

TAG

installation instructions, replaces 178328A2

1шт.

248116A1

KIT link, CELT, includes Refs. 1 through 8 for one track link assembly and instruction sheet

1шт.

23

R56739

TRACK SHOE

track, 457 mm (18 inch), no longer available, order 178445A1

72шт.

23

178445A1

TRACK SHOE

457 mm (18 inch)

72шт.

24

D48004

FLANGE BOLT

hex, special, 9/16 NF x 2-1/32 inch

280шт.

25

R57375

SQUARE NUT

square, special, 9/16 NF

280шт.

26

345-140

SEALANT

ADHESIVE rubber, Scotch Grip No. 847, 1 pint can, not shown

1шт.
