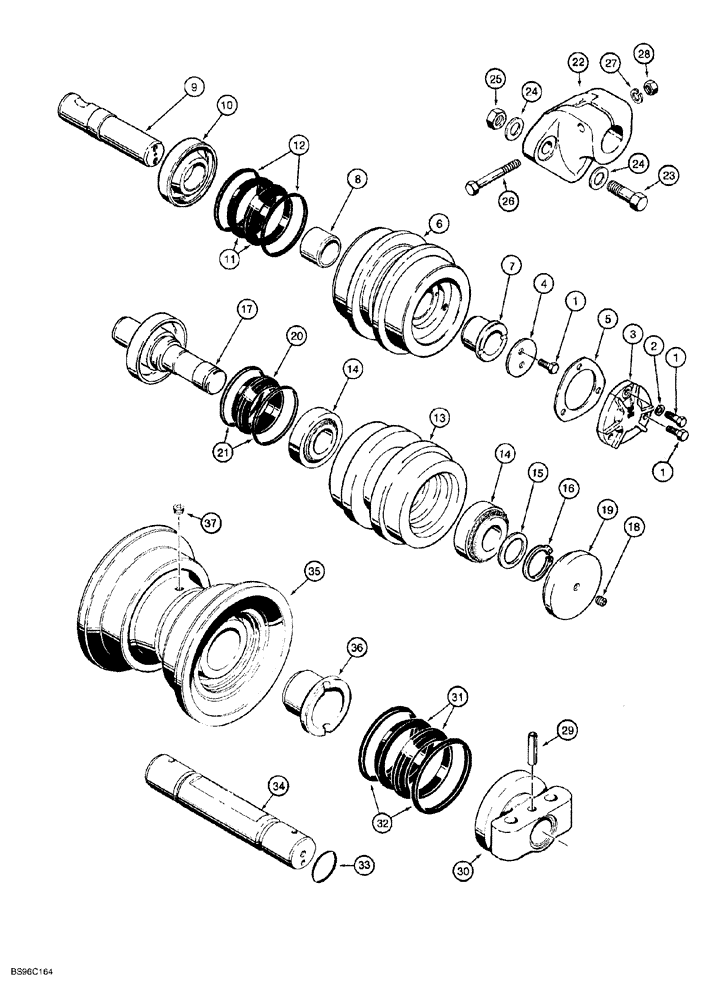

Запчасти Case 650G (5-06) - TRACK ROLLER ASSEMBLIES AND CARRIER ROLLER MOUNTING (11) - TRACKS/STEERING

R33965

ROLLER

ASSEMBLY, carrier, models prior to extended life track, no longer available, order 198941A1 roller assembly, , Includes: Ref. 1 - 12 and Ref. 13 - 21 below, carrier roller assemblies and mounting

2шт.

1

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Carrier roller assemblies and mounting

5шт.

2

D32117

COPPER WASHER

Carrier roller assemblies and mounting

1шт.

3

R33959

CYLINDER END CAP

carrier roller, carrier roller assemblies and mounting

1шт.

4

R33960

PLATE

retainer, carrier roller assemblies and mounting

1шт.

5

R33964

GASKET

cover, carrier roller assemblies and mounting

1шт.

6

NSS

NOT SOLD SEPARAT

HUB roller, carrier roller assemblies and mounting

1шт.

7

R33951

BUSHING

roller, with flange, carrier roller assemblies and mounting

1шт.

8

R33958

BUSHING

roller, carrier roller assemblies and mounting

1шт.

R33969

SHAFT

ASSEMBLY carrier roller assemblies and mounting, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT, carrier roller assemblies and mounting

1шт.

10

R33962

RETAINER

seal, carrier roller assemblies and mounting

1шт.

R33607

SEAL

ASSEMBLY face, carrier roller assemblies and mounting, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL rubber, carrier roller assemblies and mounting

2шт.

12

N6847

O-RING,75mm ID x 8mm Width

face seal, carrier roller assemblies and mounting

2шт.

198941A1

ROLLER ASSY.

carrier, models with extended life track and after, carrier roller assemblies and mounting, Includes: Ref. 13 - 21

2шт.

13

NSS

NOT SOLD SEPARAT

HUB, carrier roller assemblies and mounting

1шт.

14

NSS

NOT SOLD SEPARAT

BEARING tapered roller, carrier roller assemblies and mounting

2шт.

15

NSS

NOT SOLD SEPARAT

SPACER roller, carrier roller assemblies and mounting

1шт.

16

NSS

NOT SOLD SEPARAT

RING external heavy retaining, No. 40, carrier roller assemblies and mounting

1шт.

17

NSS

NOT SOLD SEPARAT

SHAFT, carrier roller assemblies and mounting

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG hex socket, carrier roller assemblies and mounting

1шт.

19

NSS

NOT SOLD SEPARAT

COVER end, use with No. 601 Loctite, Ref. 28, carrier roller assemblies and mounting

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY, face, carrier roller assemblies and mounting, Includes: Ref. 21

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING face seal, carrier roller assemblies and mounting

2шт.

22

D45485

BRACKET

mounting, carrier roller assemblies and mounting

2шт.

23

113-2714

LOCK BOLT,Locking, 3/4"-10 x 2", G8

(Replaces 326-2714) Carrier roller assemblies and mounting

4шт.

24

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch, carrier roller assemblies and mounting

8шт.

25

231-41112

LOCK NUT,3/4"-10, GB

Carrier roller assemblies and mounting

4шт.

26

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

hex, 1/2 NC x 4-1/4 inch, grade 8, carrier roller assemblies and mounting

2шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

If used, carrier roller assemblies and mounting

2шт.

27

R24323

WASHER

flat, special, if used, carrier roller assemblies and mounting

2шт.

28

425-108

NUT,1/2" - 13, Gr 5

If used, Carrier roller assemblies and mounting

2шт.

28

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC, if used, carrier roller assemblies and mounting

2шт.

28a

B17069

LOCTITE

Hi Strength, No. 601, 2 oz. (50 ml), not shown, carrier roller assemblies and mounting

1шт.

R56593

SHIFTER ROLLER

ASSEMBLY track, R56593 track roller assembly, Includes: Ref. 29 - 37

10шт.

29

R33563

ROLL PIN

roll, shaft retaining, R56593 track roller assembly

2шт.

30

R33560

BUSHING

CAP track roller, with mounting block, R56593 track roller assembly

2шт.

S113075

SEAL

face, R56593 track roller assembly, Includes: Ref. 31 and 32

2шт.

31

NSS

NOT SOLD SEPARAT

SEAL rubber, R56593 track roller assembly

2шт.

32

N6846

O-RING,75.7mm ID x 9.5mm Width

oil seal, R56593 track roller assembly

2шт.

33

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

R56593 track roller assembly

2шт.

34

R33561

SHAFT

roller, R56593 track roller assembly

1шт.

34

R56594

HUB ASSY.

roller, no longer available, order R56593, R56593 track roller assembly, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

HUB roller, R56593 track roller assembly

1шт.

36

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

flanged, R56593 track roller assembly

2шт.

37

R33557

PLUG

hex socket, R56593 track roller assembly

1шт.
