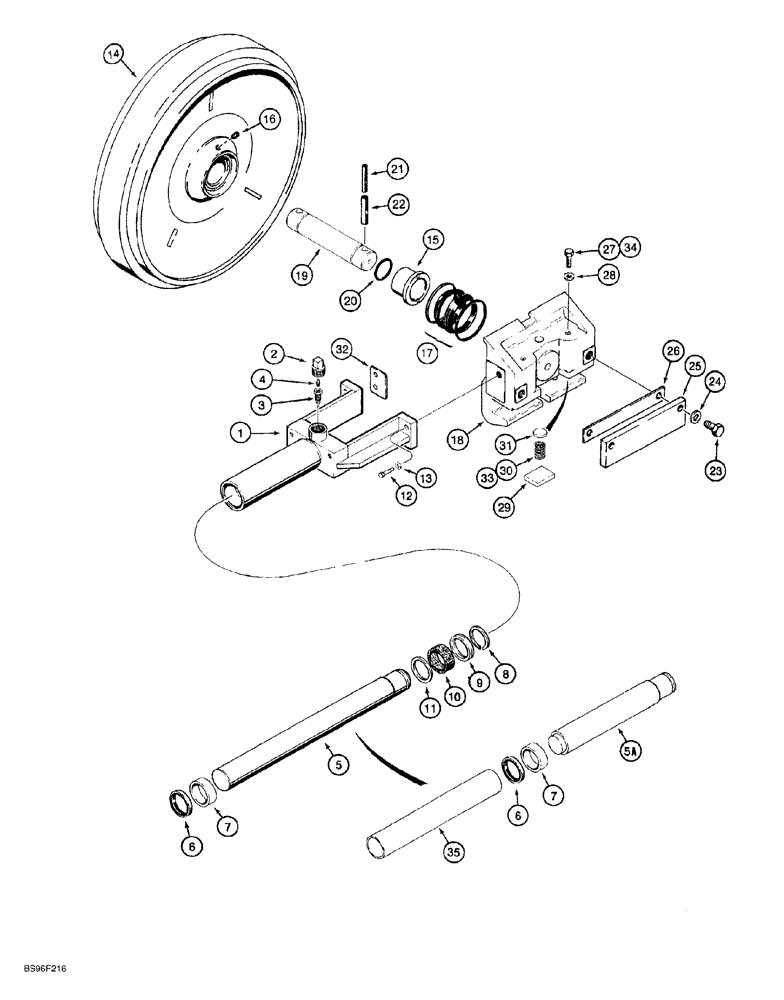

Запчасти Case 650G (5-04) - TRACK ADJUSTER AND IDLER ASSEMBLIES (11) - TRACKS/STEERING

R57098

SADDLE ASSY.

ADJUSTER, track, no longer available, order 129162A1 and Ref. 35, 232068A1, Includes: Ref. 1 - 11

2шт.

129162A1

SHOCK ABSORBER

ADJUSTER ASSEMBLY, track, Includes: Ref. 1 - 11

2шт.

1

R31976

YOKE

UNIVERSAL JOINT YOKE track adjuster

1шт.

2

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

3

D35287

CHECK VALVE,5/8" - 18

check

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

R57098 adjuster assembly

1шт.

5

R57099

PISTON

ROD, 498 mm (19-5/8 inch) long, R57098 adjuster assembly

1шт.

5a

129161A1

PISTON

ROD, 316 mm (12-7/16 inch) long, 129162A1 adjuster assembly

1шт.

6

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

WIPER piston rod

1шт.

7

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

wear

1шт.

8

101-11212

SNAP RING,#212, 1.997", Ext

1шт.

9

R25706

SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk

U-cup

1шт.

10

R25663

BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L

seal, backup

1шт.

11

R30202

RING,54.101mm ID x 65.1mm OD x 5.08mm Thk

backup

1шт.

12

113-2448

LOCK BOLT,Locking, 1/2"-13 x 1 1/2", G8

4шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

103384A1

FRONT IDLER

ASSEMBLY track, Includes: Ref. 14 - 22

2шт.

14

NSS

NOT SOLD SEPARAT

HUB idler

1шт.

15

103391A1

BUSHING,60.26mm ID x 68mm OD x 46mm L

idler hub

2шт.

16

R33557

PLUG

hex socket

1шт.

17

S116825

SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk

SEAL ASSEMBLY face, includes two metal rings and two seals

2шт.

18

R58799

SUPPORT

idler assembly

2шт.

19

103390A1

SHAFT

idler assembly

1шт.

20

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

21

838-51090

PIN,M10 x 90, Coiled

roll, 13 x 36 mm

2шт.

22

838-51690

LOCK PIN,M16 x 90, Slotted

roll, 16 x 90 mm

2шт.

23

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

24

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

8шт.

25

R45570

PLATE

guide

4шт.

26

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD)

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used with Ref.30, R58621 spring

8шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Used with Ref. 30, R58621 spring

8шт.

29

106919A1

SPACER

PLATE wear

8шт.

30

R58621

SPRING

recoil, open coil idler support, no longer available, order Refs. 33, 188866A1 spring, and 34, 413-618, bolt

8шт.

31

R33245

SPRING SEAT

8шт.

32

R37875

SHIM,0.813mm Thk

(.032"), Track adjuster, if used

1шт.

33

188866A1

SHOCK ABSORBER

sealed rubber coated

8шт.

34

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Used with Ref. 33, 188866A1, Spring

8шт.

35

232068A1

TUBE,60.3 mm OD

spacer, if used

1шт.
