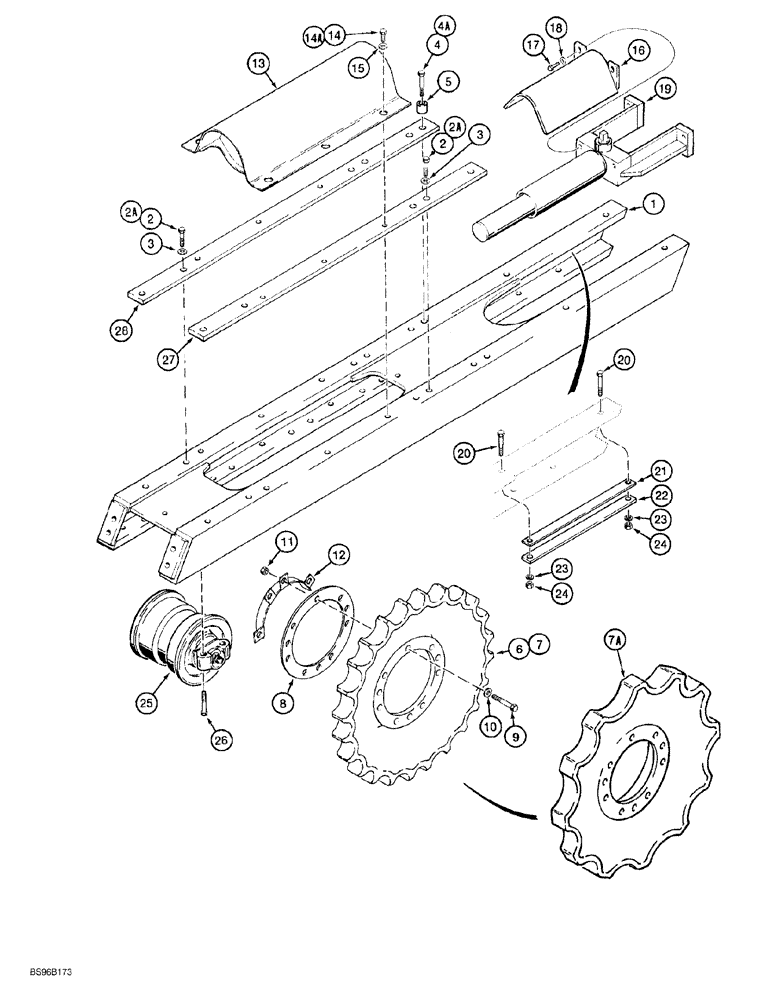

Запчасти Case 650G (5-02) - TRACK FRAMES AND RELATED PARTS (RIGHT-HAND TRACK SHOWN IN ILLUSTRATION) (11) - TRACKS/STEERING

1

107005A1

FRAME

track

2шт.

2

113-2714

LOCK BOLT,Locking, 3/4"-10 x 2", G8

If used

12шт.

2a

113-2709

LOCK BOLT,Locking, 3/8"-10 x 2 1/2", G8

BOLT - hex. 3/4 NC x 2-1/2 inch, Models with extended life track

12шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

12шт.

4

113-2719

LOCK BOLT,Locking, 3/4"-10 x 3", G8

Forward leg of main frame to track frame, inner bolts, both sides, if used

8шт.

4a

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

Forward leg of main frame to track frame, inner bolts, both sides, models with extended life track

8шт.

5

R30398

SPACER

SPACER forward leg of main frame to track frame, inner bolts, both sides

8шт.

6

R56464

DRIVE SPROCKET

23 teeth, 10 bolt holes, standard

2шт.

7

R56508

DRIVE SPROCKET

23 teeth, 10 bolt holes, relieved option, not shown

2шт.

7a

188262A1

SPROCKET ASSY.

12 teeth, models with extended life track

2шт.

8

R46160

SHIM,.032" Thk

Sprocket

1шт.

9

R27954

BOLT

special, 3/4 NC x 3 inch, if used

20шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

20шт.

11

232-41112

NUT,3/4"-10, GC

20шт.

12

117702A1

GUARD

seal, final drive, if used

4шт.

13

127609A1

HOUSING

recoil

2шт.

14

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

If used

12шт.

14a

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch, models with extended life track

12шт.

15

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

flat, 21/32 x 1-5/16 x 5/32 inch, hardened

12шт.

16

R57604

GUARD

adjuster, 360 mm long

2шт.

17

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

19

REF

INSTRUCTION

ADJUSTER ASSEMBLY, track, for correct assembly and components see Fig. 5-4

2шт.

20

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

21

CASR32491

SHIM

SHIM idler, below track frame

1шт.

22

R32465

BAR

PLATE wear, idler, lower

4шт.

23

492-11062

BEARING WASHER,5/8"

8шт.

24

425-1010

NUT,5/8"-11, G5

8шт.

25

R56593

SHIFTER ROLLER

ASSEMBLY track, parts list Fig. 5-6

10шт.

26

113-2707

LOCK BOLT,Locking, 3/4"-10 x 3", G5

40шт.

27

116457A1

BAR

outer spacer, models with extended life track

2шт.

28

116456A1

BAR

inner spacer, models with extended life track

2шт.
