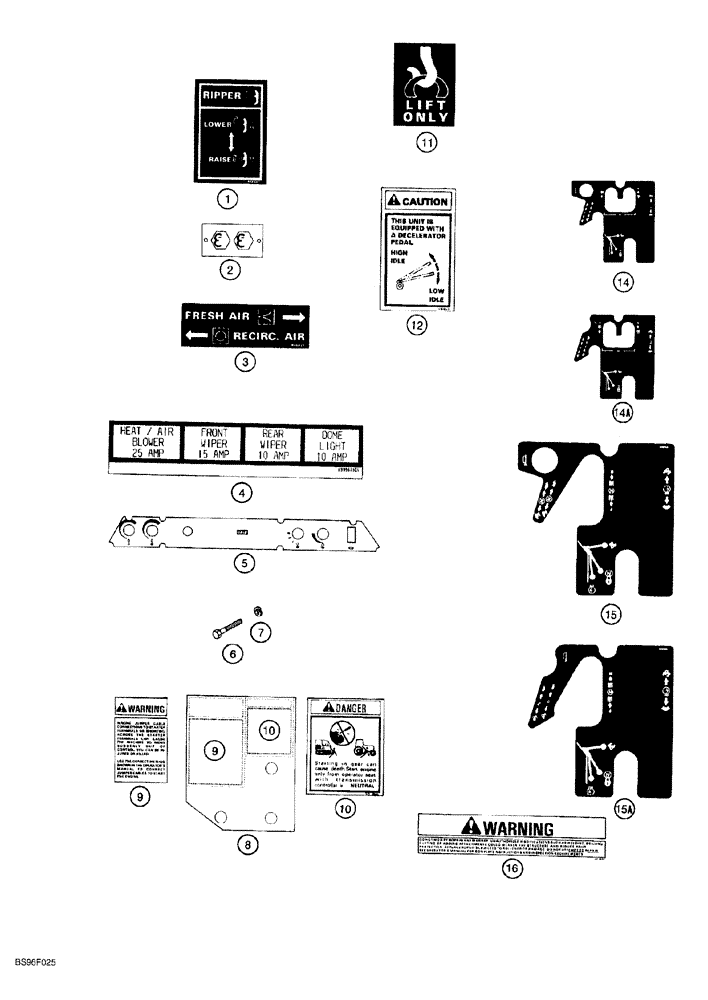

Запчасти Case 650G (9-84) - DECALS (09) - CHASSIS/ATTACHMENTS

1

R58447

DECAL

ripper control pattern, used on models with brown trim

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

1

321-4185

DECAL

ripper control pattern, used on models with gray trim

1шт.

2

1999820C1

EEC Mark of Conformity, if used

1шт.

3

R46825

DECAL

Fresh Air, Recirc. Air, cab models only

1шт.

4

1999671C1

DECAL

Heat/Air Blower, front wiper, rear wiper, dome lamp fuses, cab models only

1шт.

5

1999646C1

DECAL

cab control panel

1шт.

6

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

2шт.

7

892-11012

LOCK WASHER,M12

2шт.

8

109696A1

LARGE PLATE

PLATE, LARGE decal mounting

1шт.

9

321-6872

DECAL

Warning, wrong jumper cable connections to starter terminals

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

10

321-7040

DANGER DECAL

Starting in gear can cause death

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

11

321-3587

DECAL

lift only, if used

4шт.

12

101638A1

DECAL

Caution, this unit is equipped with a decelerator pedal, if used

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

14

R58572

DECAL

crawler controls, forward-reverse, neutral start lock and engine speed, used on models with brown trim, if used

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

14a

178506A1

DECAL

crawler controls, forward-reverse, neutral start lock and engine speed, used on models with gray trim, if used

1шт.

15

101639A1

DECAL

crawler controls, forward-neutral-reverse, models with linear controls, used on models with brown trim, if used

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

15a

178498A1

DECAL

crawler controls, forward-neutral-reverse, models with linear controls, used on models with gray trim, if used

1шт.

16

321-4192

DECAL

Warning, do not modify ROPS, orange, replaces yellow decal

1шт.

101748A1

KIT

decal, used on models with brown trim only, includes Refs. 1, 9, 10, 12, 14 and 15, and on Fig. 9-82, no longer available, order components separately

1шт.
