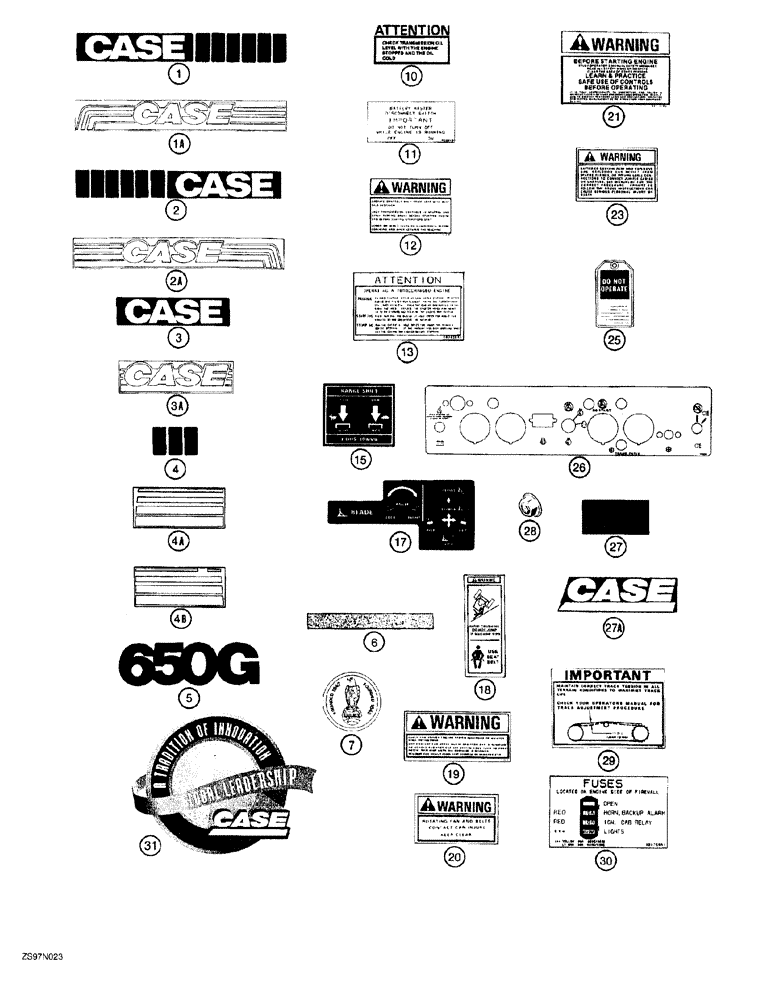

Запчасти Case 650G (9-82) - DECALS (09) - CHASSIS/ATTACHMENTS

1

R48496

DECAL

Case, with treads, left hand, 152 mm (6 inch), includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

1a

187852A1

DECAL

Case, with stripes, left hand

1шт.

2

R48495

DECAL

Case, with treads, right hand, 152 mm (6 inch), includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

2a

187853A1

DECAL

Case, with stripes, right hand

1шт.

3

R48489

DECAL

Case, 152 mm (6 inch), used on models with brown trim, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

3a

187851A1

DECAL

Case, with stripes, rear, used on models with gray trim

1шт.

4

139703A1

DECAL

treadmarks, 152 mm (6 inch), includes decal kit 101748A1

2шт.

Part of Decal Kit, P/N 101748A1

1шт.

4a

187849A1

DECAL

stripes, left hand

1шт.

4b

187850A1

DECAL

stripes, right hand

1шт.

5

132682A1

DECAL

650G, model number, used on models with brown trim, includes decal kit 101748A1

2шт.

Part of Decal Kit, P/N 101748A1

1шт.

5

178499A1

DECAL

650G, model number, used on models with gray trim

2шт.

6

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Includes decal kit 101748A1

2шт.

Part of Decal Kit, P/N 101748A1

1шт.

7

A180055

CAP ASSY.

INSERT Case Globe and Eagle, if used, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

10

R50495

DECAL

Attention, check the transmission oil level, includes decal kit 101748A1

2шт.

Part of Decal Kit, P/N 101748A1

1шт.

11

R58448

DECAL

battery master disconnect, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

12

321-4188

DECAL

Warning, operate controls only from seat, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

13

102436A1

DECAL

Attention, operating turbocharged engine, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

15

R58391

DECAL

range shift pattern, used on models with brown trim, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

15

178502A1

DECAL

range shift pattern, used on models with gray trim

1шт.

17

R58571

DECAL

dozer blade control pattern, lift, angle and tilt, used on models with brown trim, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

17

178505A1

DECAL

dozer blade control pattern, lift, angle and tilt, used on models with gray trim

1шт.

18

321-7030

WARNING DECAL

Do Not Jump - Use Seat Belt, Incl. decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

19

321-6672

DECAL

Warning, check and service cooling system, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

20

321-3596

DECAL

Warning, rotating fan and belts, includes decal kit 101748A1

3шт.

Part of Decal Kit, P/N 101748A1

1шт.

21

321-3705

DECAL

Warning, before starting engine, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

22

133962A1

DECAL

master maintenance schedule, not shown, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

23

321-6714

DECAL

Warning, batteries contain acid and explosive gas, includes decal kit 101748A1

2шт.

Part of Decal Kit, P/N 101748A1

1шт.

25

321-4614

TAG

TAG do not operate, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

26

R58270

DECAL

instrument panel, brown, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

26

178504A1

DECAL

instrument panel, black

1шт.

27

321-4739

EMBLEM

used on models with brown trim

1шт.

27a

186989A1

EMBLEM

EMBLEM Case, used on models with gray trim

1шт.

28

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Push on type

2шт.

29

R57776

DECAL

Important, maintain correct track tension, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

30

101759A1

DECAL

fuses, includes decal kit 101748A1

1шт.

Part of Decal Kit, P/N 101748A1

1шт.

31

279386A1

DECAL

a tradition of innovation, global leadership, no longer used, has no replacement

2шт.

101748A1

KIT

decal, used on models with brown trim only, includes Refs. 1, 2, 3, 4, 5, 6, 7, 10, 11, 12, 13, 15, 17, 18, 19, 20, 21, 22, 23, 25, 26, 29, and 30, and on Fig. 9-84, no longer available, order components separately

1шт.
